Inspection Procedure
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

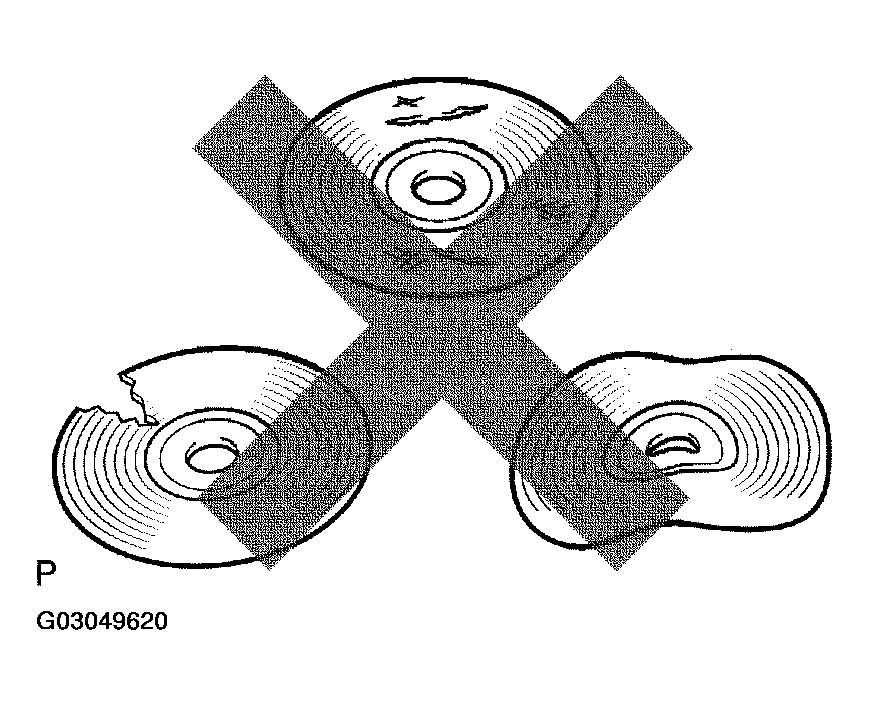

- CHECK MAP DISC
- Check that the map disc is not deformed or cracked.
OK: No deformations or cracks appear on the map disc.
- NG: REPLACE MAP DISC
- OK: Go to Next Step.
- Check that the map disc is not deformed or cracked.
- SET DESTINATION
- Set another destination and check if the system can calculate the route correctly.
OK: Route can be correctly calculated.
- OK: NORMAL OPERATION
- NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
- Set another destination and check if the system can calculate the route correctly.
