Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSY - RADIO AND NAVIGATION ASSY)

Disconnect the connectors from the radio and navigation assy R5 and combination meter assy C7.

Measure the resistance according to the value(s) in SPECIFIED CONDITION .

Standard:

SPECIFIED CONDITION

Tester connection	Condition	Specified condition
SPD - C7-36	Always	Below 1 Ω
SPD - Body ground	Always	10 kΩ or higher

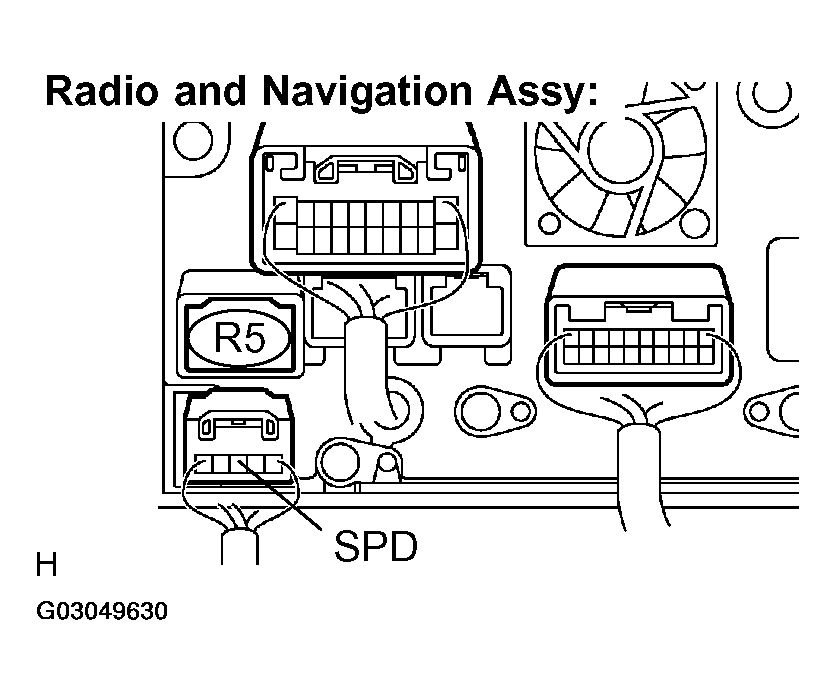

Fig 1: Identifying Radio & Navigation Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

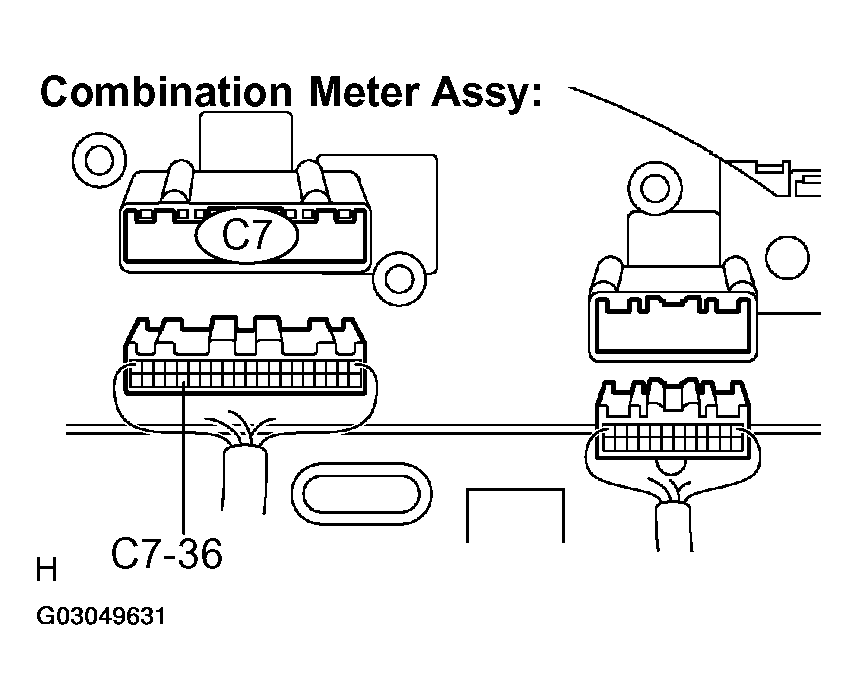

Fig 2: Identifying Combination Meter Assy

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to Next Step.

INSPECT COMBINATION METER ASSY
1. Connect the combination meter assy connector C7.
2. Measure the voltage.
  1. Move the shift lever to the neutral position.
  2. Jack up either one of the front wheels.
  3. Turn the ignition switch to the ON position.
  4. Measure the voltage between terminal C7-36 and body ground of the combination meter assy when the front wheels are turned slowly.

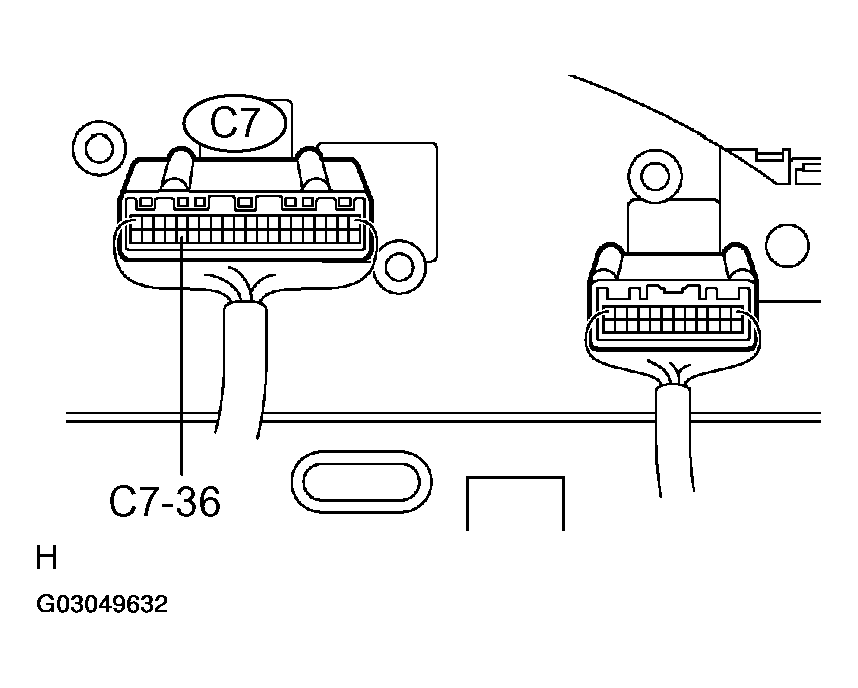

    Fig 3: Measuring Voltage Between Terminal C7-36 & Body Ground
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  OK: Voltage is pulsed as shown Fig 4 .

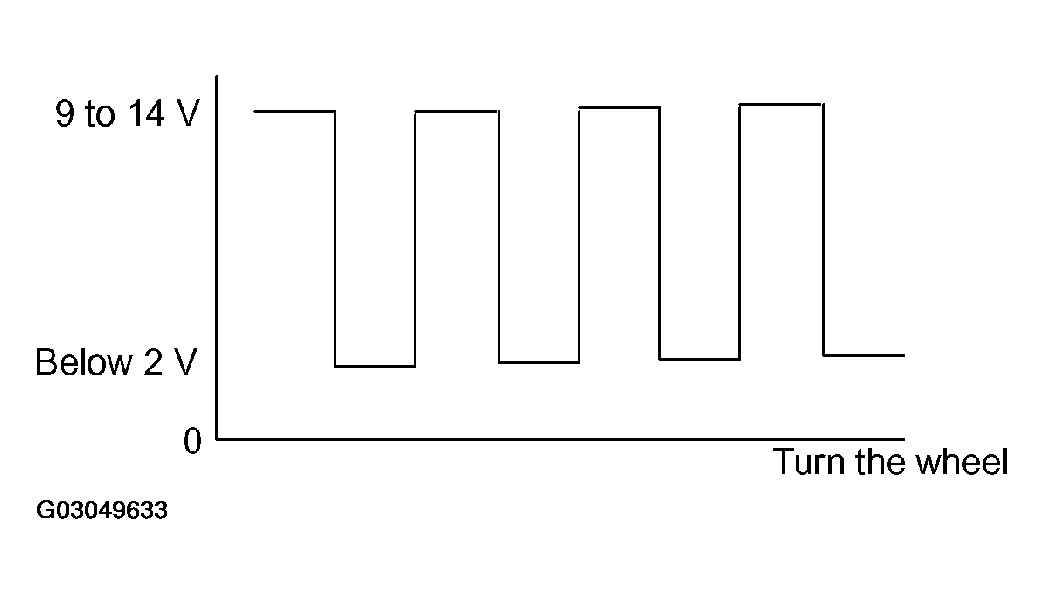

  Fig 4: Voltage Graph
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: GO TO COMBINATION METER SYSTEM (SEE PRECAUTION )
2. OK: REPLACE RADIO AND NAVIGATION ASSY (SEE REPLACEMENT )
