Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

RADIO AND NAVIGATION ASSY

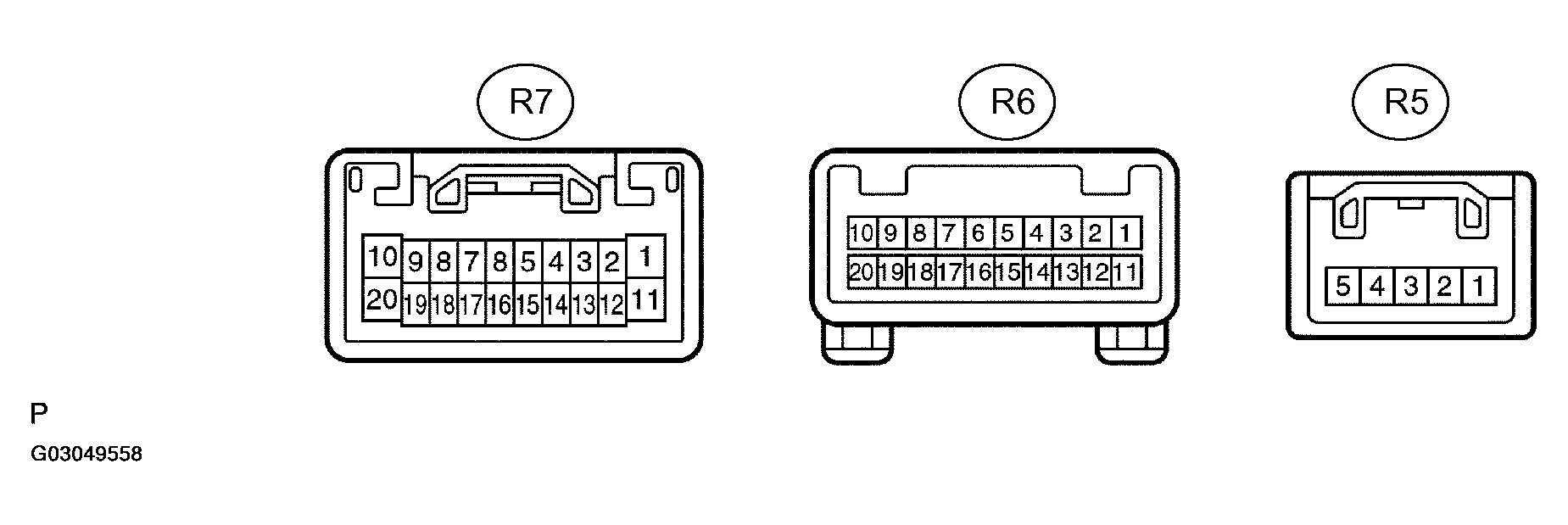

Fig 1: Radio & Navigation Assy Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Terminal Symbol Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY

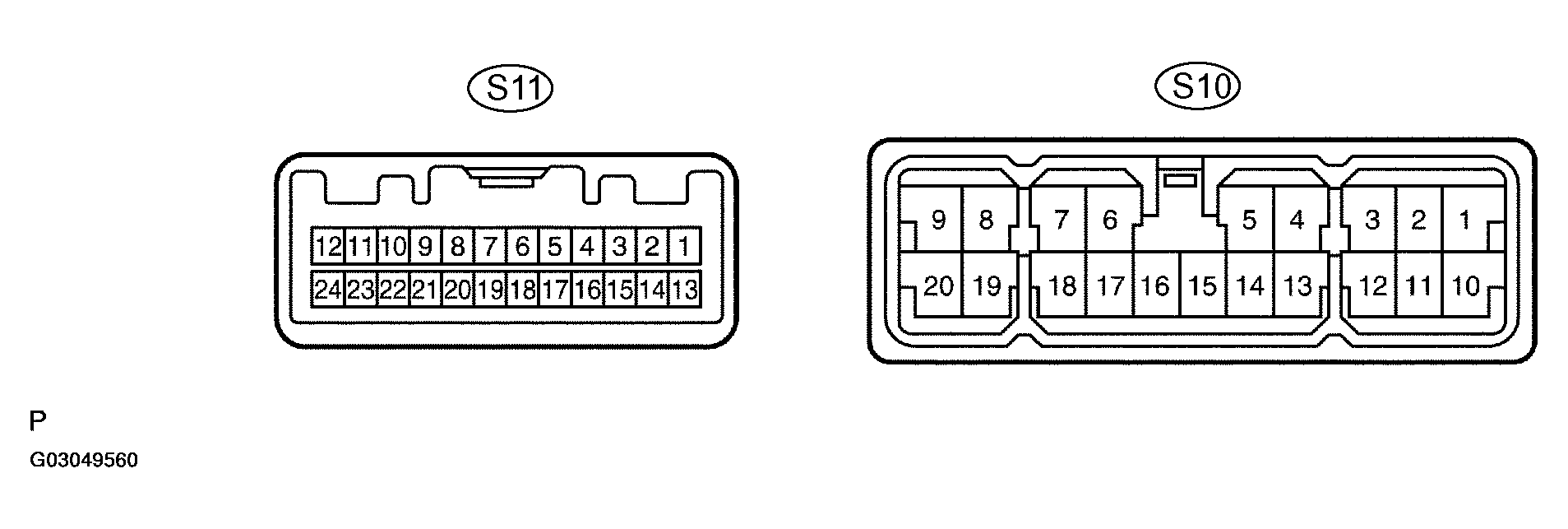

Fig 3: Identifying Stereo Component Amplifier Assy Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

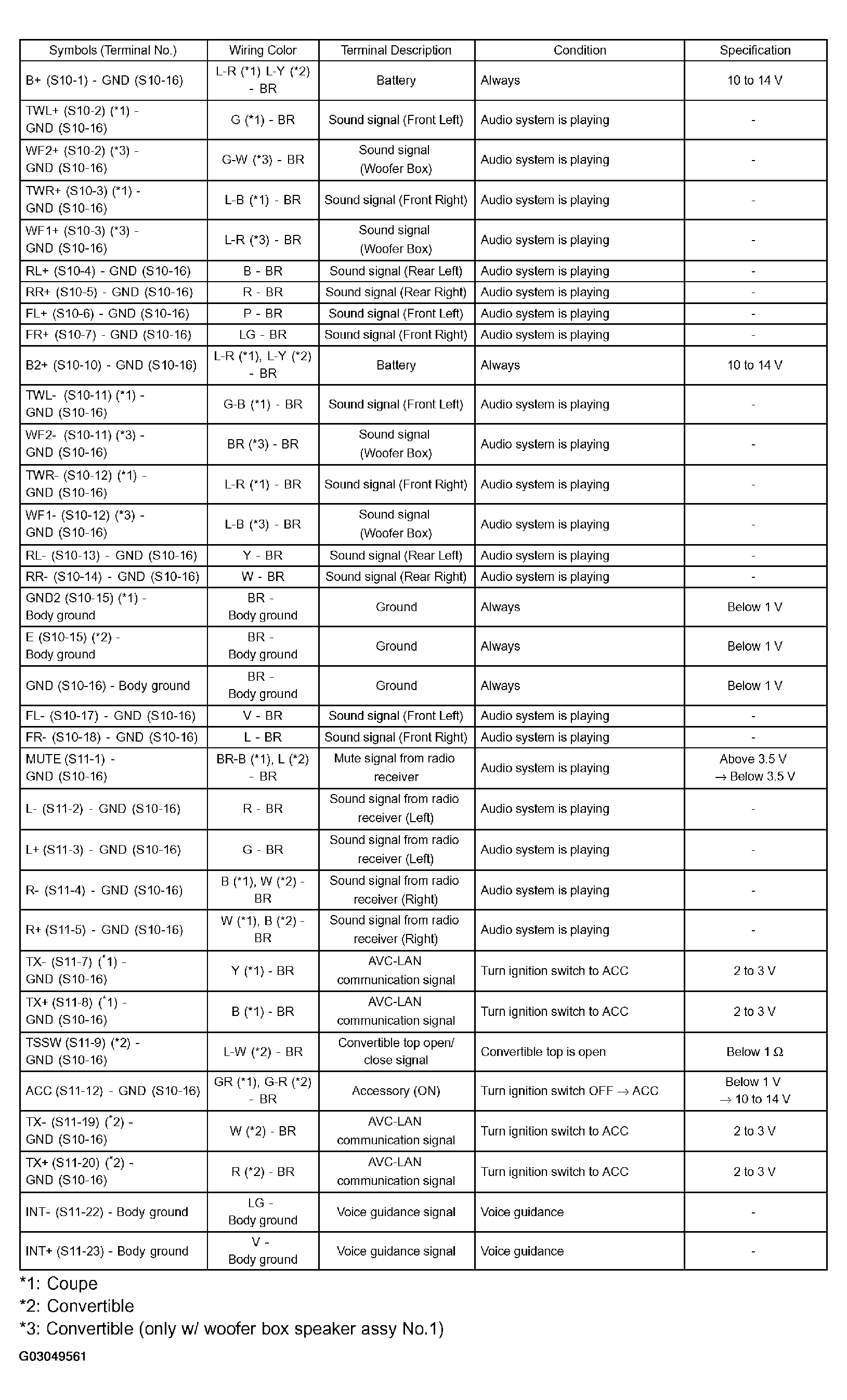

Fig 4: Stereo Component Amplifier Assy Terminal Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
