Circuit Description
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

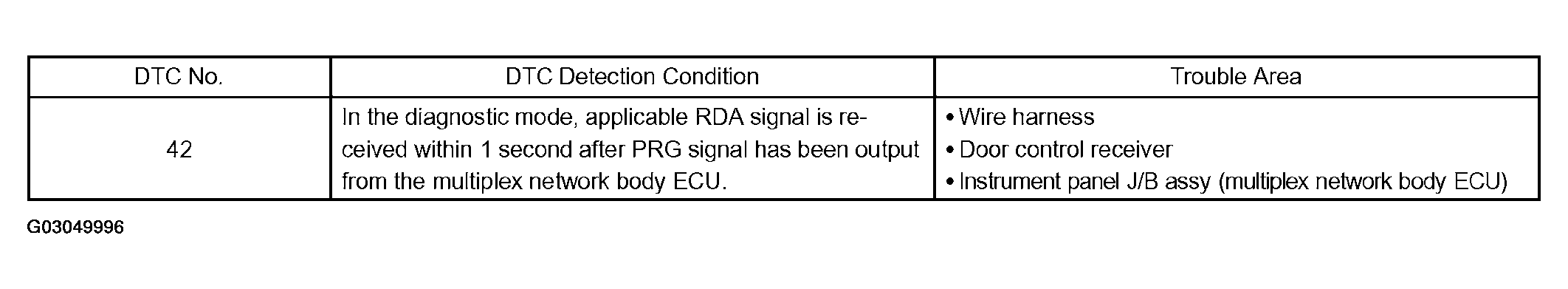

The door control receiver receives signals from the transmitter and sends these signals to the multiplex network body ECU. This DTC is output when, after the multiplex network body ECU outputs a PRG signal, a RDA signal is not input to the door control receiver within 1 second.
