Ecu Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

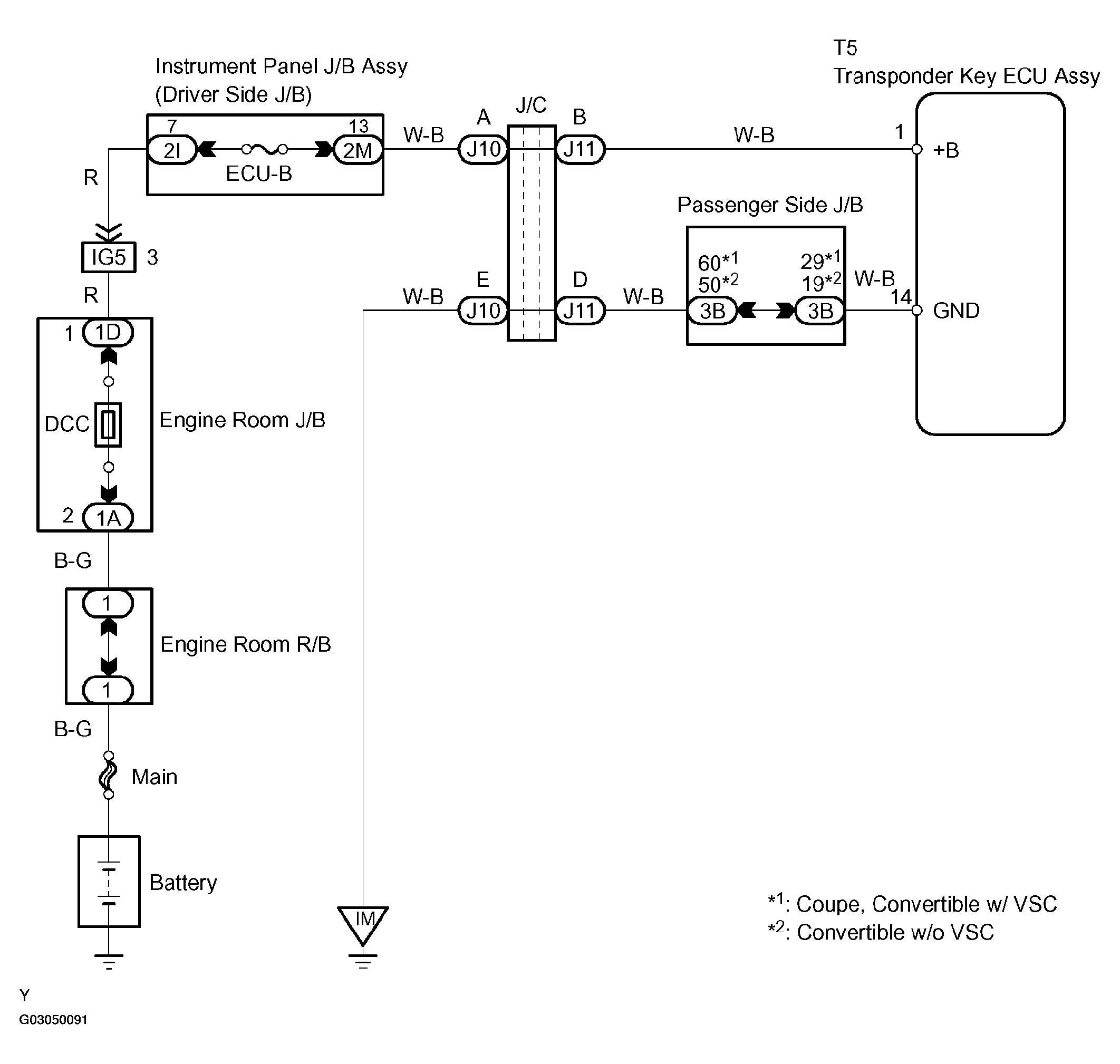

Fig 1: ECU Power Source Wiring Diagram
G03050091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
