Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (ECM - BATTERY)
    1. Turn the ignition switch off.
    2. Disconnect the E5 connector of the ECM.

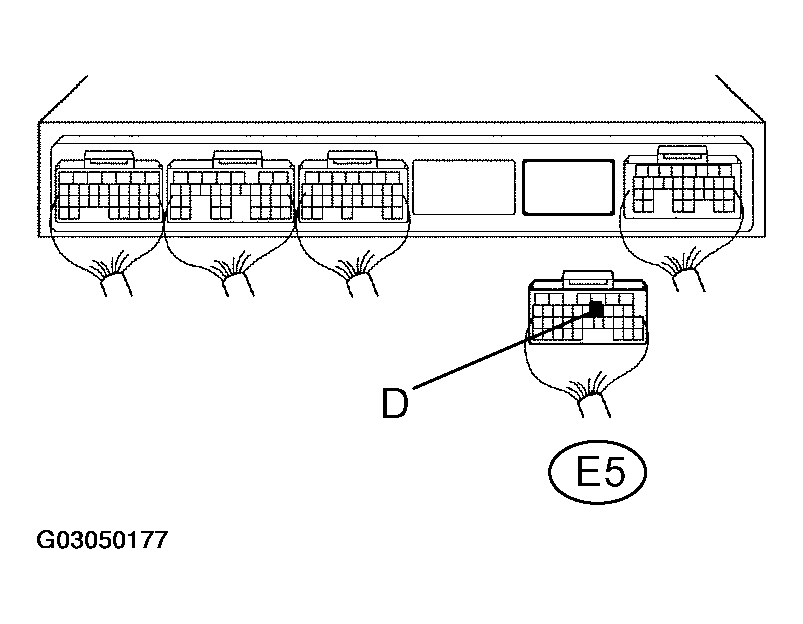

      Fig 1: Disconnecting E5 Connector Of ECM
      G03050174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the ignition switch to the ON position.
    4. Measure the voltage according to the value(s) in the table below.

      Standard:

      CONNECTOR SPECIFICATION

      Tester connection Clutch Pedal condition Specification
      D (E5-10) - Body ground Depressed Below 1 V
      D (E5-10) - Body ground Released 10 to 14 V
    1. NG : GO TO STEP 2
    2. OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )
  2. INSPECT CLUTCH SWITCH ASSY
    1. Turn the ignition switch off.
    2. Disconnect the clutch switch C12 connector.

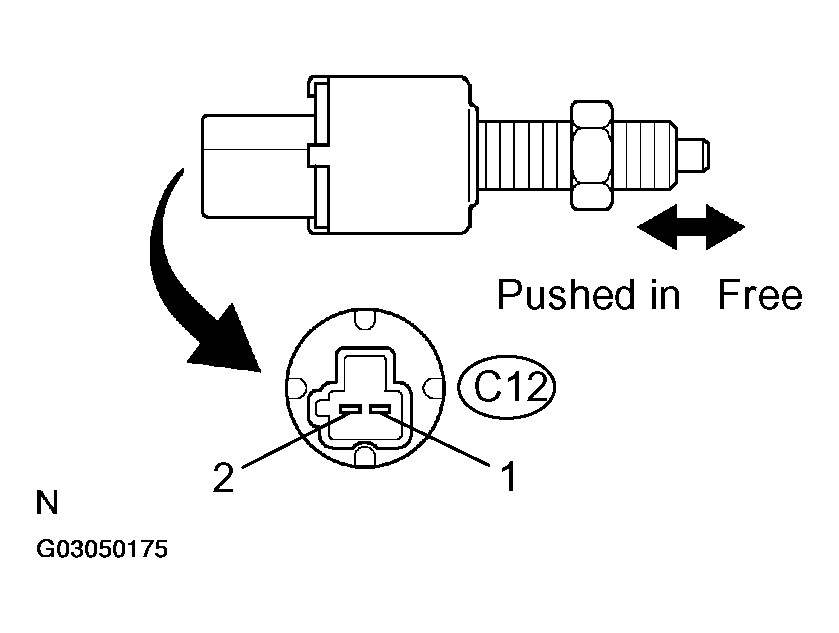

      Fig 2: Disconnecting Clutch Switch C12 Connector
      G03050175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard:

      CONNECTOR SPECIFICATION

      Tester connection Condition /Specification
      C12-1 - C12-2 Switch pin free (Clutch pedal depressed) 10 kΩ or higher
      C12-1 - C12-2 Switch pin pushed in (Clutch pedal released) Below 1 Ω
    1. NG : REPLACE CLUTCH SWITCH ASSY (SEE  REPLACEMENT  )
    2. OK : Go to next step
  3. CHECK HARNESS AND CONNECTOR (CLUTCH SWITCH ASSY - ECM)
    1. Measure the resistance according to the value(s) in the table below.

      Standard:

      CONNECTOR SPECIFICATION

      Tester connection Condition Specification
      C12-2 - D (E5-10) Always Below 1 Ω
      C12-2 - Body ground Always 10 kΩ or higher

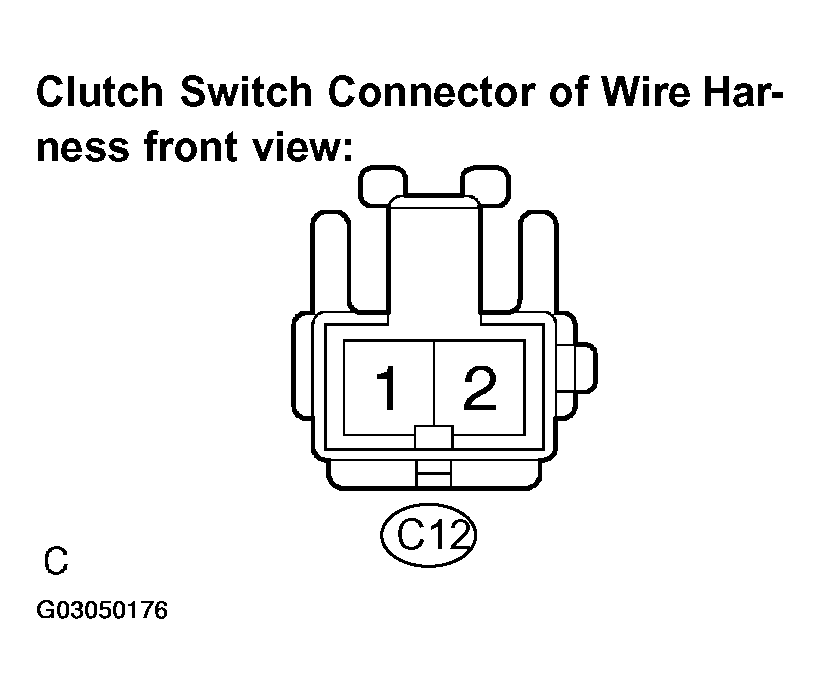

      Fig 3: Measuring Resistance Between Clutch Switch Assy (1 Of 2)
      G03050176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 4: Measuring Resistance Between Clutch Switch Assy (2 Of 2)
      G03050177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (CLUTCH SWITCH ASSY - ECM)
    2. OK : CHECK AND REPAIR HARNESS OR CONNECTOR (CLUTCH SWITCH ASSY - BATTERY)
