Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT CRUISE CONTROL MAIN SWITCH
    1. Turn the ignition switch off.
    2. Disconnect the cruise control main switch connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard:

      SWITCH CONDITION

      Tester connection Switch condition Specification
      1 -3 + /RES 235 to 245 Ω
      1 -3 -/SET 617 to 643 Ω
      1 -3 CANCEL 1,509 to 1,571 Ω
      1 -3 Main Switch OFF 10 kΩ or higher
      1 -3 Main Switch ON Below 1 Ω
      Fig 1: Measuring Resistance Between Cruise Control Switch Connector
      G03050161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPLACE CRUISE CONTROL MAIN SWITCH (SEE  REPLACEMENT  )
    2. OK : Go to next step
  2. CHECK HARNESS AND CONNECTOR (STEERING PAD SWITCH ASSY)

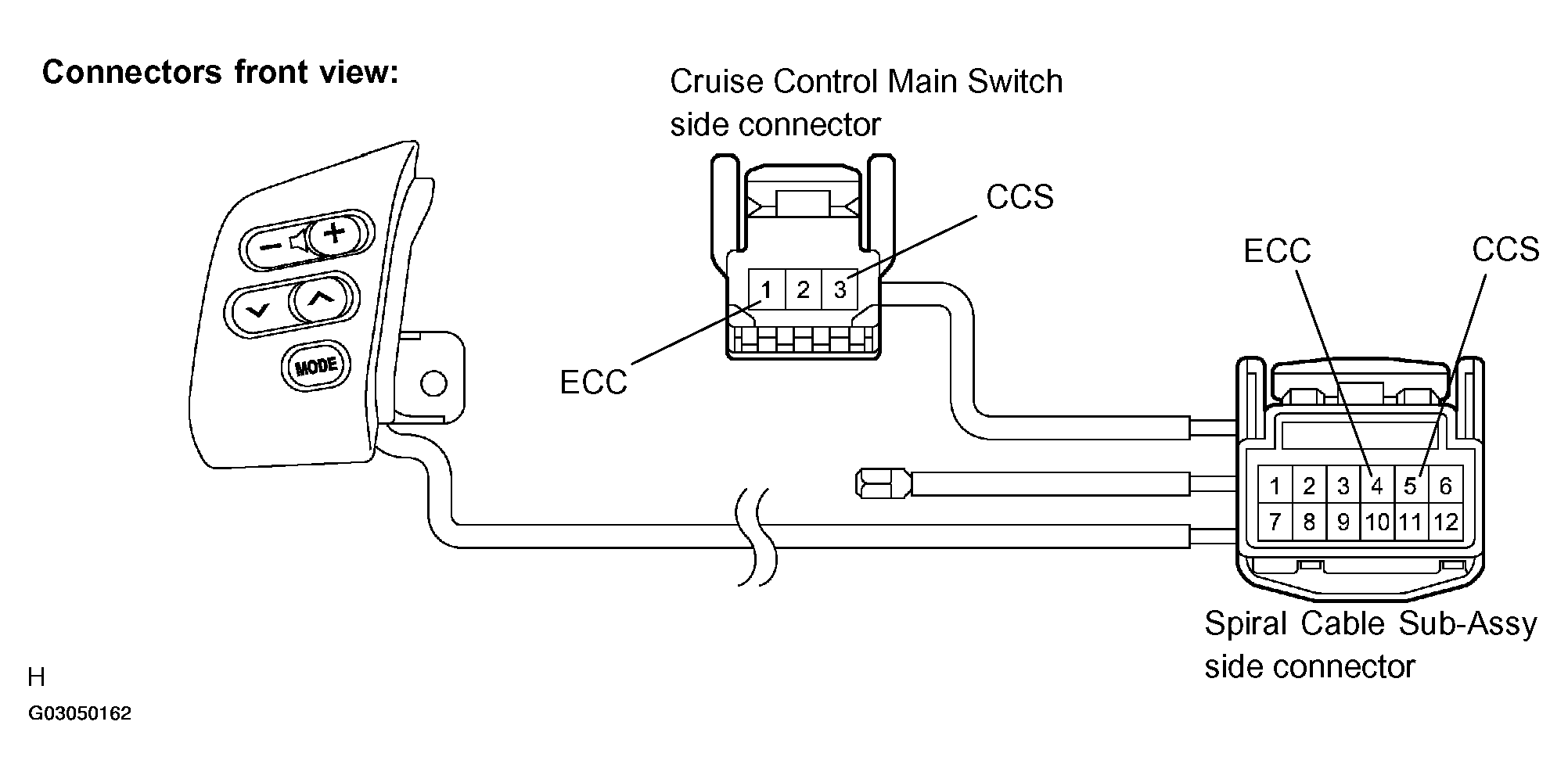

    Fig 2: Checking Harness & Connector (Steering Pad Switch Assy)
    G03050162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the spiral cable side connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      CONNECTOR SPECIFICATION

      Tester connection Condition Specification
      Terminal 1 (ECC) main switch side - Terminal 4 (ECC) spiral cable side Always Below 1 Ω
      Terminal 3 (CCS) main switch side - Terminal 5 (CCS) spiral cable side Always Below 1Ω
    1. NG : REPAIR OR REPLACE STEERING PAD SWITCH ASSY (SEE  REPLACEMENT  )
    2. OK : Go to next step
  3. INSPECT SPIRAL CABLE SUB-ASSY
    1. Disconnect the spiral cable connector ECM side.

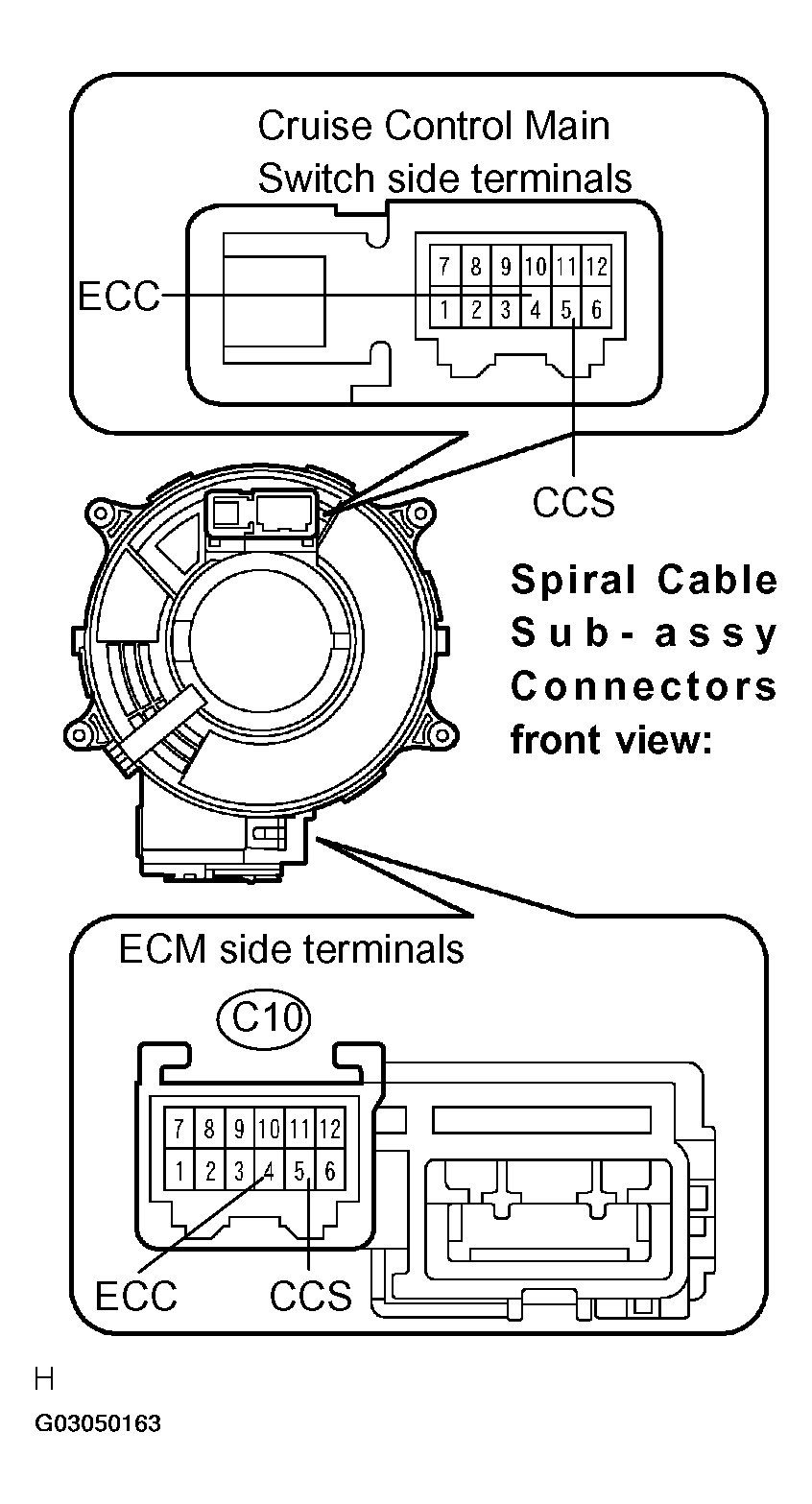

      Fig 3: Disconnecting Spiral Cable Connector ECM Side
      G03050163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

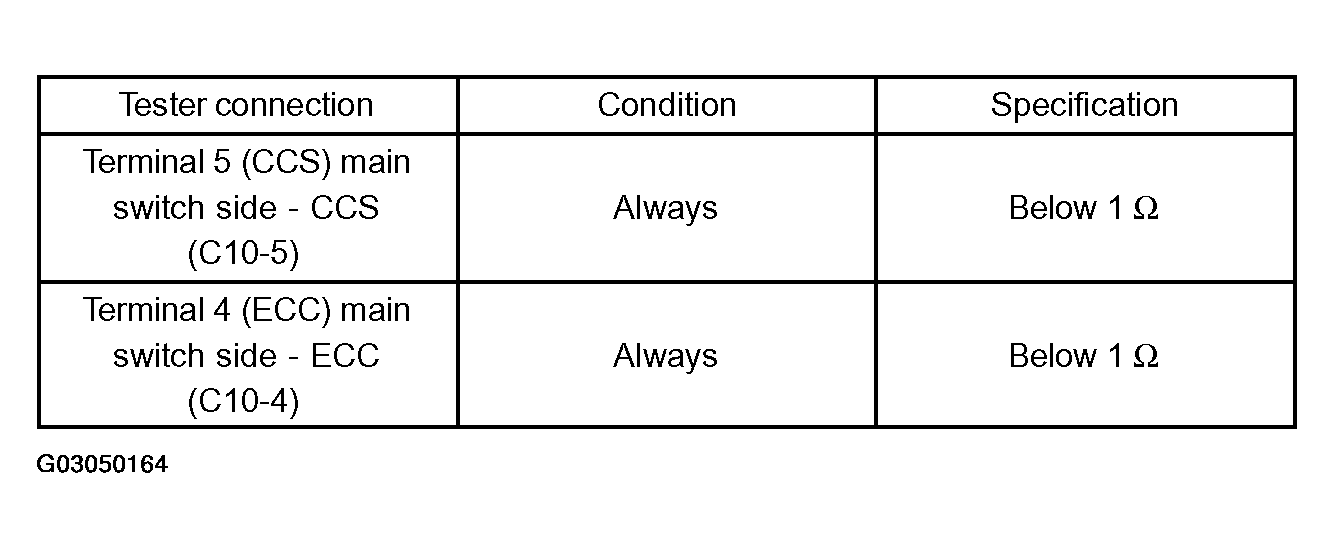

      Fig 4: Measuring Resistance Between Spiral Cable Sub-Assy
      G03050164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPLACE SPIRAL CABLE SUB-ASSY (SEE  AIR BAG RESTRAINT SYSTEMS  )
    2. OK : Go to next step
  4. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard:

      CONNECTOR SPECIFICATION

      Tester connection Condition Specification
      ECC (C10-4) - Body ground Always Below 1Ω

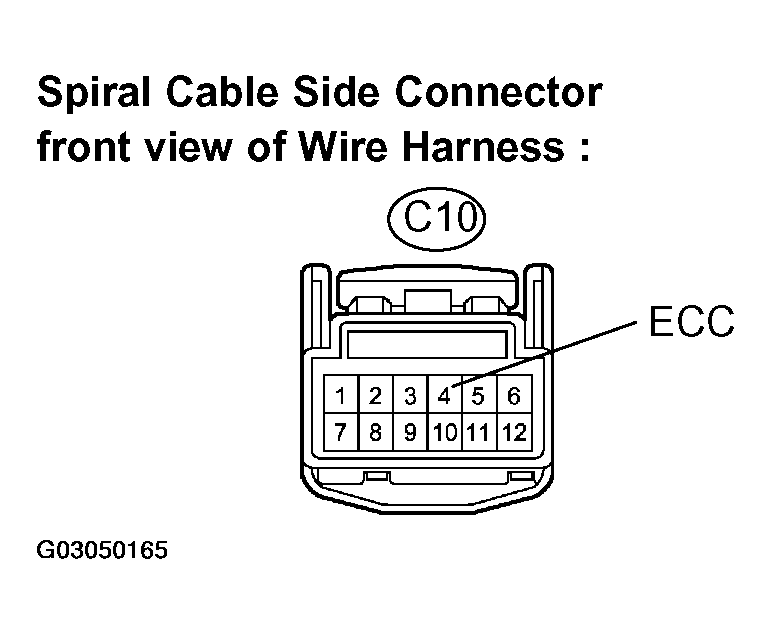

      Fig 5: Measuring Resistance Between Spiral Cable Side Connector
      G03050165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSY - BODY GROUND)
    2. OK : Go to next step
  5. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - ECM)
    1. Disconnect the E5 connector of the ECM.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      CONNECTOR SPECIFICATION

      Tester connection Condition Specification
      CCS (E5 - 24) -CCS (C10-5) Always Below 1 Ω
      CCS (E5 - 24) -Body ground Always 10 kΩ or higher

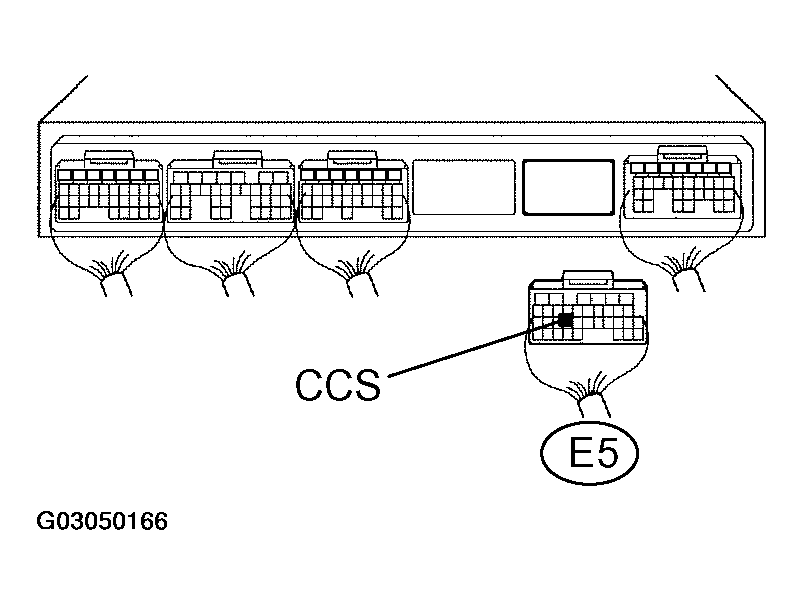

      Fig 6: Disconnecting E5 Connector Of ECM
      G03050166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

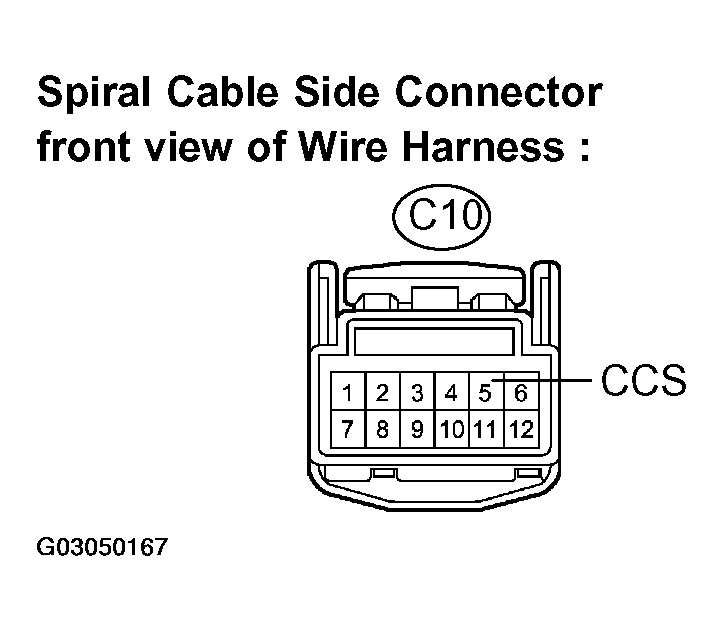

      Fig 7: Measuring Resistance Between Spiral Cable Side Connector
      G03050167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSY -ECM)
    2. OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )
