Terminals Of ECM

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

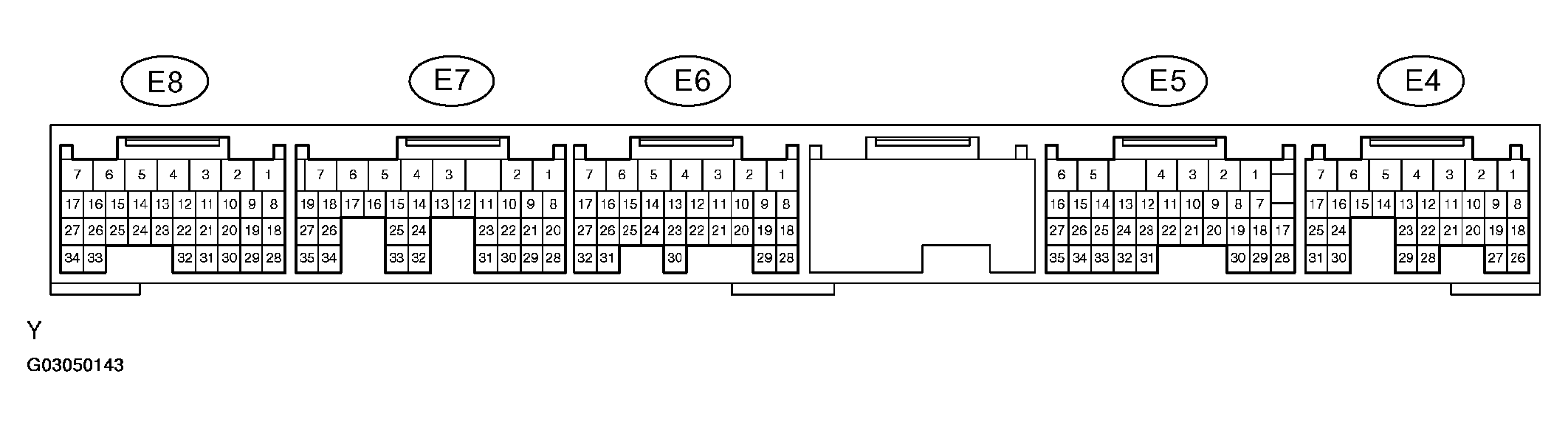

Fig 1: Identifying Terminals Of ECU
G03050143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

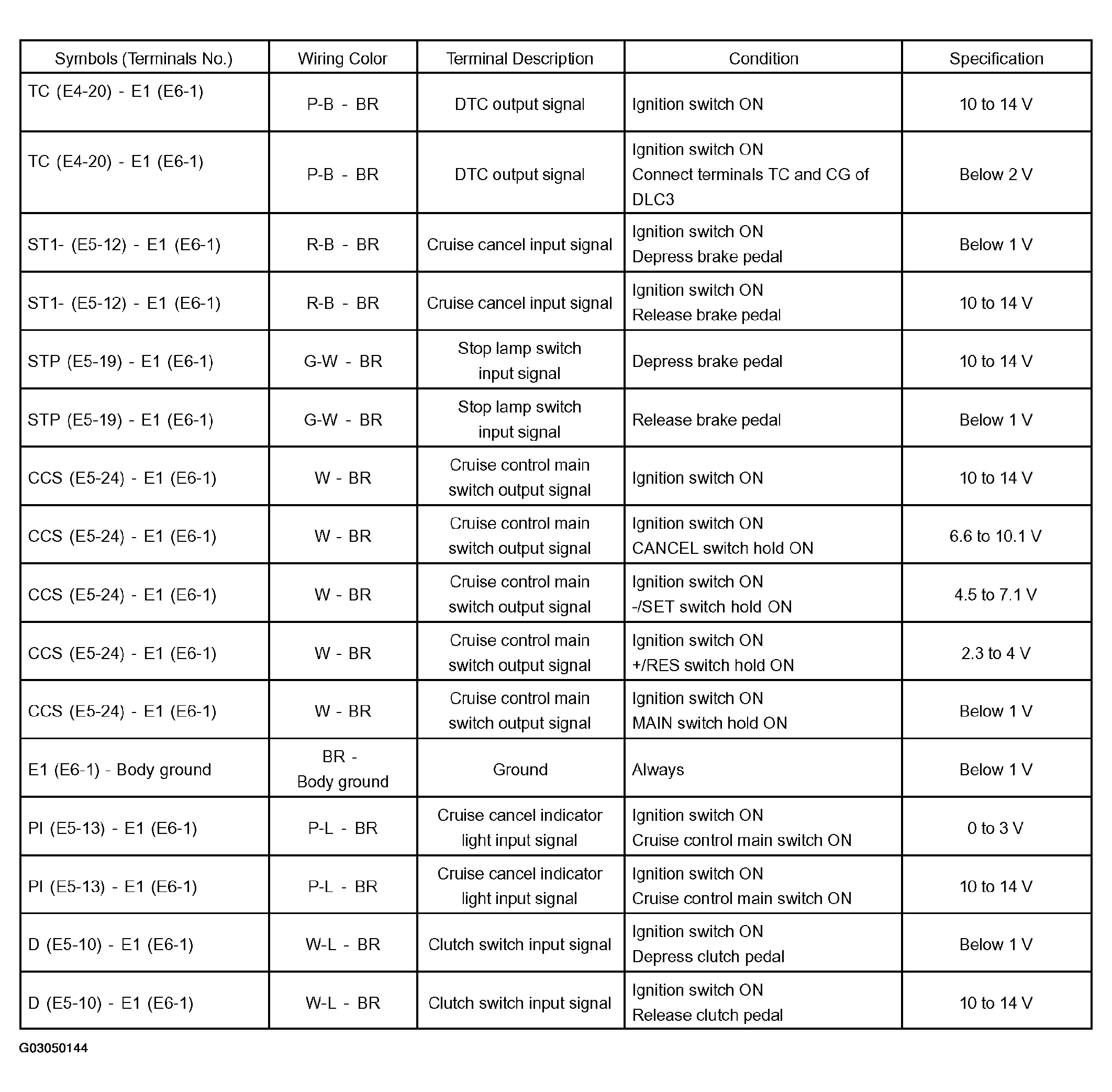

Fig 2: Identifying Connector Terminal Description Chart
G03050144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
