Confirmation Driving Pattern

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

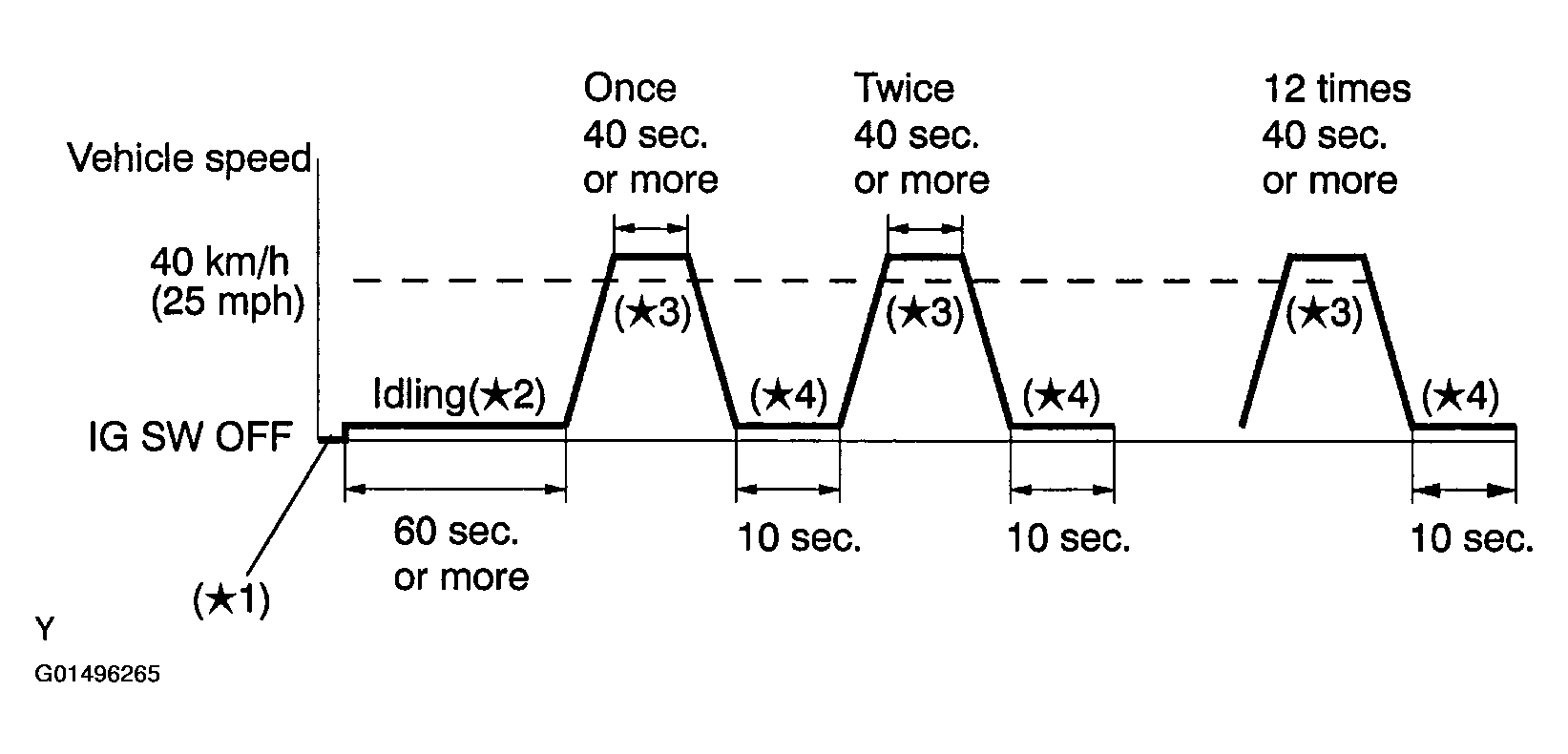

Fig 1: Confirmation Driving Pattern

Connect the hand-held tester to the DLC3. (*1)
Switch the hand-held tester from the normal mode to the check mode (See PRE-CHECK ).(*1)
Start the engine and let the engine idle for 60 seconds or more. (*2)
Drive the vehicle at 40 km/h (25mph) or more for 40 seconds of more. (*3)
Let the engine idle for 10 seconds or more. (*4)
Perform steps 4 and 5 for 12 times.
HINT:

If a malfunction exists, the MIL will light up on the multi-information display during step 60

NOTE: If the conditions in this test are not strictly followed, a malfunction detection will not occur. if you do not have a hand-held tester, turn the ignition switch OFF after performing steps from 3 to 6, then perform steps from 3 to 6 again.
