Automatic Transaxle Assembly (U341F): Components

WARNING: This page is about a different variant/trim than selected.

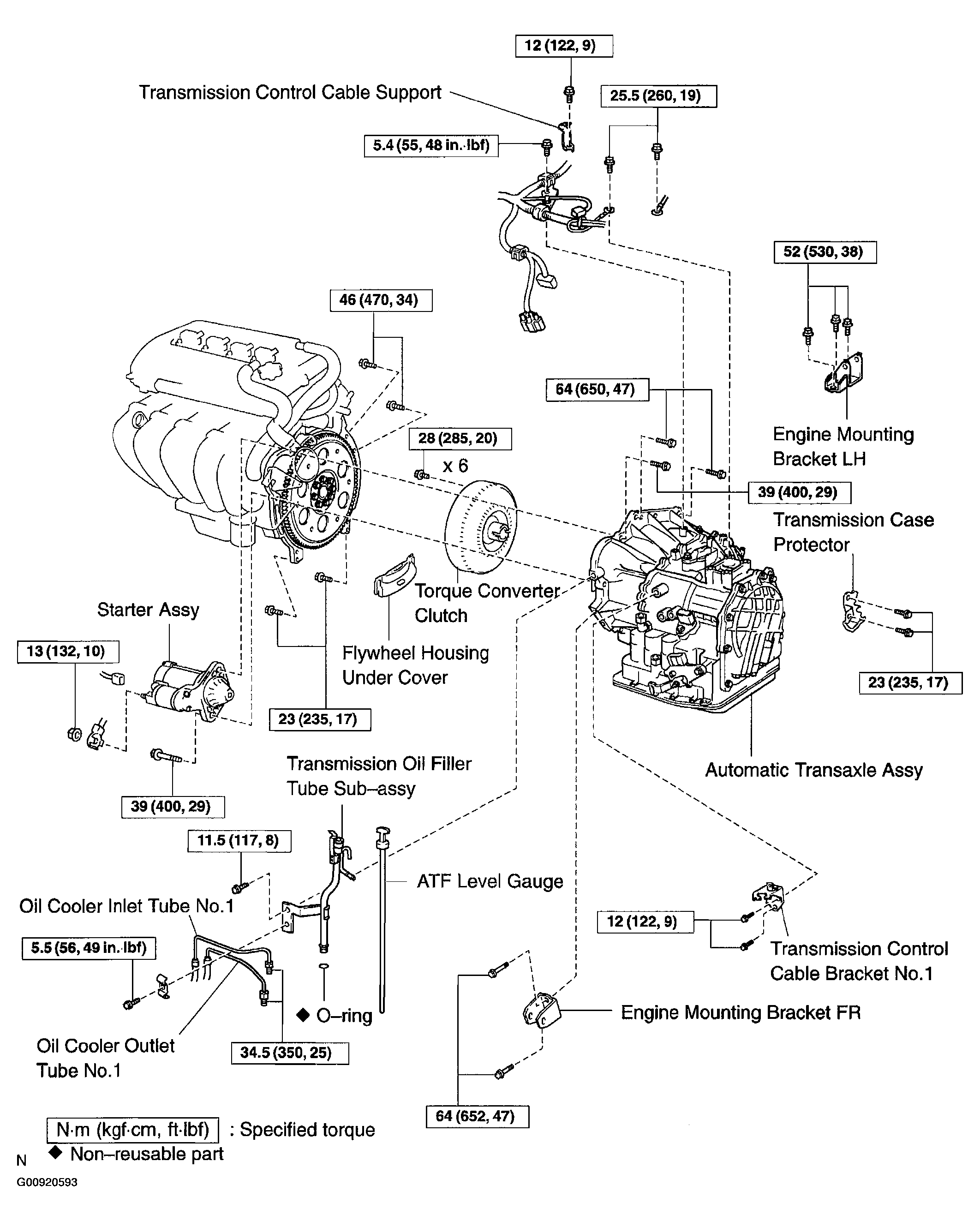

Fig 1: Identifying Automatic Transaxle Assy Components (U341F)
G00920593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
