Floor Shift Cable Transmission Control Shift (ATM): Replacement

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION (See  AIR BAG SAFETY PRECAUTIONS  )
  2. SEPARATE BATTERY NEGATIVE TERMINAL
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL BOX (See  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See  REPLACEMENT  )
  7. REMOVE AIR BAG SENSOR ASSY CENTER (See  REMOVAL & INSTALLATION (MATRIX)  )
  8. SEPARATE OXYGEN SENSOR CONNECTOR
    1. Remove the foot rest.
    2. Pull up the floor carpet.
    3. Disconnect the oxygen sensor connector.
  9. REMOVE FLOOR PANEL BRACE FRONT
    1. Remove the 2 nuts and floor panel brace.
  10. REMOVE EXHAUST PIPE ASSY FRONT
    1. 1ZZ-FE: (See REMOVAL & INSTALLATION )
    2. 2ZZ-GE: (See REMOVAL & INSTALLATION )
  11. REMOVE FRONT FLOOR HEAT INSULATOR NO.1
    1. Remove the 3 nuts and heat insulator.
  12. REMOVE AIR CLEANER ASSEMBLY WITH HOSE
  13. REMOVE FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Remove the nut and disconnect control cable from control shaft lever.
    2. 2ZZ-GE:

      Push the claw of the clip and disconnect the control cable from the bracket.

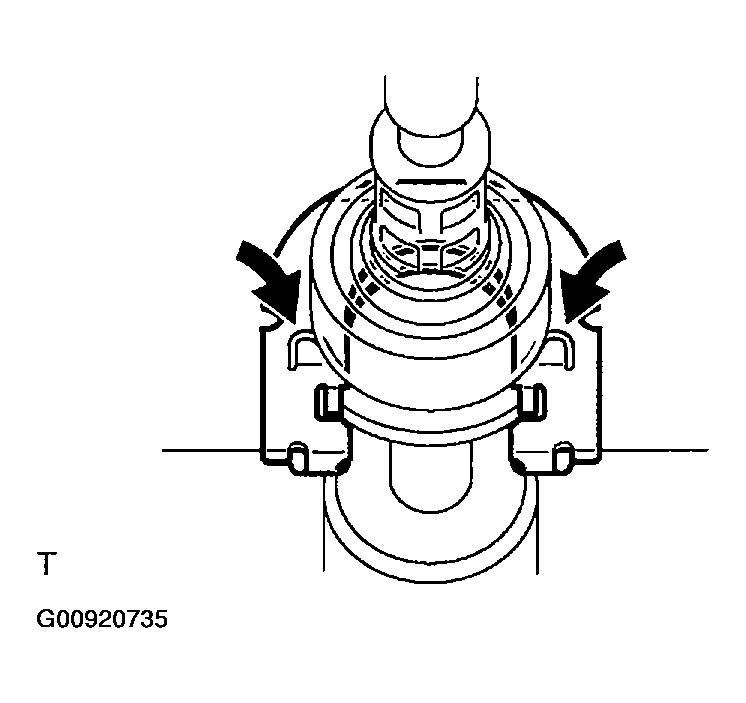

      Fig 1: Pushing Claw Of Clip And Disconnecting Control Cable From Bracket (2ZZ-GE)
      G00920735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. 2ZZ-GE:

      Remove the clip from the bracket.

    4. 1ZZ-FE:

      Remove the clip and disconnect the control cable from the bracket.

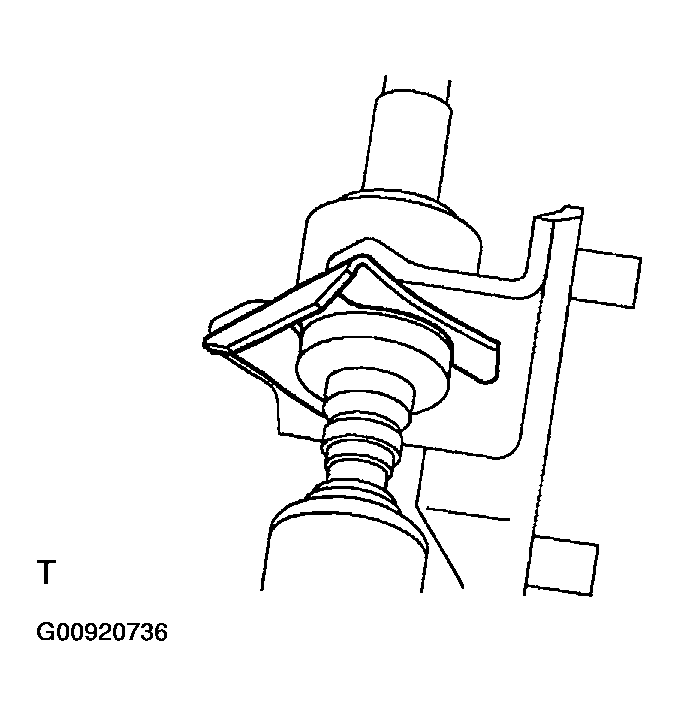

      Fig 2: Removing Clip And Disconnecting Control Cable From Bracket (1ZZ-FE)
      G00920736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the control cable from control cable support.

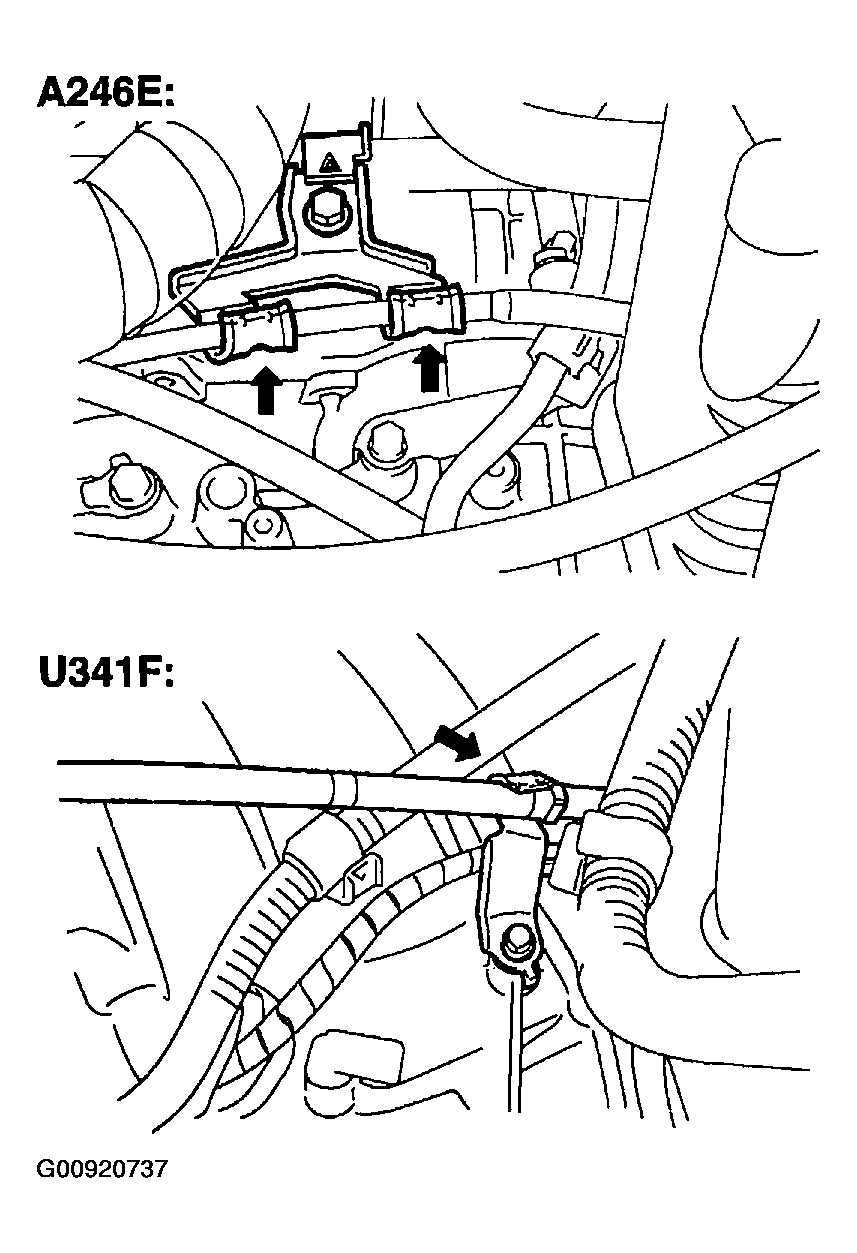

      Fig 3: Disconnecting Control Cable From Control Cable Support
      G00920737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 nuts and separate the control cable from the body.

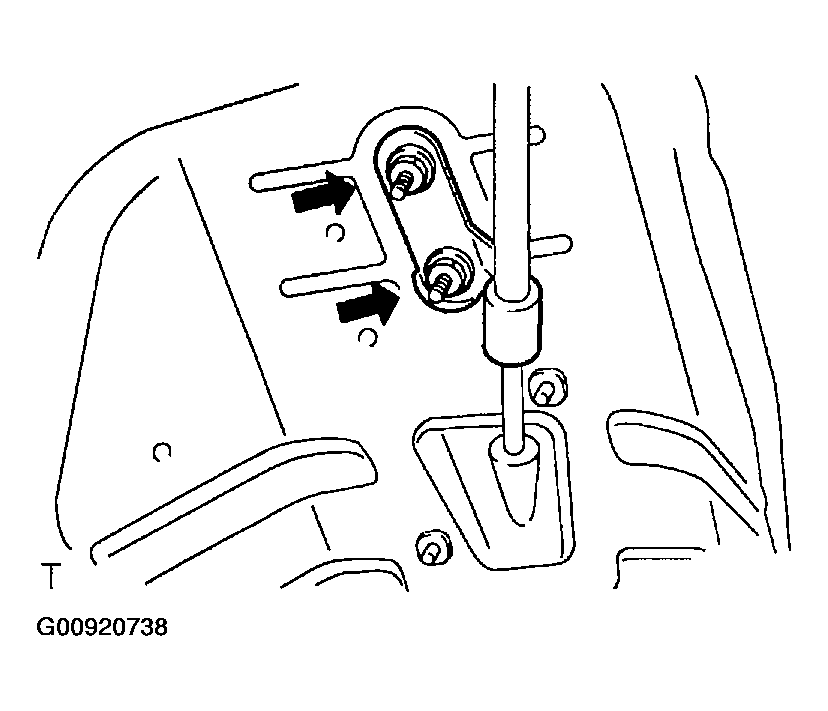

      Fig 4: Removing Nuts And Separating Control Cable From Body
      G00920738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the cable end from the floor shift assy.

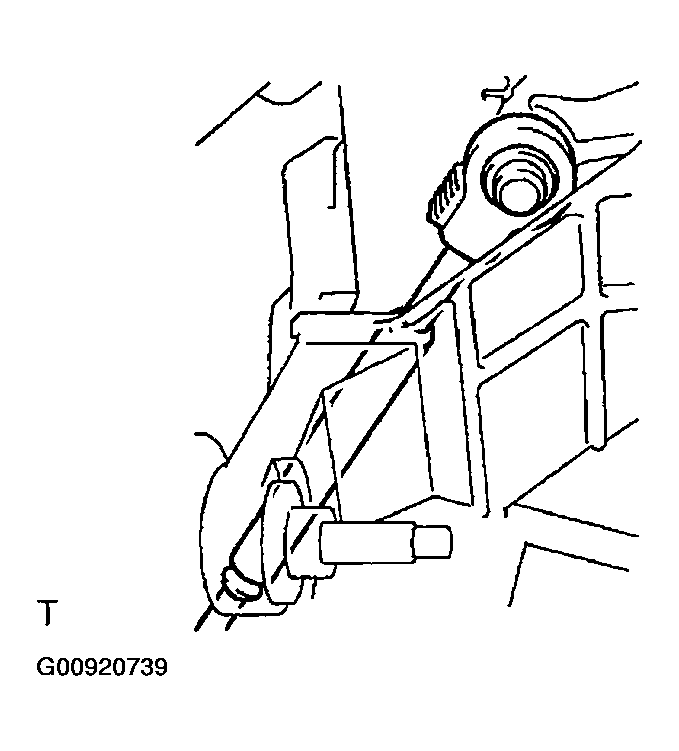

      Fig 5: Removing Cable End From Floor Shift Assy
      G00920739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Using a screw driver, disconnect the control cable from the shift lever plate.

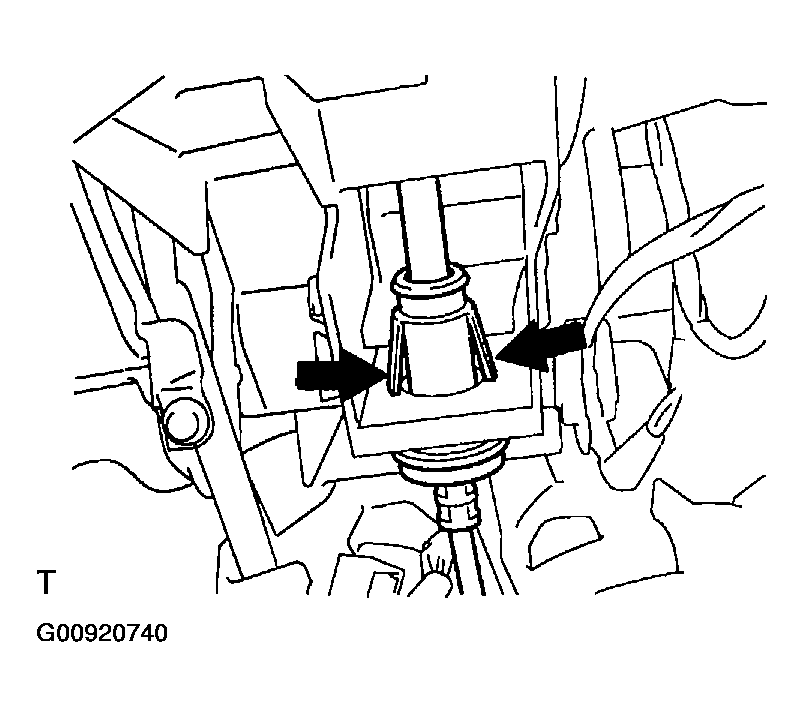

      Fig 6: Disconnecting Control Cable From Shift Lever Plate Using Screw Driver
      G00920740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 2 bolts.
    10. Pull out the control cable assy from the body.
    11. Remove the retainer from the shift cable.
      12. Fig 7: Removing Bolt, Retainer And Shift Cable
      G00920741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Install the retainer to the shift cable.
    2. Pull in the control cable assy to the body.
    3. Install the 2 bolts.
      1. Torque: 5.0 N.m (50 kgf.cm, 43 in.lbf)

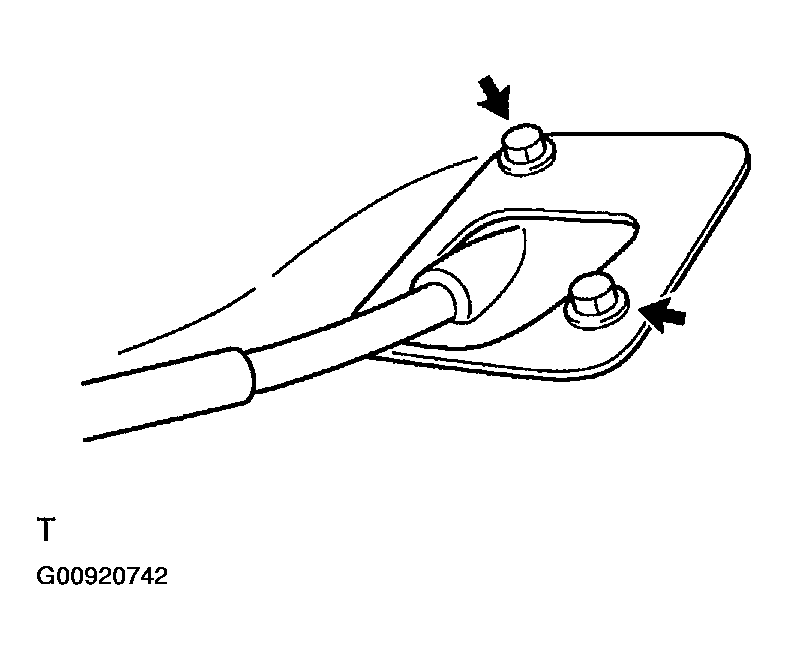

      Fig 8: Installing Bolt, Retainer And Shift Cable
      G00920742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the control cable to the shift lever plate.

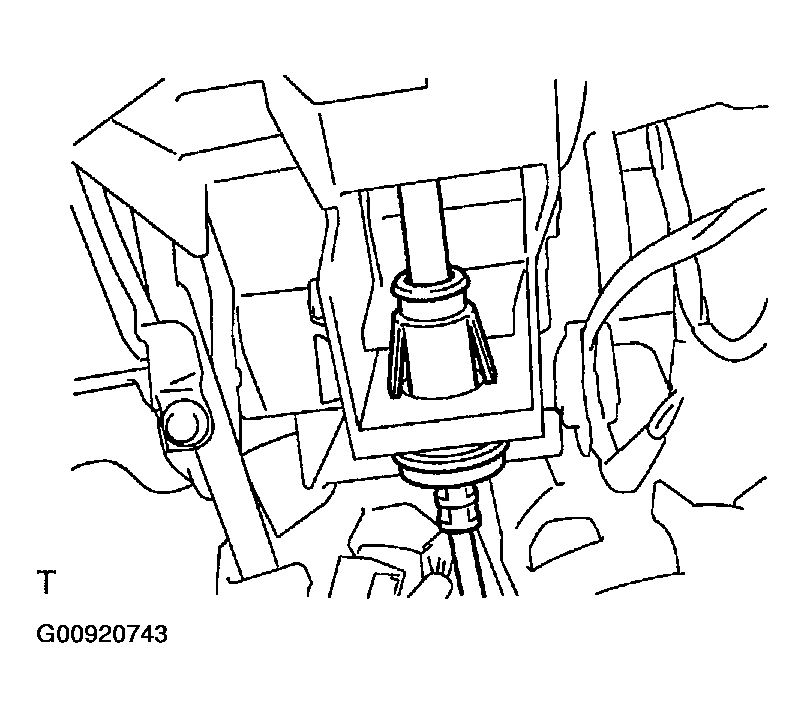

      Fig 9: Installing Control Cable To Shift Lever Plate
      G00920743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the control cable end to the floor shift assy.
      NOTE:

      Install it with the uneven surface facing up.

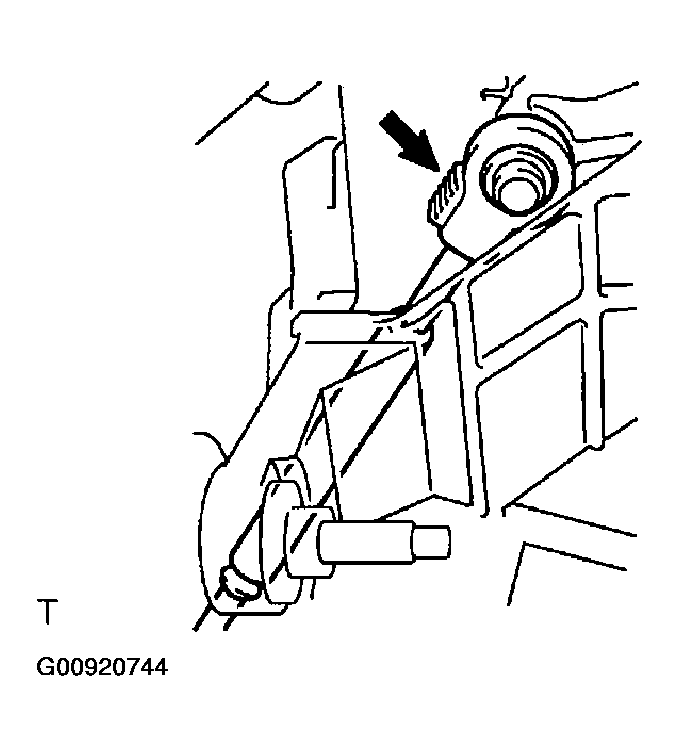

      Fig 10: Connecting Control Cable End To Floor Shift Assy
      G00920744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the control cable with the 2 nuts to the body.
      1. Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

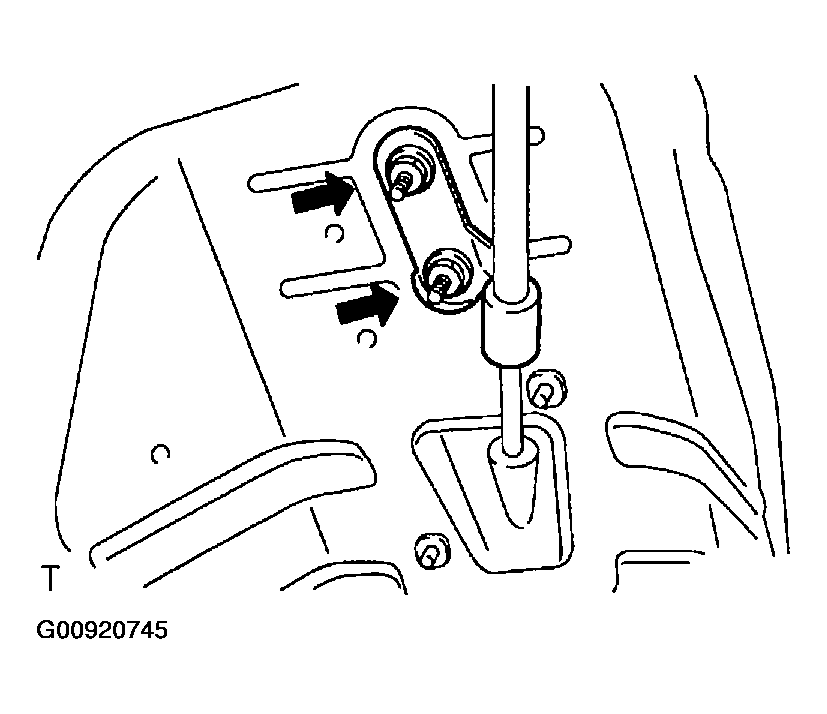

      Fig 11: Installing Control Cable With Nuts To Body
      G00920745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the control cable to the control cable support.

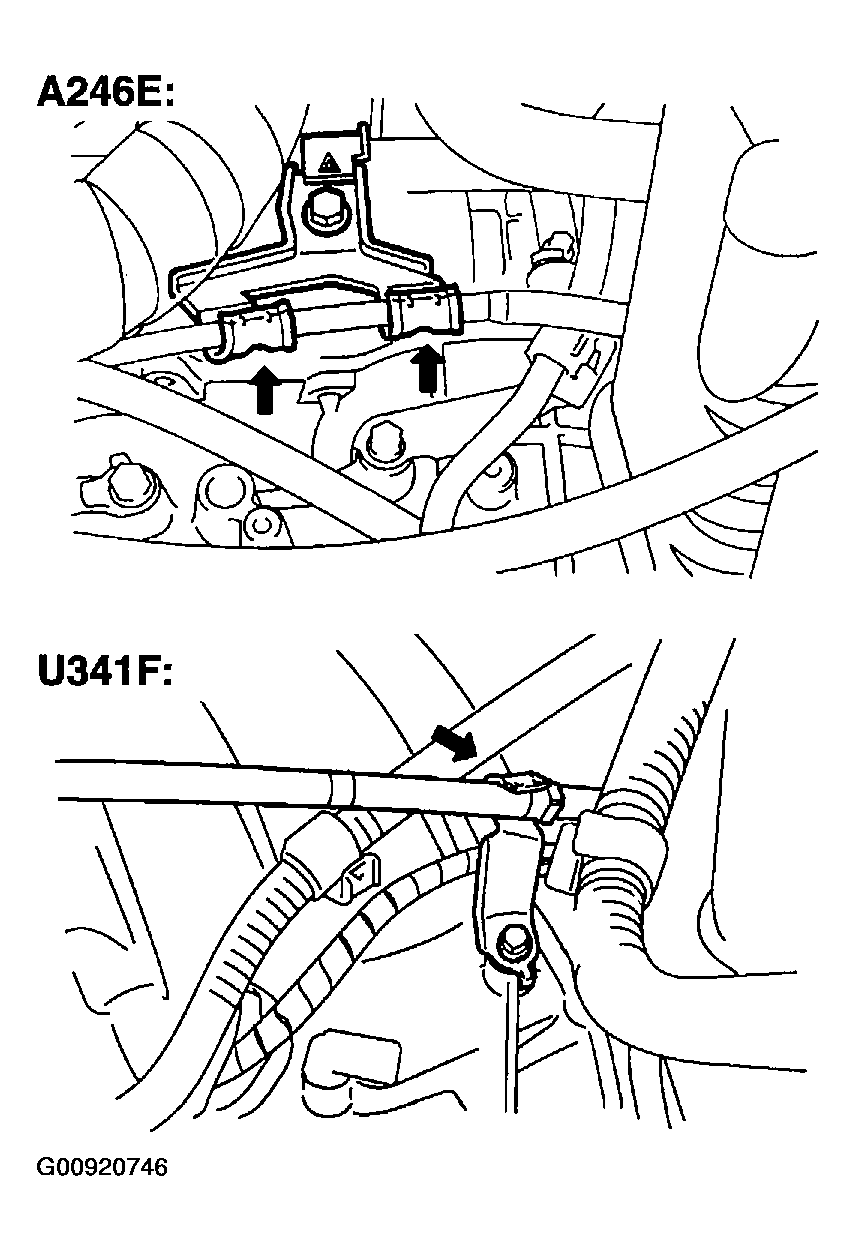

      Fig 12: Connecting Control Cable To Control Cable Support
      G00920746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Temporarily install the control cable to the control shaft lever with nut.
    9. 2ZZ-GE:

      Install a new clip to the bracket.

    10. 2ZZ-GE:

      Connect the control cable to the bracket.

      NOTE: Insert the cable securely.

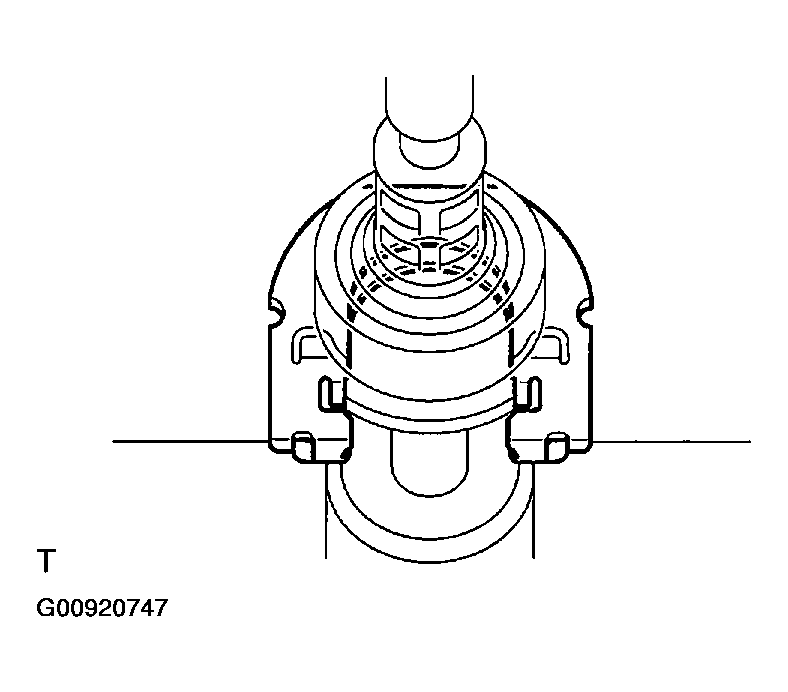

      Fig 13: Connecting Control Cable To Bracket (2ZZ-GE)
      G00920747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. 1ZZ-FE:

      Install the control cable with the clip to the bracket.

      NOTE: Insert the cable securely.
      Fig 14: Installing Control Cable With Clip To Bracket (1ZZ-FE)
      G00920748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL AIR CLEANER ASSEMBLY WITH HOSE
    1. Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
  16. INSTALL FRONT FLOOR HEAT INSULATOR NO.1
    1. Install the heat insulator with the 3 nuts.
      1. Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)
  17. INSTALL EXHAUST PIPE ASSY FRONT
    1. 1ZZ-FE: (See REMOVAL & INSTALLATION )
    2. 2ZZ-GE: (See REMOVAL & INSTALLATION )
  18. INSTALL FLOOR PANEL BRACE FRONT
    1. Install the floor panel brace with the 2 nuts.
      1. Torque: 29.6 N.m (302 kgf.cm, 22 ft.lbf)
  19. INSTALL OXYGEN SENSOR CONNECTOR
    1. Connect the oxygen sensor connector.
    2. Install the floor carpet and foot rest.
  20. INSTALL AIR BAG SENSOR ASSY CENTER (See  REMOVAL & INSTALLATION (MATRIX)  )

    SST 09249-63010

  21. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT   )
  22. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT   )
  23. INSPECT SRS WARNING LIGHT (See  AIR BAG WARNING LIGHT CHECK  )
