Floor Shift Parking Lock Cable Assembly: Replacement

WARNING: This page is about a different variant/trim than selected.

REMOVE METER HOOD SUB-ASSY (See REPLACEMENT )
REMOVE STEERING COLUMN COVER (See OVERHAUL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (See REPLACEMENT )
REMOVE INSTRUMENT PANEL BOX (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See REPLACEMENT )
REMOVE FLOOR SHIFT PARKING LOCK CABLE ASSY

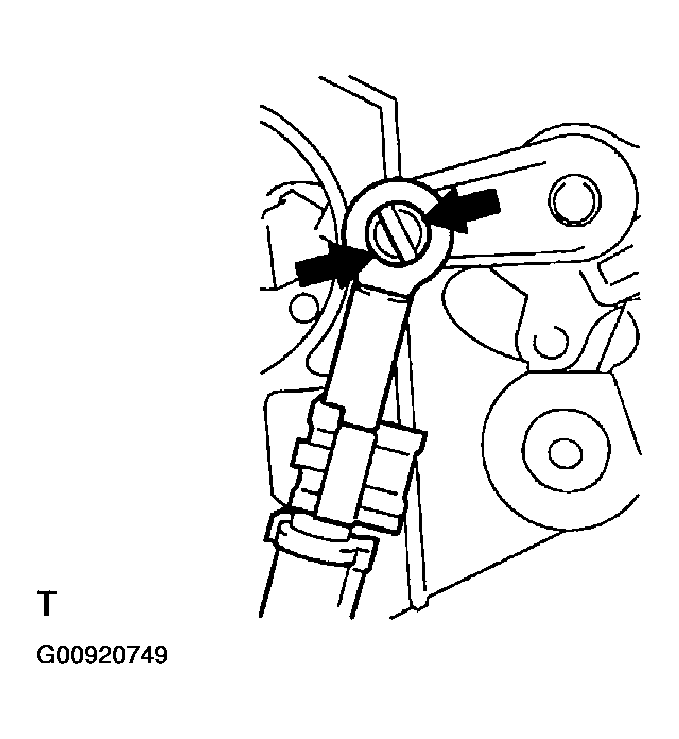

1. Push the claw and disconnect the parking lock cable assy from the shift lock release link.

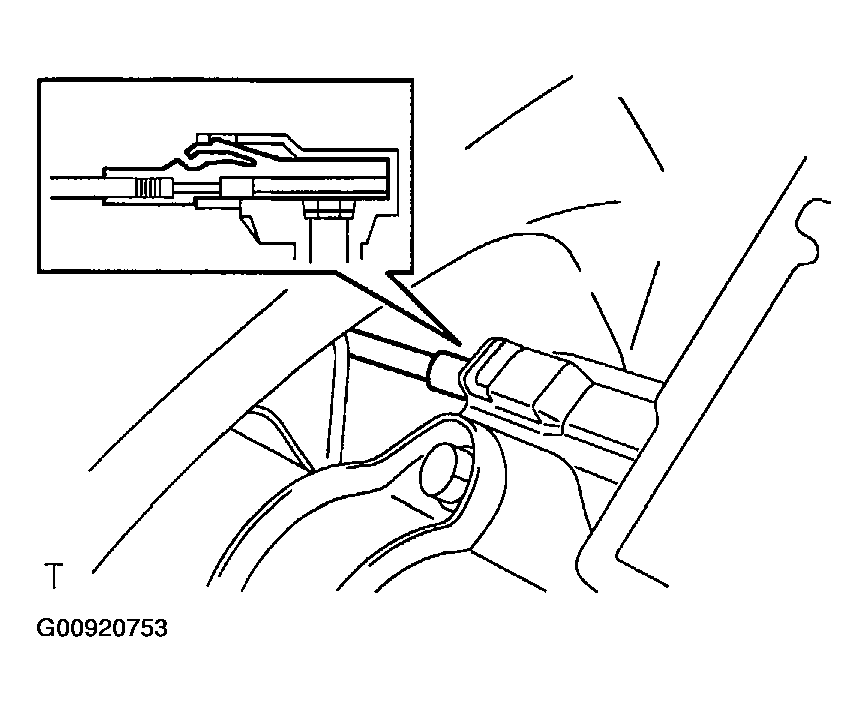

  Fig 1: Pushing Claw And Disconnecting Parking Lock Cable Assy From Shift Lock Release Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

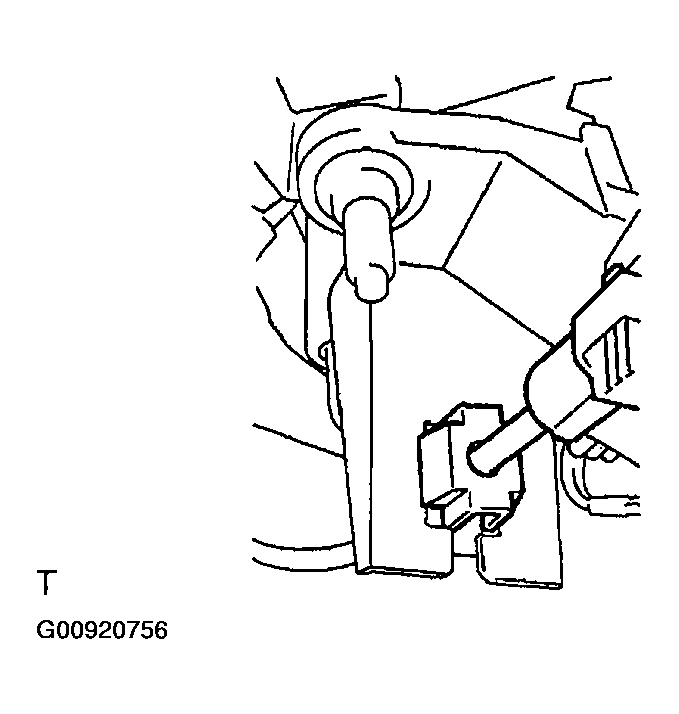

2. Using a screw driver, disconnect the parking lock cable assy from the shift lever plate.

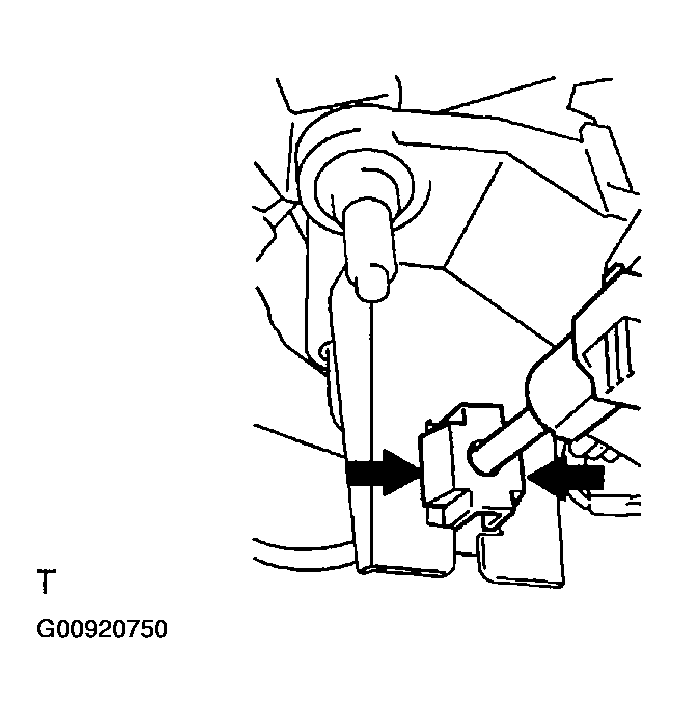

  Fig 2: Disconnecting Parking Lock Cable Assy From Shift Lever Plate Using Screw Driver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

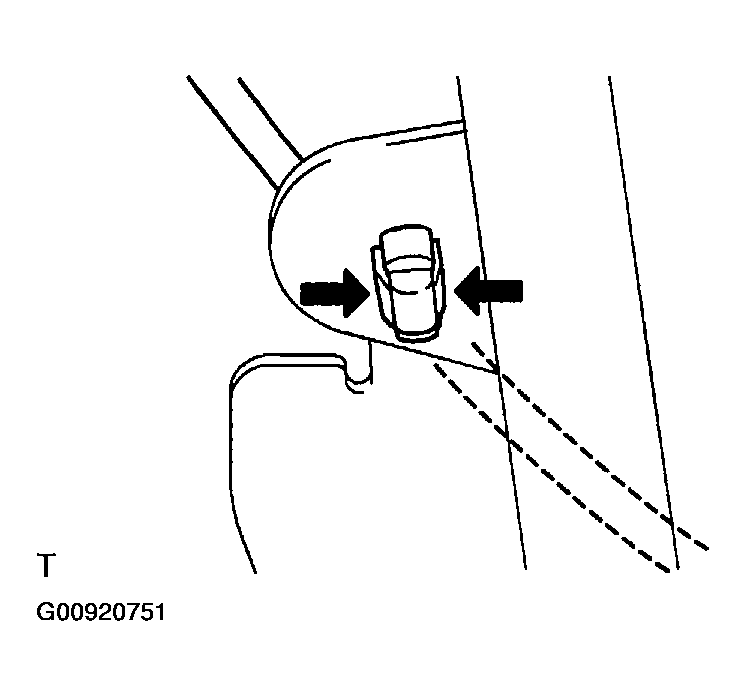

3. Disconnect the cable clamp.

  Fig 3: Disconnecting Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the ignition switch ACC or ON.

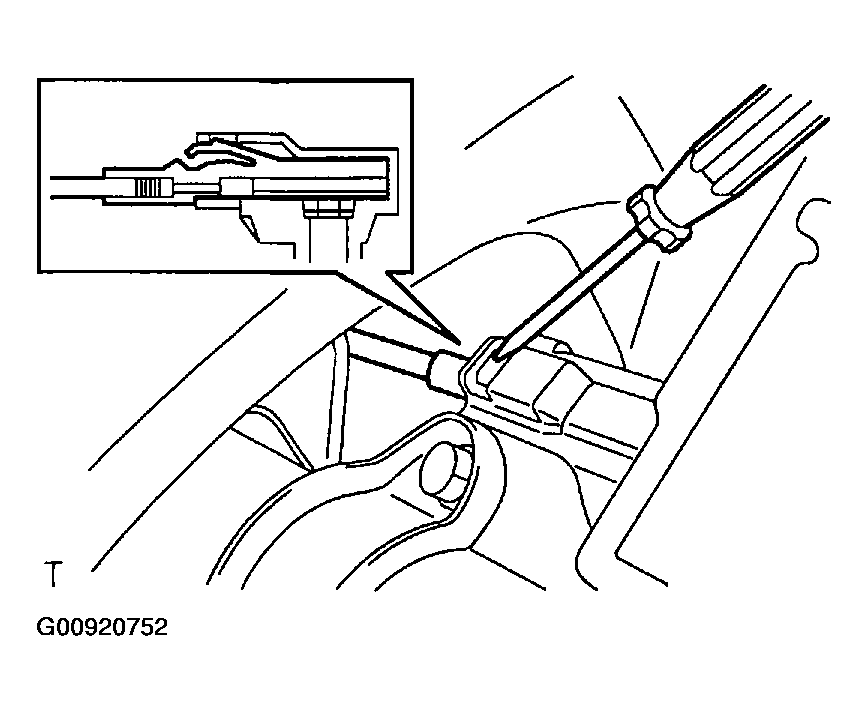

5. Using a screwdriver, disconnect the cable from the upper bracket.

  Fig 4: Disconnecting Cable From Upper Bracket Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT PARKING LOCK CABLE ASSY
1. Turn the ignition switch ACC or ON.
2. Connect the cable to the upper bracket.

  Fig 5: Connecting Cable To Upper Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

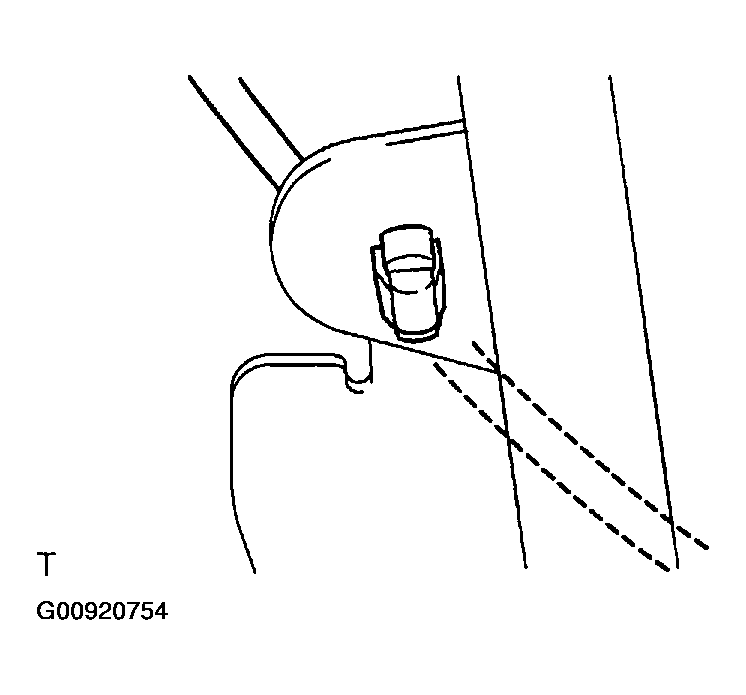

3. Connect the cable clamp.

  Fig 6: Connecting Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Shift the shift lever to N position.

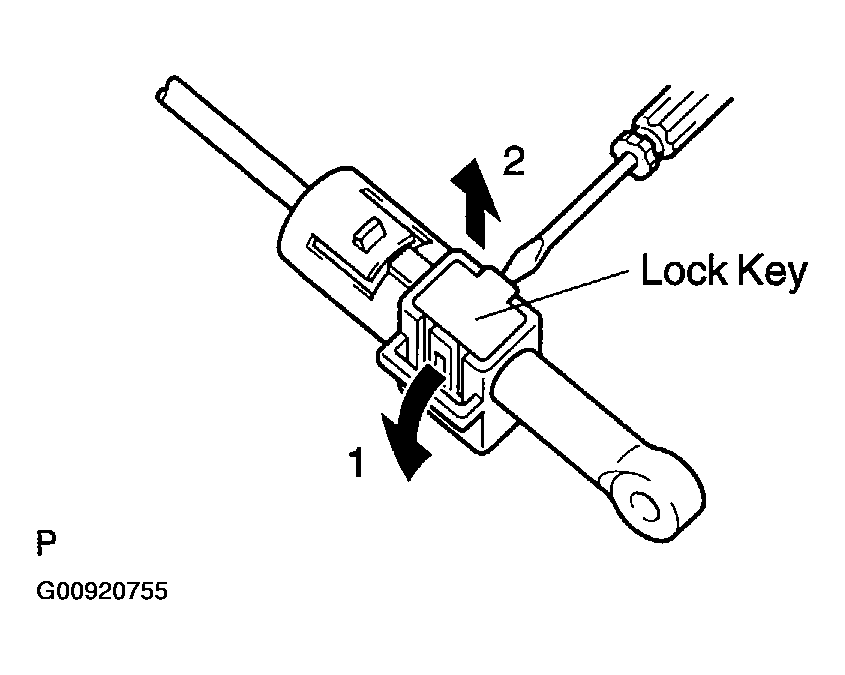

5. Using a small screwdriver, unlock the claw of the lock key of automatic adjustment part.

  Fig 7: Unlocking Claw Of Lock Key Of Automatic Adjustment Part Using Small Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Pass the parking lock cable through the hole of shift lever plate.
7. Insert the slide cap into the shift lever plate.

  Fig 8: Inserting Slide Cap Into Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Apply MP grease to the shift lock release link.

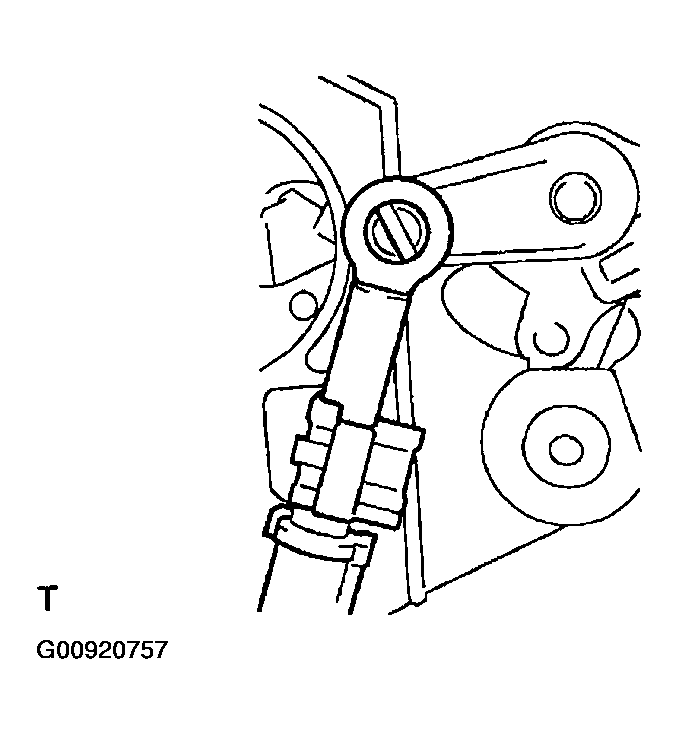

9. Insert the lever pin into the hole in the cable end.

  Fig 9: Inserting Lever Pin Into Hole In Cable End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

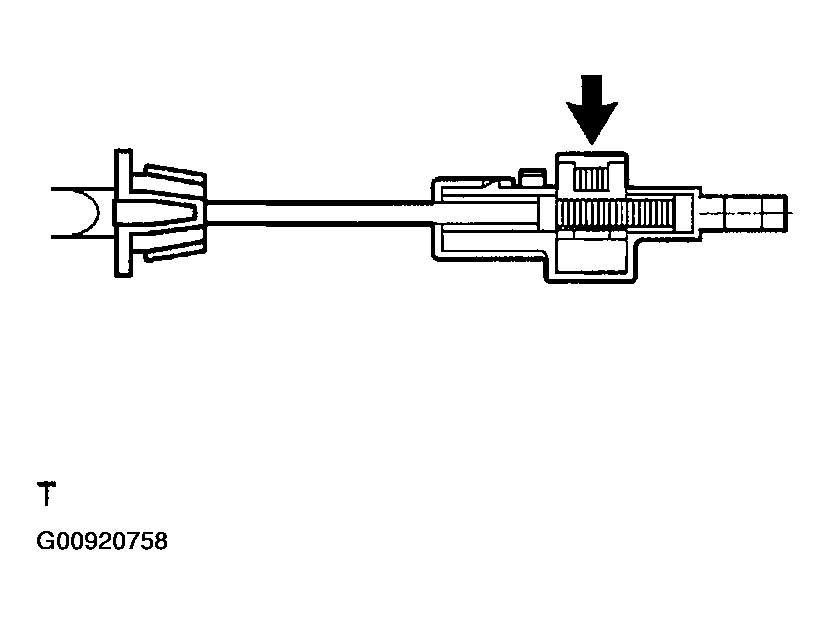

10. Lock the lock key.
  NOTE:
  At this time, the shift lever should be in N position and the ignition key should be set to ACC or ON.
Fig 10: Locking Lock Key
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK KEY INTERLOCK OPERATION (See ON-VEHICLE INSPECTION )
