Park/Neutral Position Switch Assembly (ATM): Replacement

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE BATTERY
  2. REMOVE BATTERY CARRIER
    1. Remove the 4 bolts and battery carrier.
  3. DISCONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Remove the nut from the control shaft lever.

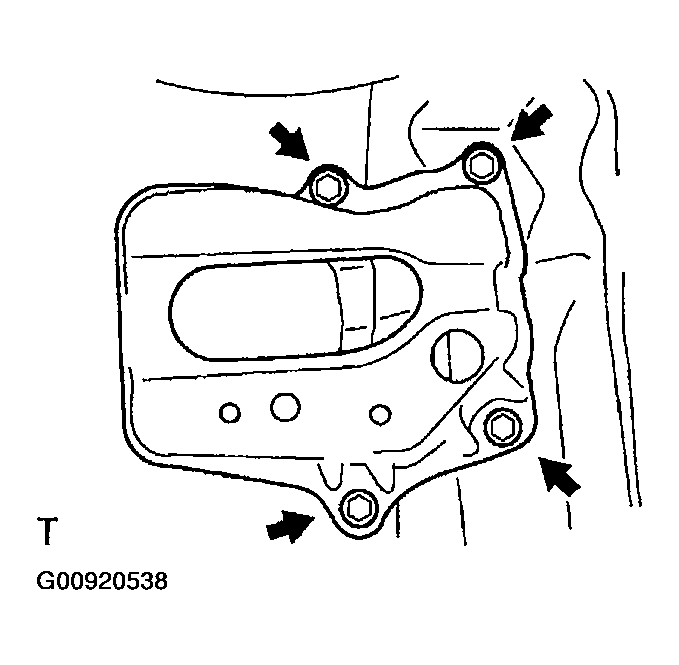

      Fig 1: Removing Nut From Control Shaft Lever
      G00920538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the control cable from the control shaft lever.
    3. Remove the clip and disconnect the control cable from the bracket.

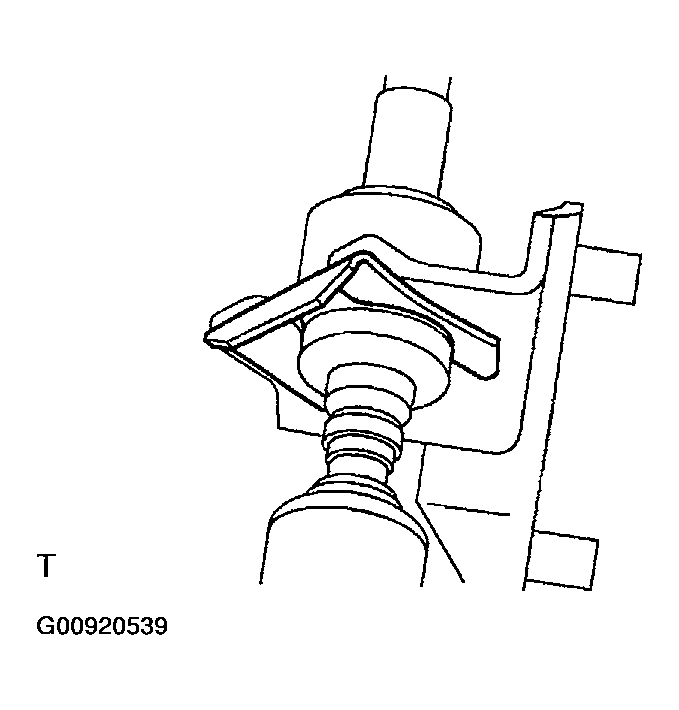

      Fig 2: Removing Clip And Disconnecting Control Cable From Bracket
      G00920539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE PARK/NEUTRAL POSITION SWITCH ASSY
    1. Disconnect the park/neutral position switch connector.
    2. Remove the nut, washer and control shaft lever.
    3. Pry out the lock plate and remove the manual valve shaft nut.
    4. Remove the 2 bolts and pull out the park/neutral position switch.

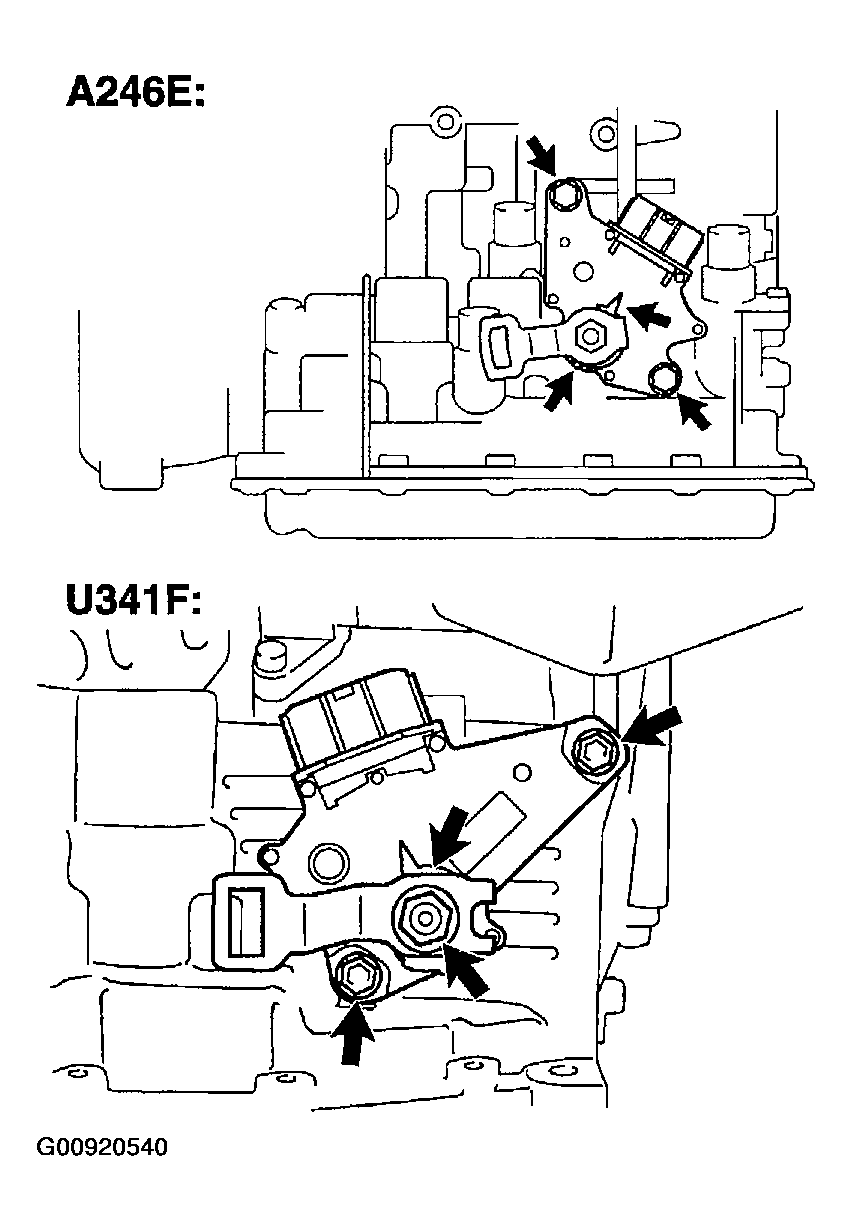

      Fig 3: Removing Bolts And Pulling Out Park/Neutral Position Switch
      G00920540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
    1. A246E:
      1. Install the park/neutral position switch to the manual valve shaft.

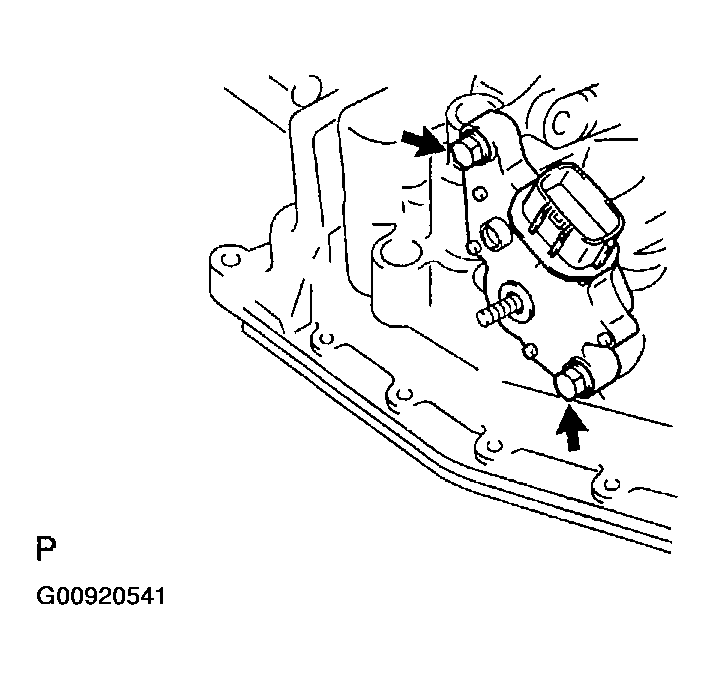

        Fig 4: Installing Park/Neutral Position Switch Assy
        G00920541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Temporarily install the 2 bolts.
      3. Place a new lock plate and tighten the nut.
        1. Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
      4. Temporarily install the control shaft lever.
      5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
      6. Remove the control shaft lever.

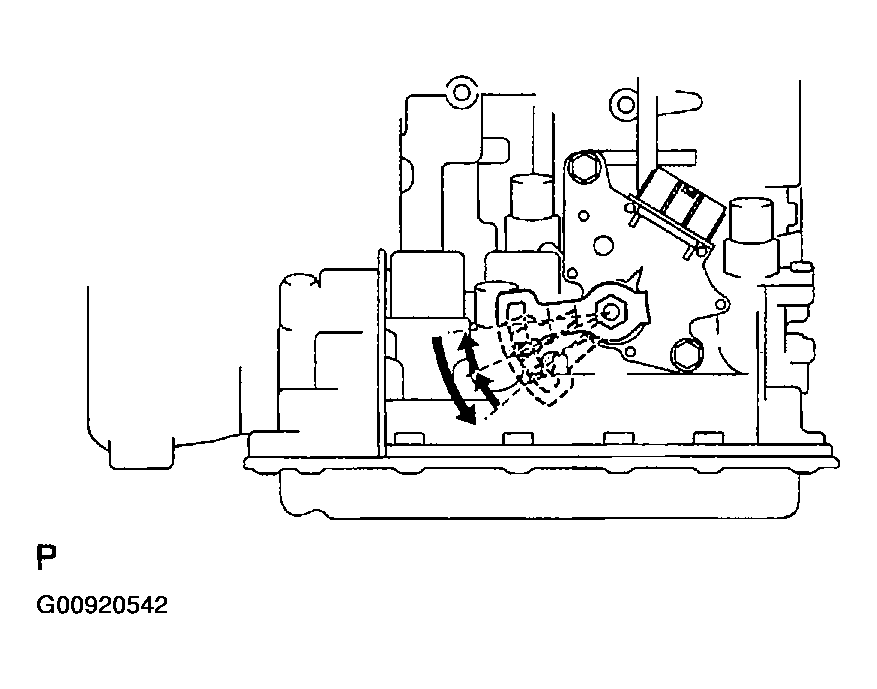

        Fig 5: Removing Control Shaft Lever
        G00920542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Align the groove with neutral basic line.

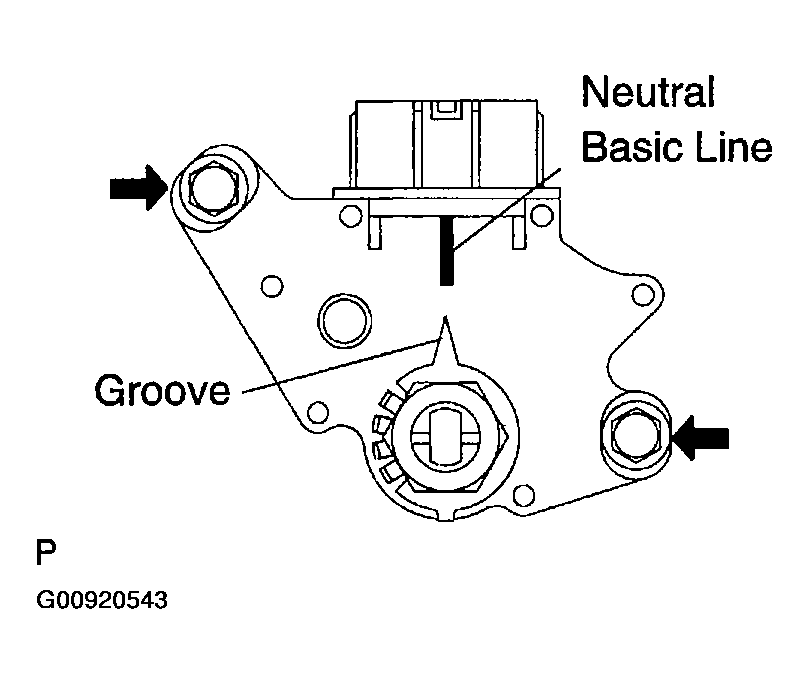

        Fig 6: Aligning Groove With Neutral Basic Line
        G00920543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Hold the switch in position and tighten the 2 bolts.
        1. Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
      9. Using a screwdriver, stake the nut with the lock plate.

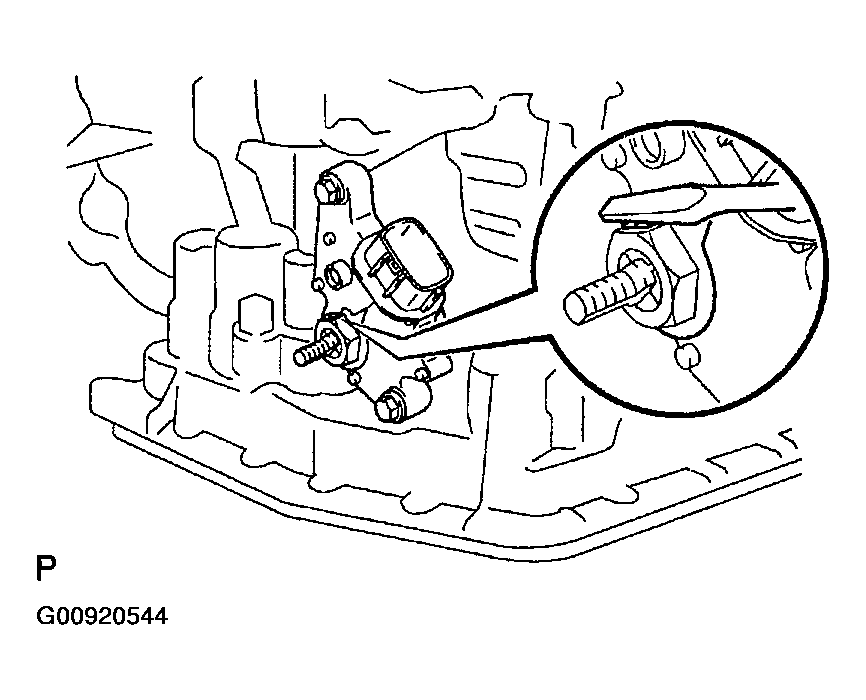

        Fig 7: Staking Nut With Lock Plate Using Screwdriver
        G00920544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. Install the control shaft lever, washer and nut.

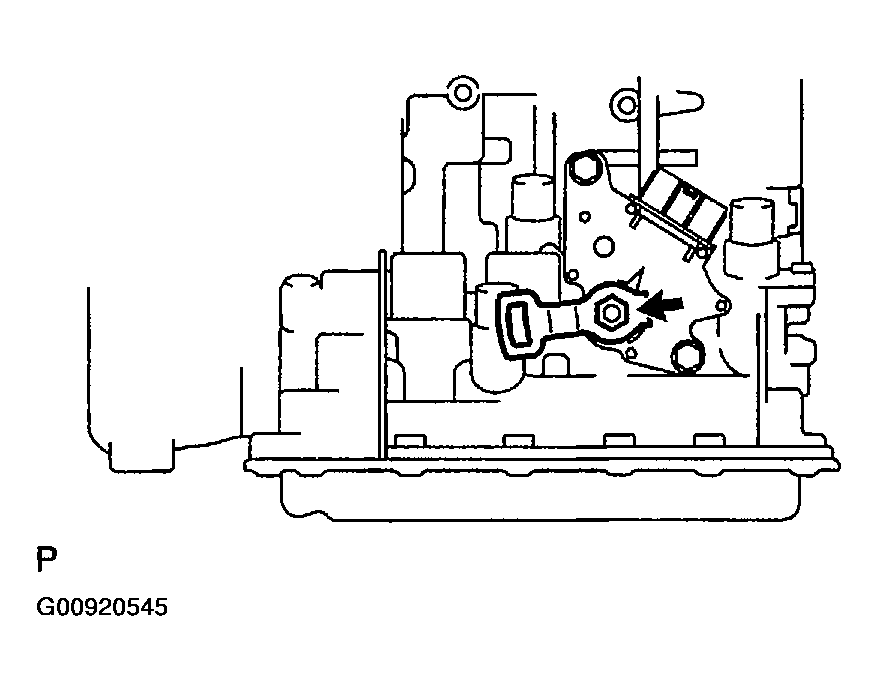

        Fig 8: Installing Control Shaft Lever, Washer And Nut
        G00920545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Torque: 12.5 N.m (127 kgf.cm, 9 ft lbf)
      11. Connect the park/neutral position switch connector.
    2. U341F:
      1. Install the park/neutral position switch to the manual valve shaft.

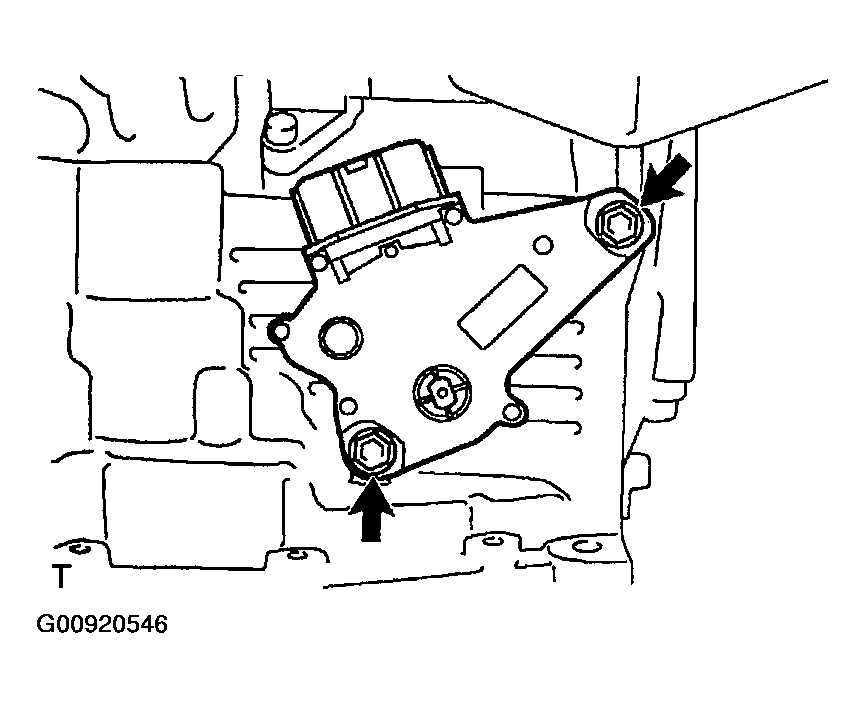

        Fig 9: Installing Park/Neutral Position Switch To Manual Valve Shaft
        G00920546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Temporarily install the 2 bolts.
      3. Place a new lock plate and tighten the nut.
        1. Torque: 6.9 N.m (70 kgf.cm, 61 in.lbf)
      4. Temporarily install the control shaft lever.
      5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
      6. Remove the control shaft lever.

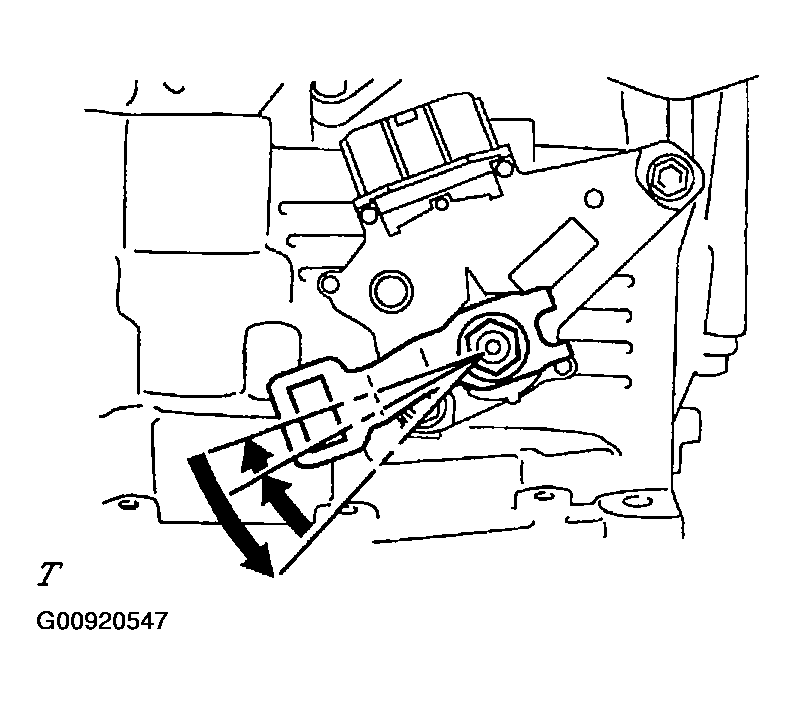

        Fig 10: Removing Control Shaft Lever
        G00920547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Align the groove with neutral basic line.

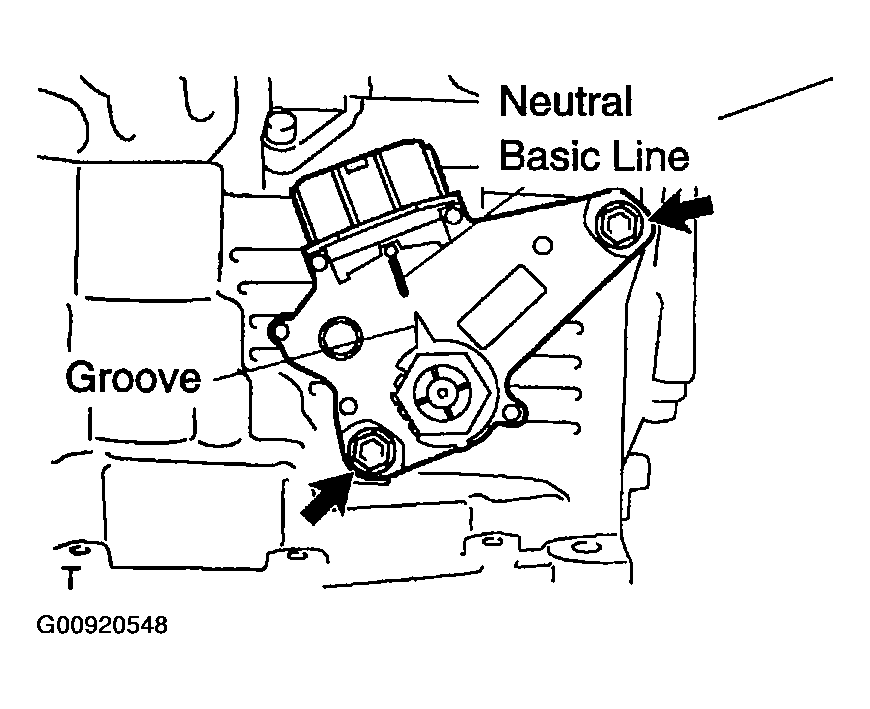

        Fig 11: Aligning Groove With Neutral Basic Line
        G00920548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Hold the switch in position and tighten the 2 bolts.
        1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
      9. Using a screwdriver, stake the nut with the lock plate.

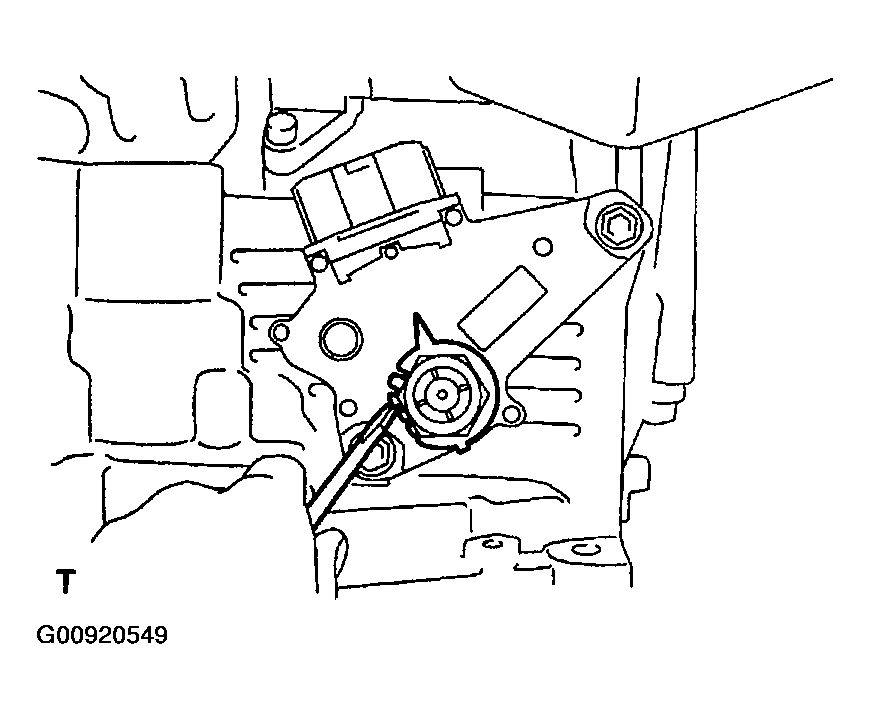

        Fig 12: Staking Nut With Lock Plate Using Screwdriver
        G00920549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. Install the control shaft lever, washer and nut.
        1. Torque: 12.7 N.m (130 kgf cm, 9 ft.lbf)
      11. Connect the park/neutral position switch connector.
  6. INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Temporarily install the control cable to the control shaft lever with nut.

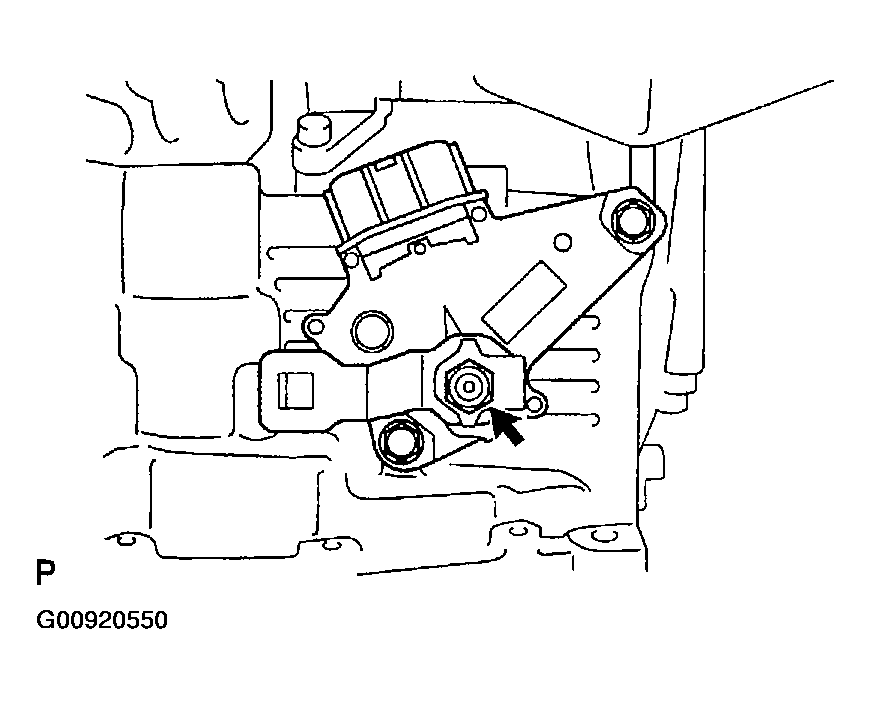

      Fig 13: Installing Control Cable To Control Shaft Lever With Nut
      G00920550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the control cable with the clip to the bracket.

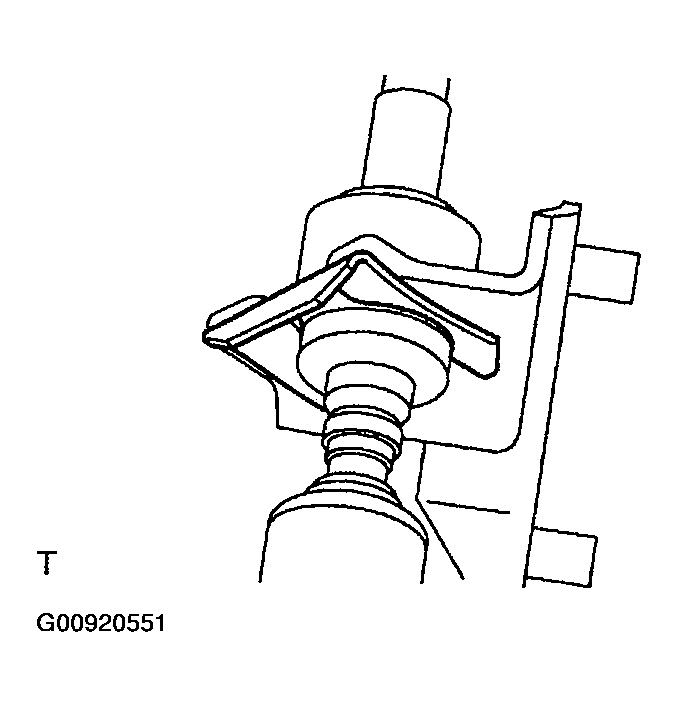

      Fig 14: Installing Control Cable With Clip To Bracket
      G00920551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Insert the cable securely.
  7. INSTALL BATTERY CARRIER
    1. Install the battery carrier and 4 bolts.

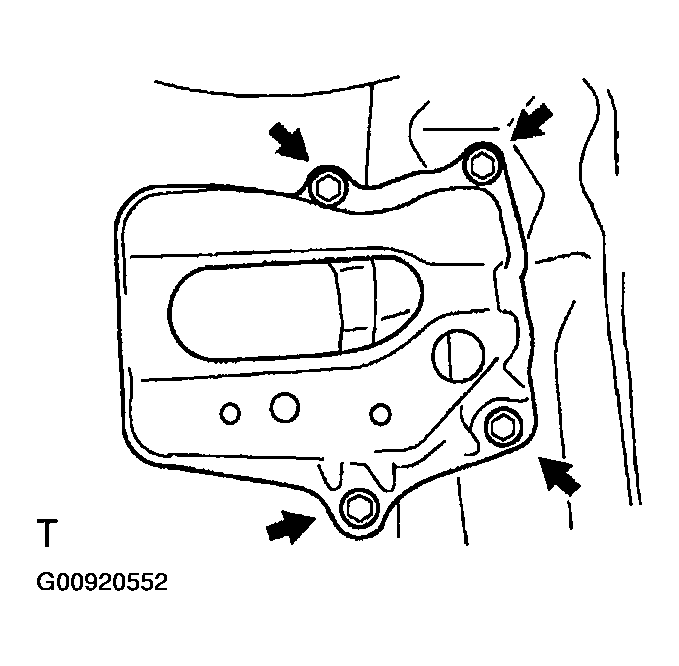

      Fig 15: Installing Battery Carrier And Bolts
      G00920552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Torque: 13 N.m (132 kgf cm, 10 ft.lbf)
  8. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT   )
  9. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT   )
  10. INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (See ADJUSTMENT   )
