Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System (SFI) - Diagnostics (2ZZ-GE)
>>
DTC P0420: Catalyst System Efficiency Below Threshold (Bank 1)
>>
Typical Enabling Conditions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Enabling Conditions

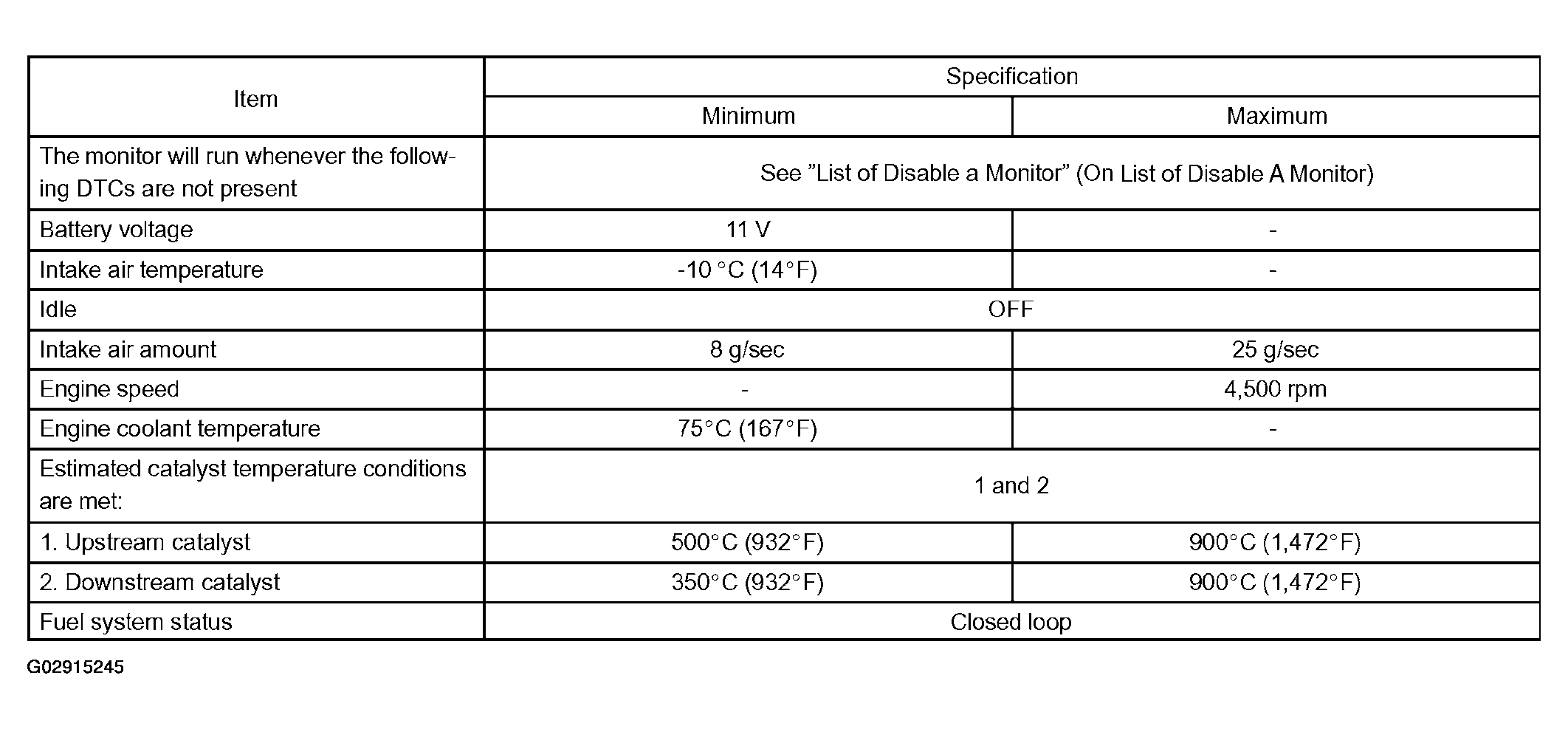

Fig 1: Typical Enabling Conditions Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
