Cruise Control Main Switch ASSY: Replacement

DISCONNECT BATTERY NEGATIVE TERMINAL
INSPECT PLACE FRONT WHEELS FACING STRAIGHT AHEAD
REMOVE HORN BUTTON ASSY (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE (MATRIX) )
REMOVE STEERING WHEEL ASSY (See OVERHAUL )
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
REMOVE CRUISE CONTROL MAIN SWITCH ASSY
1. Remove the 2 screws and cruise control main switch assy.

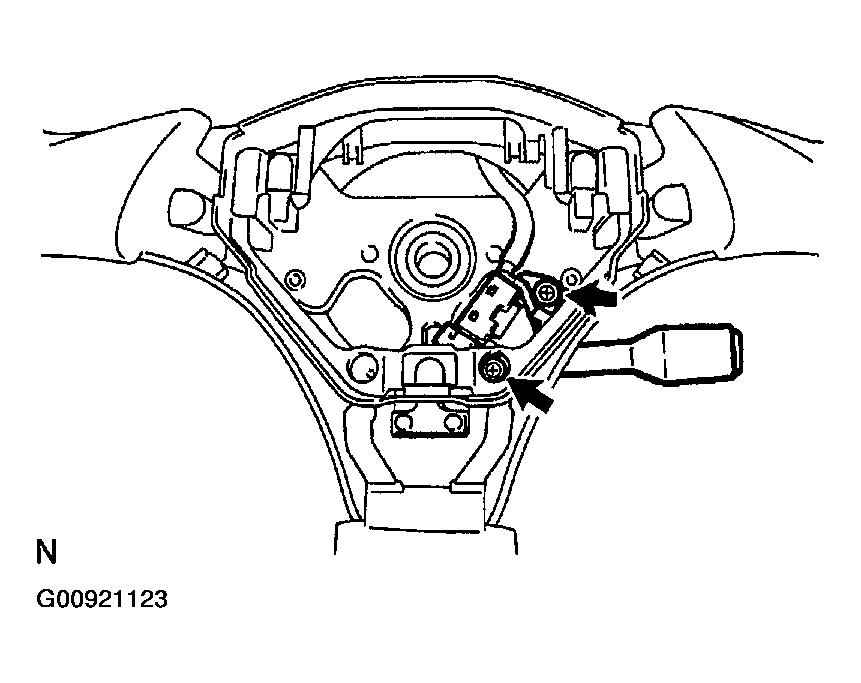

Fig 1: Removing Screws And Cruise Control Main Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CENTER SPIRAL CABLE (See OVERHAUL )
INSTALL STEERING WHEEL ASSY (See OVERHAUL )
INSPECT STEERING WHEEL CENTER POINT (See OVERHAUL )
INSPECT HORN BUTTON ASSY (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE (MATRIX) )
INSTALL HORN BUTTON ASSY (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE (MATRIX) )
INSPECT SRS WARNING LIGHT (See AIR BAG WARNING LIGHT CHECK )
