Engine Control System (SFI) - Diagnosis
>>
DTC P1120: Coolant Flow Control Valve Position Sensor Circuit, DTC P1122: Coolant Flow Control Valve Position Sensor Circuit Low, DTC P1123: Coolant Flow Control Valve Position Sensor Circuit High
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy

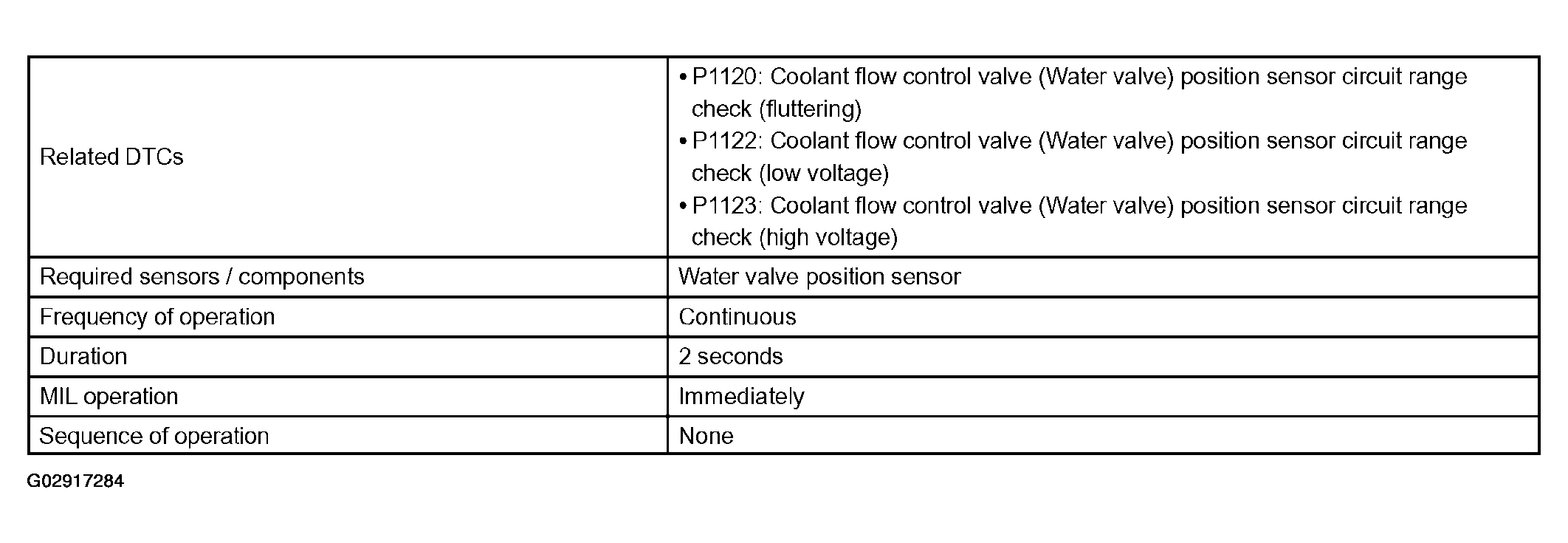

Fig 1: DTC P1120, P1122, P1123 Monitor Strategy Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
