Hybrid Control System - Diagnosis
>>
DTC P0A1D/166: Hybrid Powertrain Control Module, DTC P0A1D/167 Hybrid Powertrain Control Module, DTC P0A1D/197 Hybrid Powertrain Control Module, DTC P0A1P/200 Hybrid Powertrain Control Module
>>
Circuit Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Description
The HV control ECU performs self-checks to detect an internal operating malfunction in the ECU.

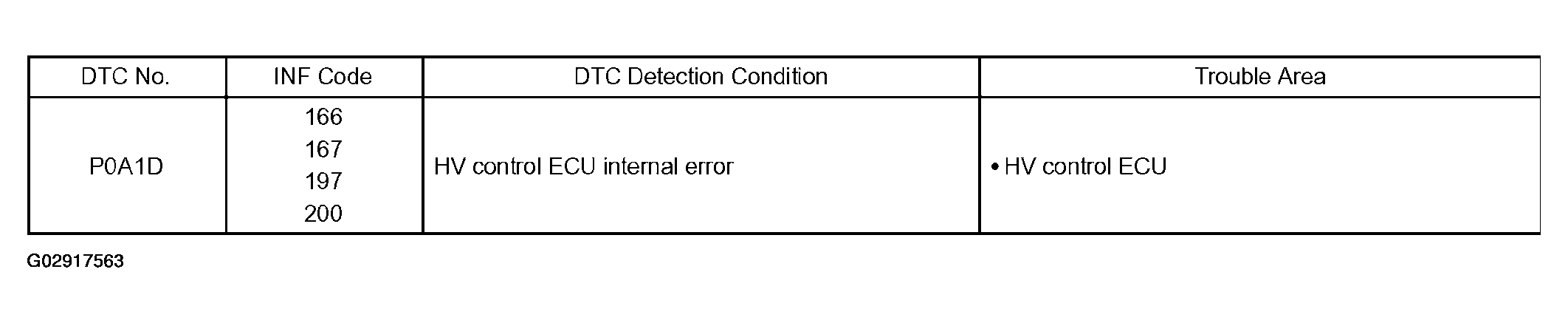

Fig 1: DTC P9A1D Circuit Description
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
