Circuit Description

The HV control ECU performs self-checks to detect an internal operating malfunction in the ECU.

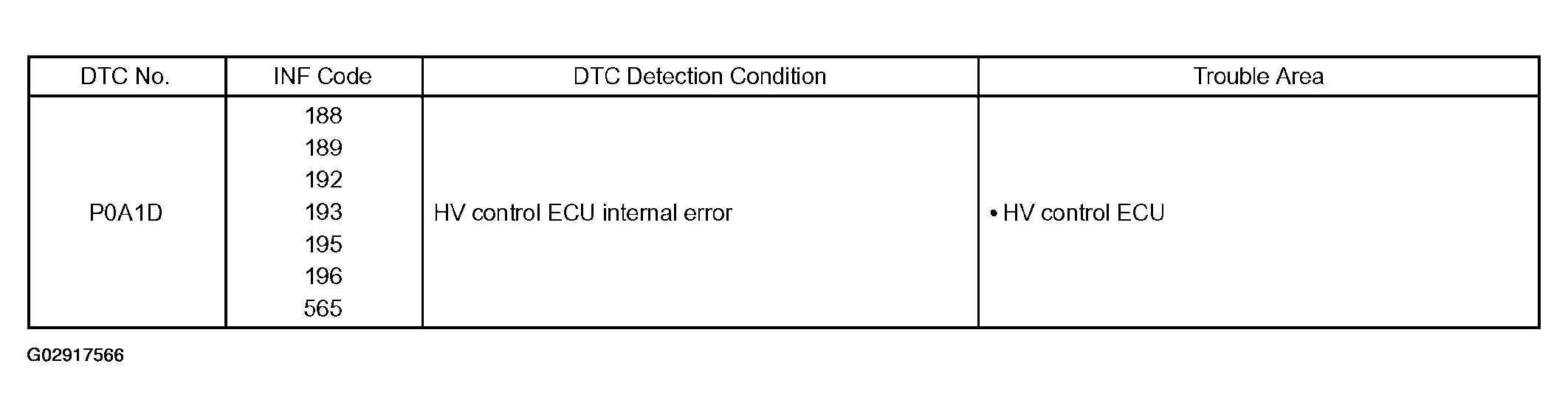

Fig 1: DTC P0A1D Circuit Description
G02917566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
