DTC P2122/1041: Throttle/Pedal Position Sensor/Switch "D" Circuit Low Input, DTC P2123/1051 Throttle/Pedal Position Sensor/Switch "D" Circuit High Input, DTC P2127/1071 Throttle/Pedal Position Sensor/Switch "E" Circuit Low Input, DTC P2128/1081 Throttle/Pedal Position Sensor/Switch "E" Circuit High Input: Wiring Diagram

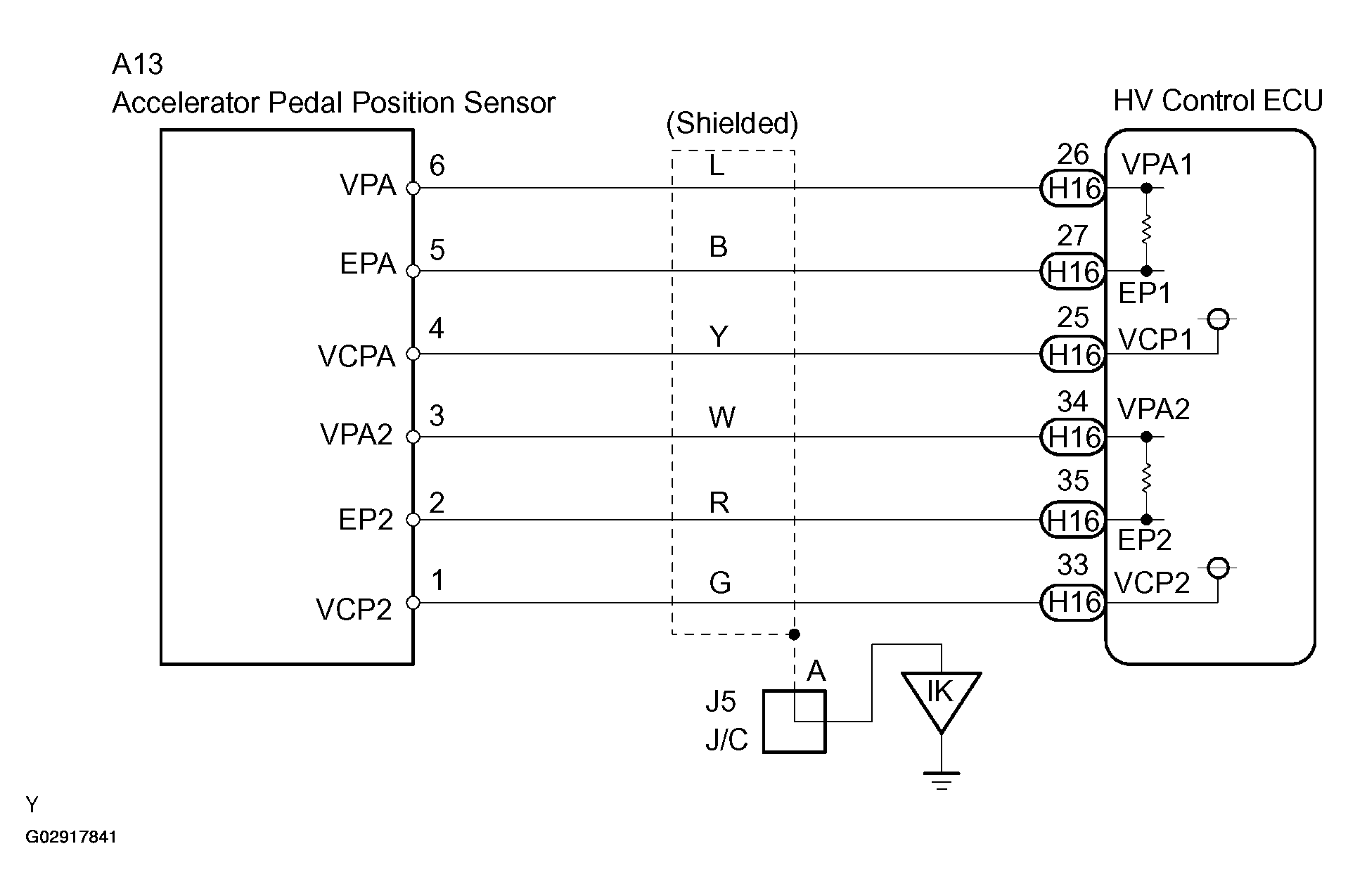

Fig 1: Wiring Diagram - Accelerator Pedal Position
G02917841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
