Circuit Description

The HV control ECU detects a malfunction of the collision signal circuit from the airbag ECU and gives warning to the driver.

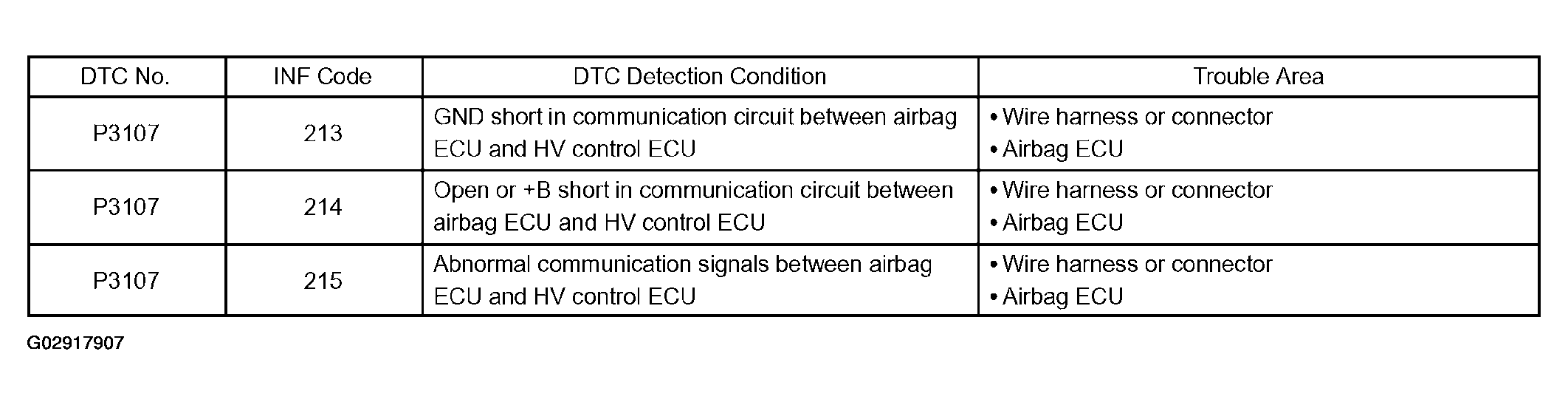

Fig 1: DTC Trouble Detection Table
G02917907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
