DTC P3107/213: Lost Communication With Airbag System Control Module, DTC P3107/214 Lost Communication With Airbag System Control Module, DTC P3107/215 Lost Communication With Airbag System Control Module: Wiring Diagram

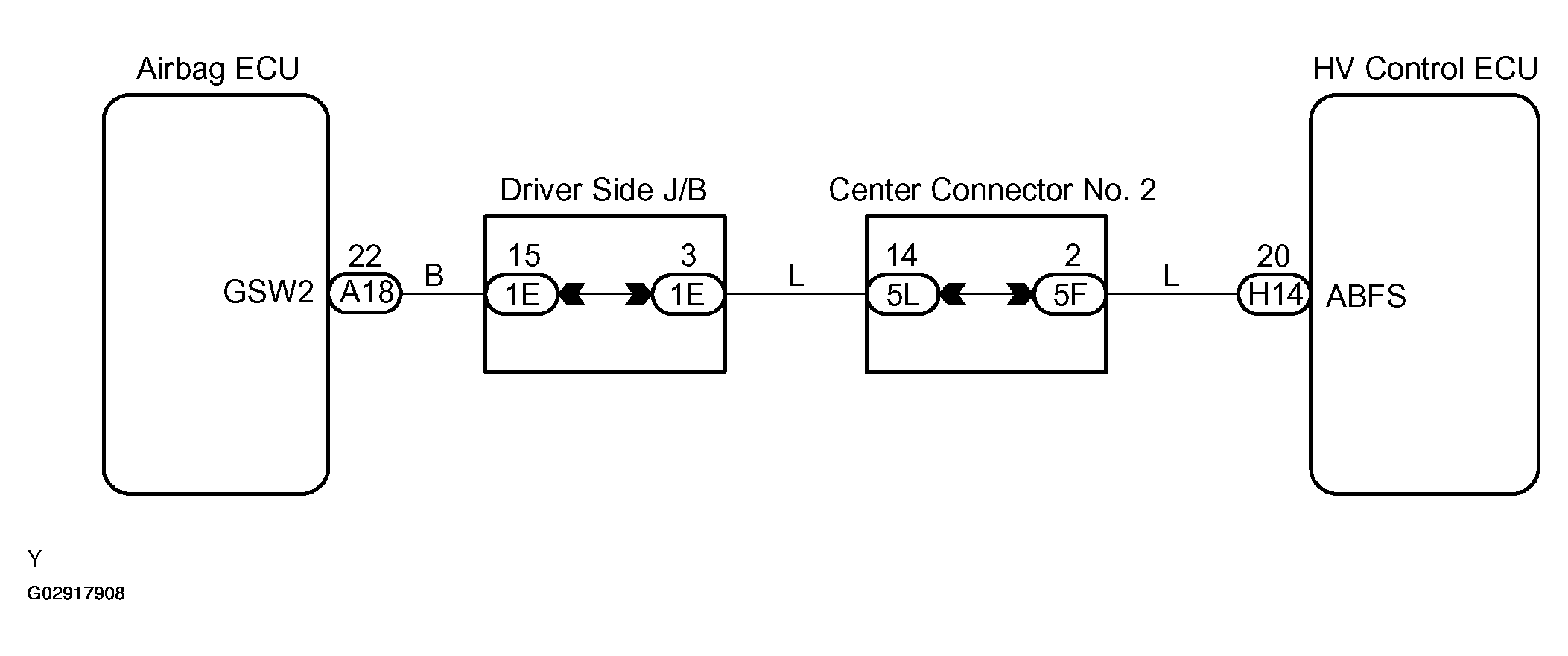

Fig 1: Wiring Diagram- Airbag ECU
G02917908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
