Circuit Description

The HV control ECU detects a wiring malfunction in the serial communication line of the A/C inverter.

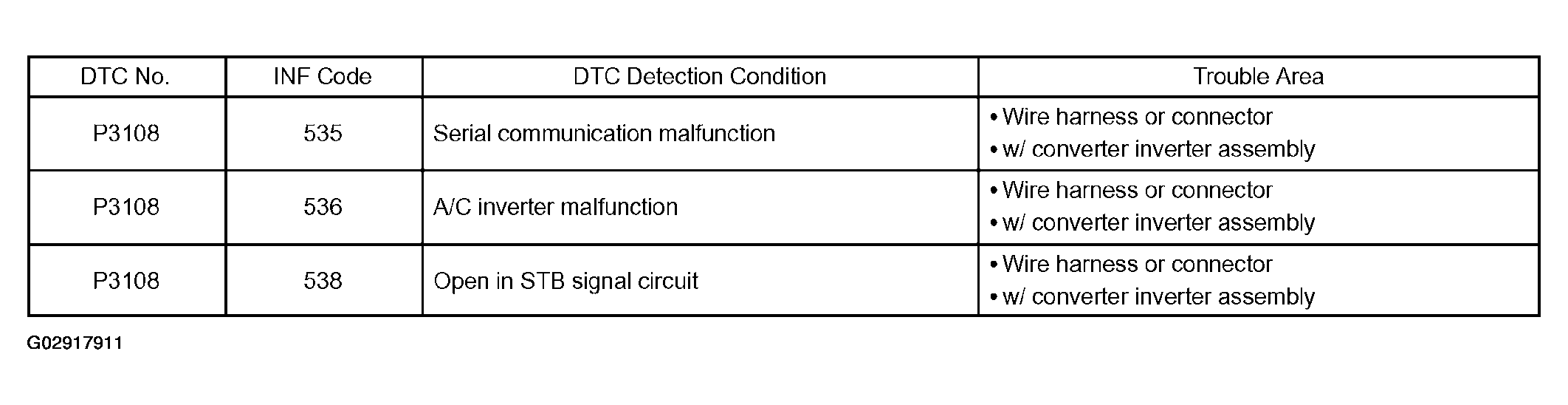

Fig 1: DTC Trouble Detection Table
G02917911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
