DTC P3108/535: Lost Communication With A/C System Control Module, DTC P3108/536 Lost Communication With A/C System Control Module, DTC P3108/538 Lost Communication With A/C System Control Module: Wiring Diagram

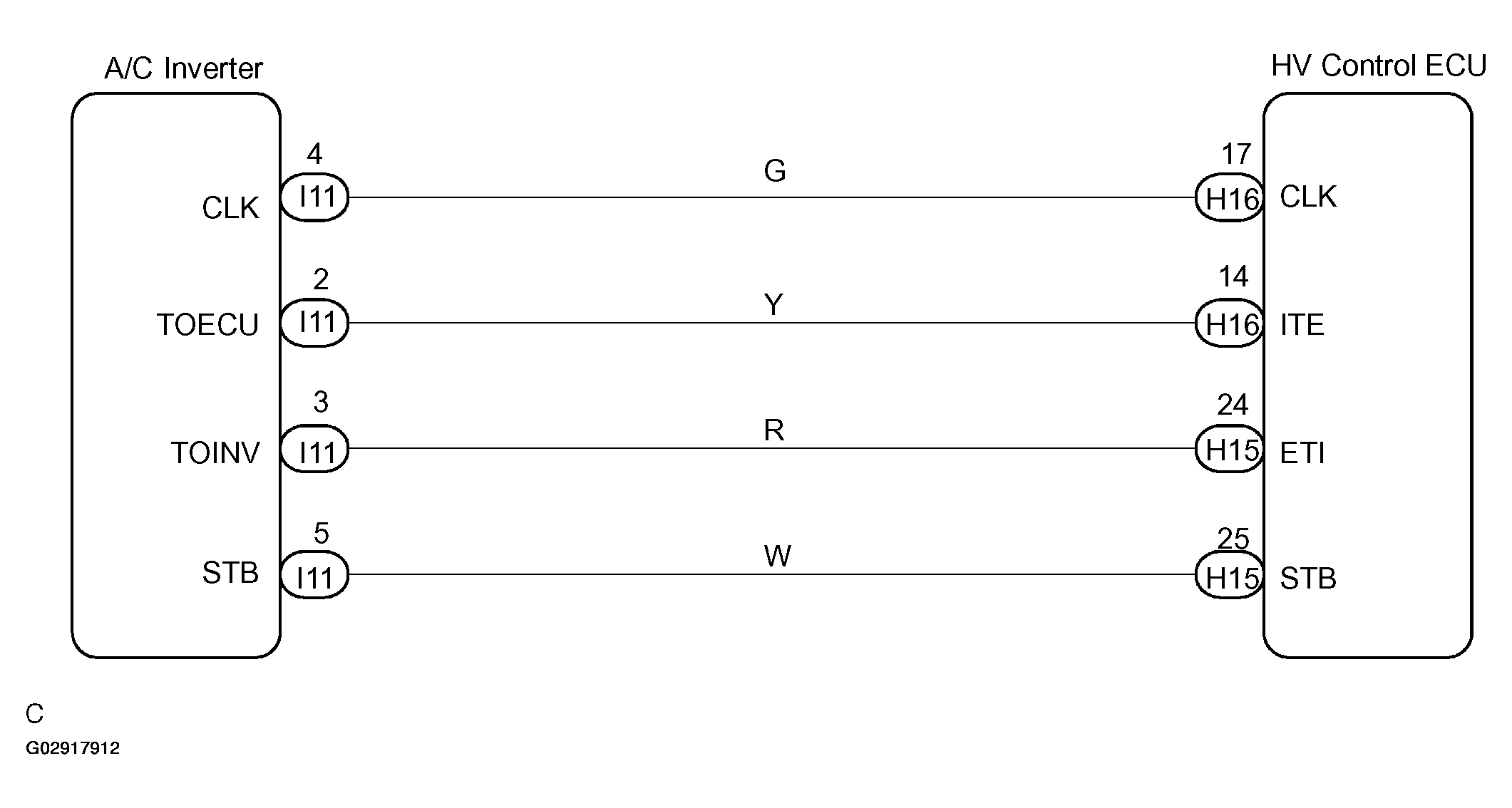

Fig 1: Wiring Diagram - A/C Inverter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
