Circuit Description

The power steering ECU assy receives signals from the skid control ECU (ECB ECU) via CAN communication.

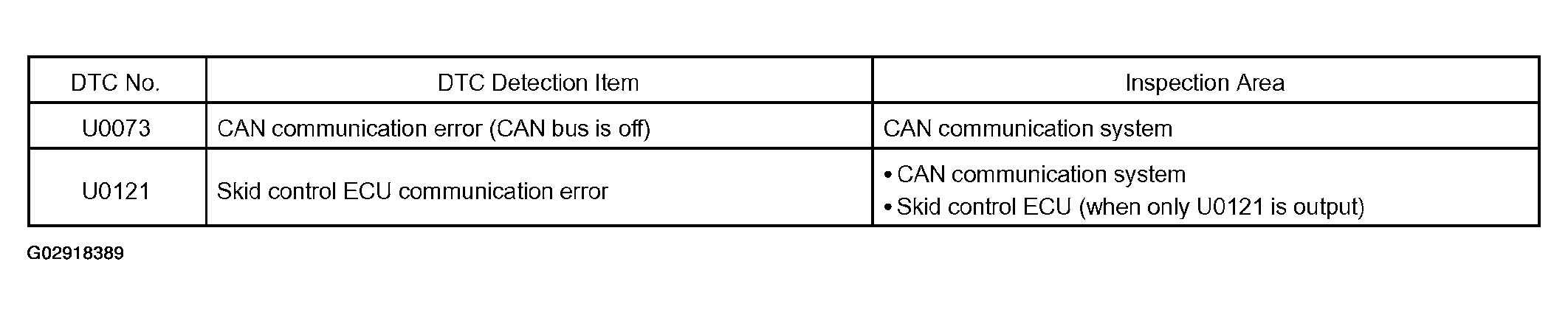

Fig 1: DTC (U0073) (U0121) Circuit Description

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When two or more DTCs starting with "U" are output simultaneously, inspect the connectors and wire harness of each ECU.
