DTC U0073 Control Module Communication Bus Off DTC U0121 Lost Communication With Anti-Lock Brake System (Abs) Control Module: Wiring Diagram

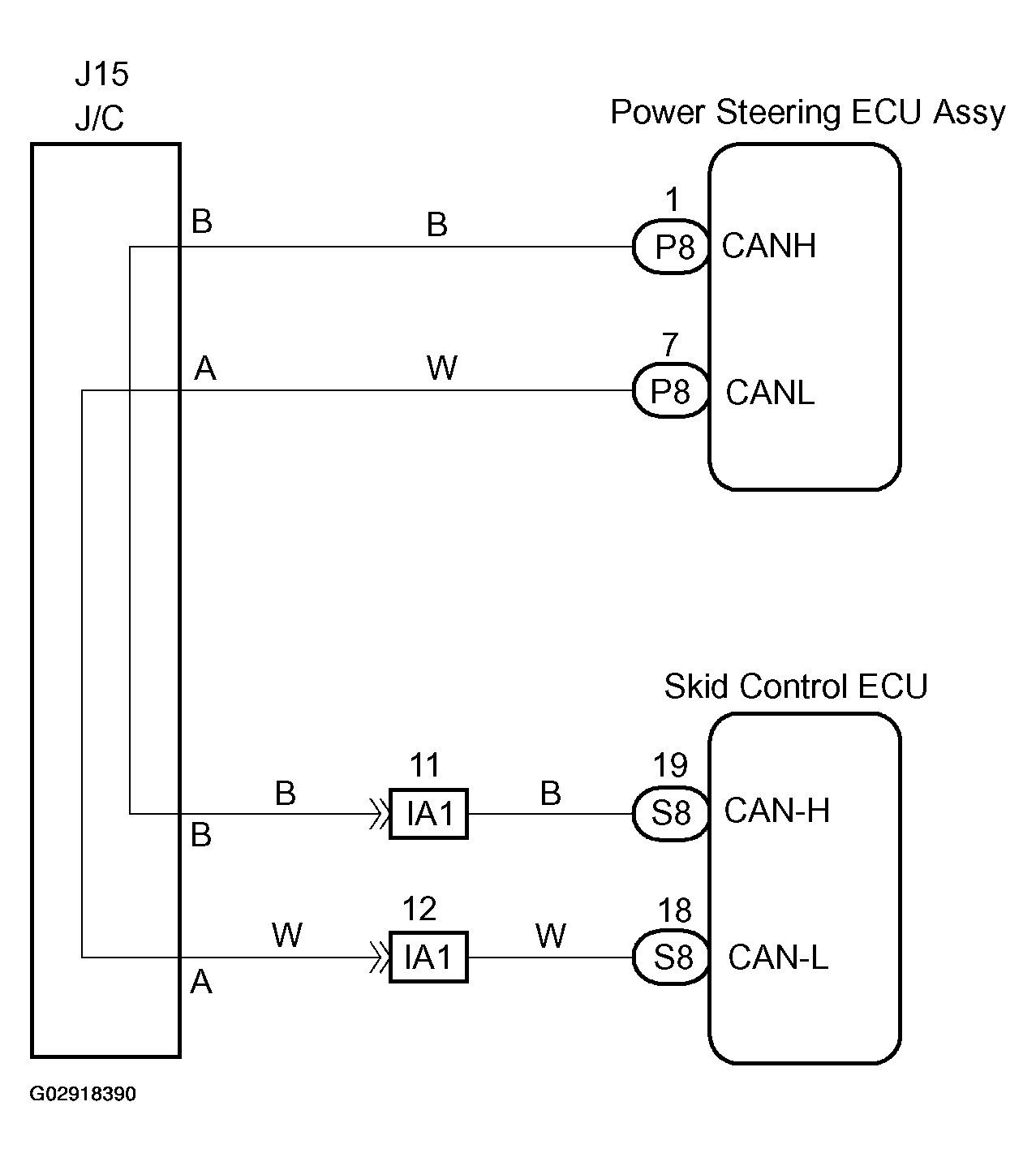

Fig 1: Skid Control ECU Communication Wiring Diagram
G02918390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
