Front Door: Components

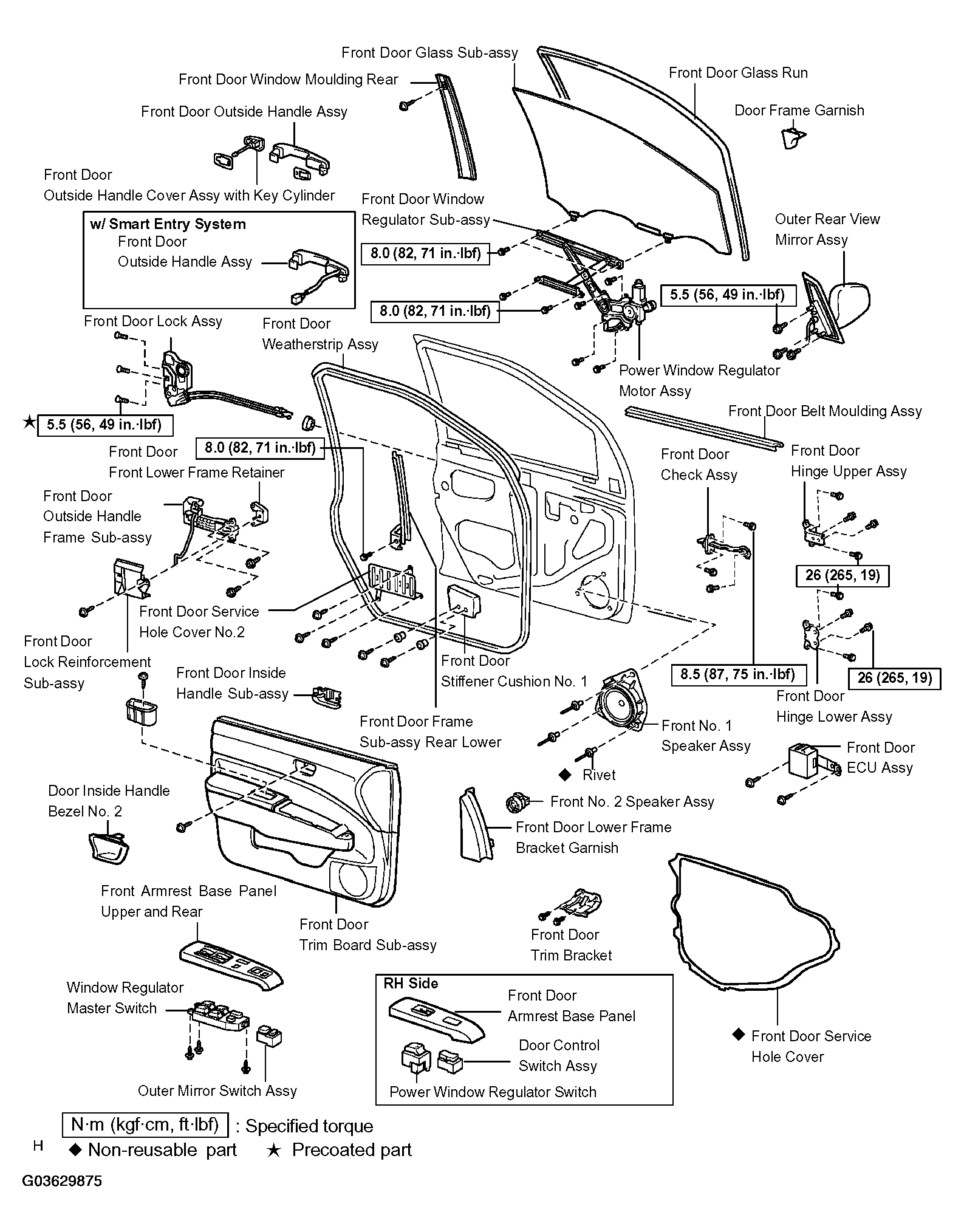

Fig 1: Identifying Component Of Front Door

G03629875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
