Auto Up/Down Function Does Not Operate: Wiring Diagram

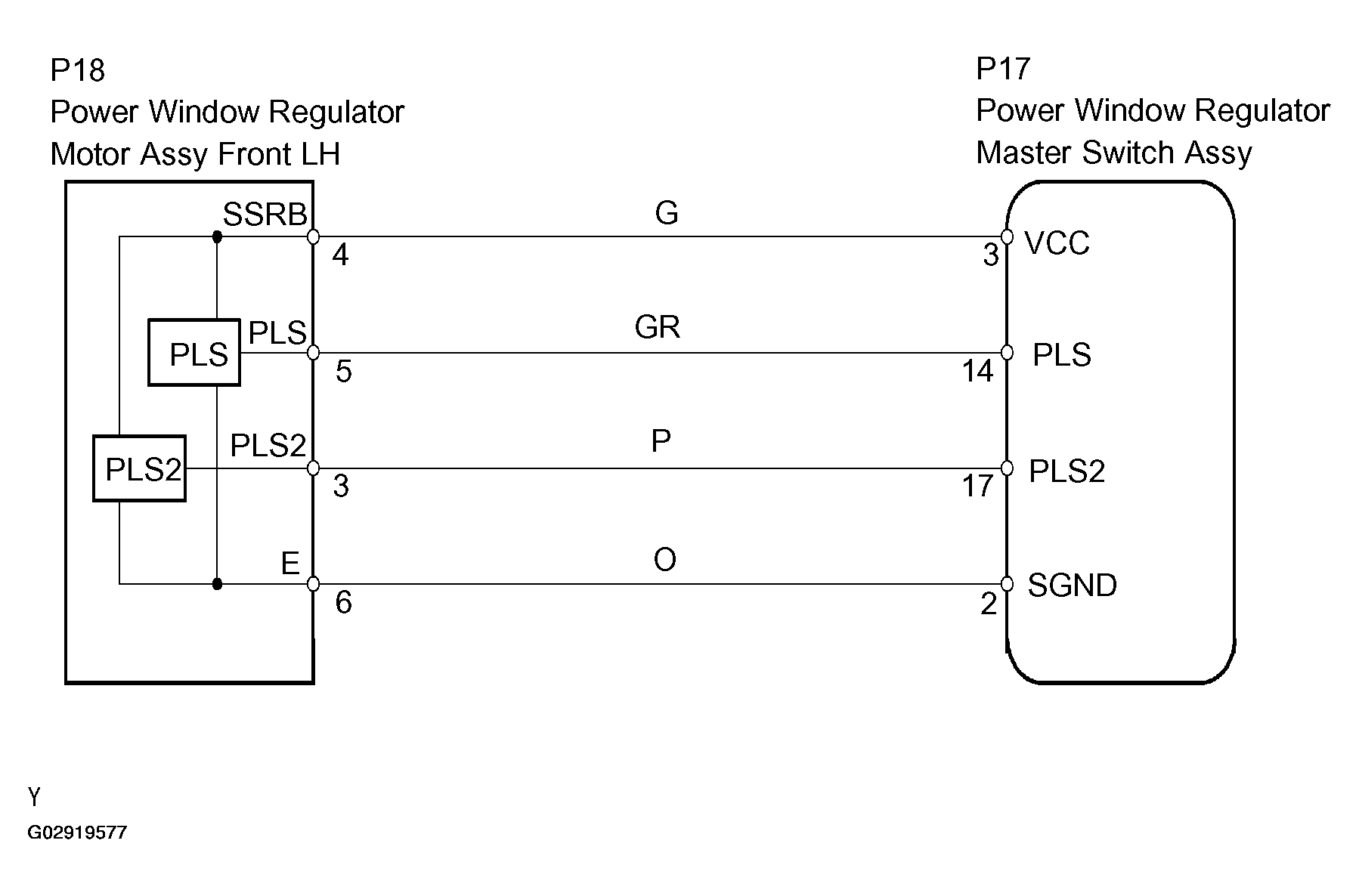

Fig 1: Wiring Diagram - Auto Up/Down Function
G02919577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
