Inspection Procedure

1. Disconnect the P17 master switch connector.
2. Measure the voltage between the terminal of the wire harness side connector and body ground.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   P17-7 (BW) - Body ground	Constant	10 to 14 V
   P17-11 (BDR) - Body ground	Power switch ON (IG)	10 to 14 V

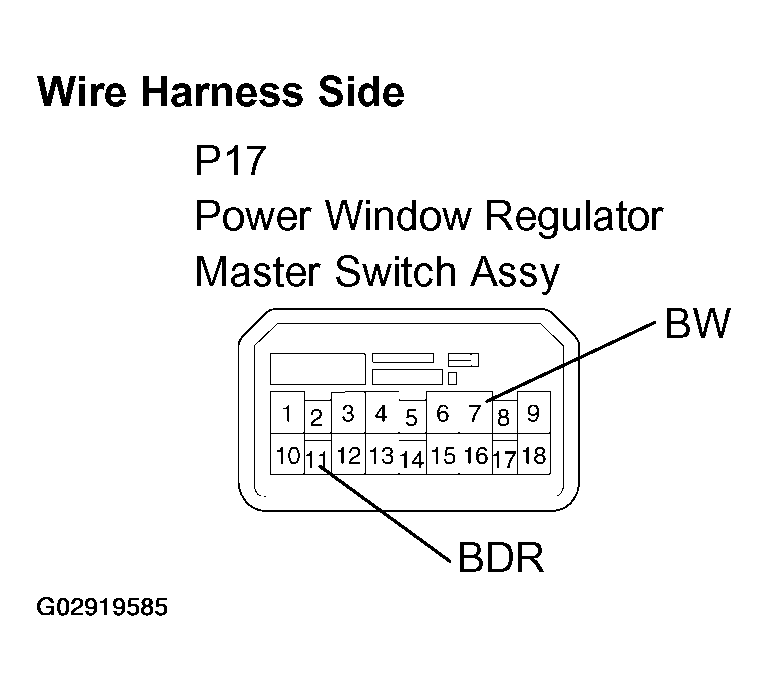

Fig 1: Identifying P17 Power Window Regulator Master Switch Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (INSTRUMENT PANEL J/B ASSY - POWER WINDOW MASTER SWITCH)

OK: Go to next step.

1. Disconnect the P17 master switch connector.
2. Using a service wire, connect the terminals according to the table below.
3. Check operation of the power window regulator motor assy front LH.

   OK:

   CONNECTION SPECIFIED CONDITION



   Connection	Specified Condition
   P17-4 (DU) - P17-7 (BW)	Power window moves UP
   P17-9 (DD) - Body ground	Power window moves UP
   P17-4 (DU) - Body ground	Power window moves DOWN
   P17-7 (BW) - P17-9 (DD)	Power window moves DOWN

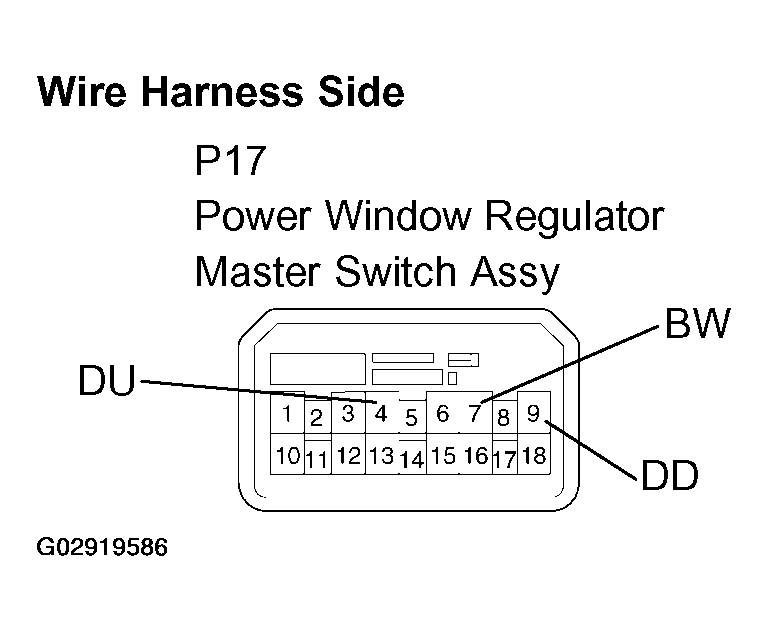

Fig 2: Identifying P17 Power Window Regulator Master Switch Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 3

OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

1. Remove the master switch.
2. Measure the resistance between the terminals of the connector when the switch is operated.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	AUTO Switch	Specified Condition
   1 - 9, 4-7	UP	Below 1 Ω
   1 - 4, 1 - 9	OFF	Below 1 Ω
   1 - 9, 4 - 7	DOWN	Below 1 Ω

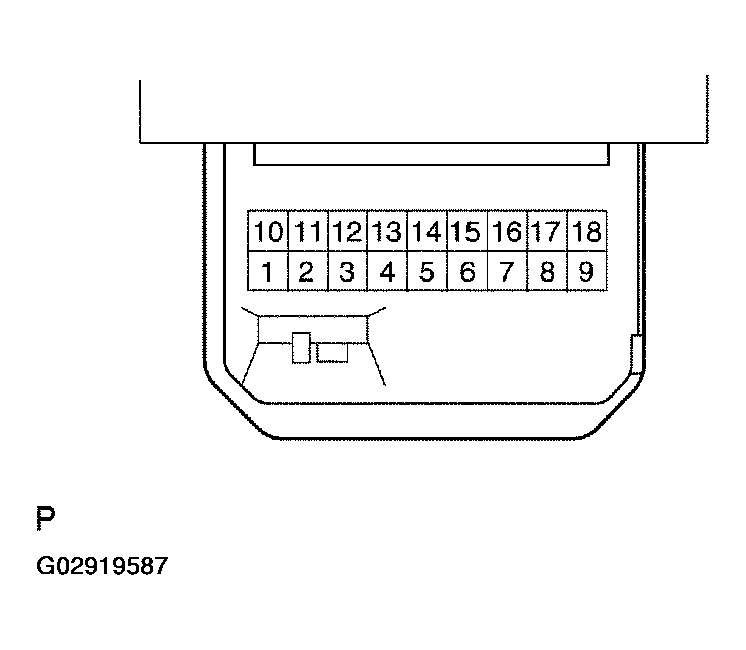

Fig 3: Identifying Power Window Regulator Master Switch Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

OK: Go to next step.

1. Disconnect the P17 master switch connector.
2. Disconnect the P18 motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   P17-9 (DD) - P18-1 (D)	Below 1 Ω
   P17-4 (DU) - P18-2 (U)	Below 1 Ω
   P17-9 (DD) - Body ground	10 kΩ or higher
   P17-4 (DU) - Body ground	10 kΩ or higher

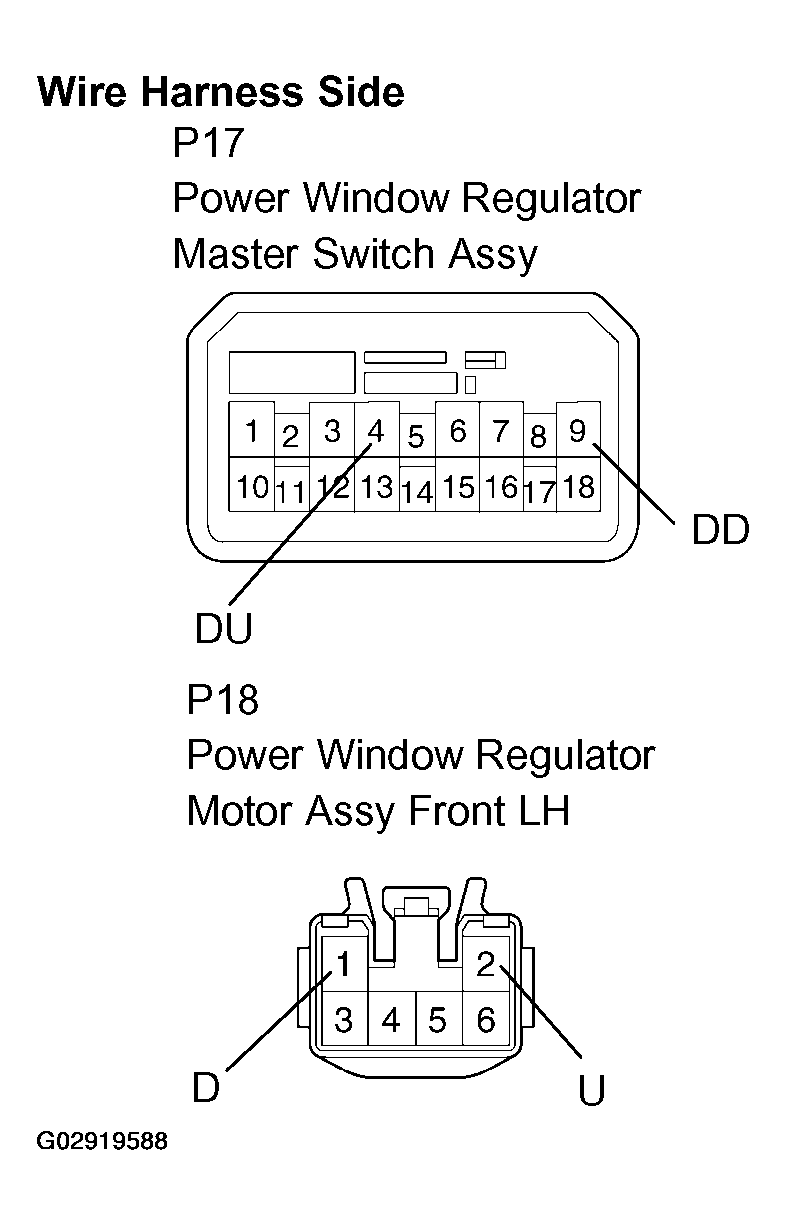

Fig 4: Identifying Power Window Regulator Master Switch Assembly And Power Window Motor Assembly Front LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY FRONT LH
