Diagnostic Trouble Code Chart

HINT:

If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the page for the respective "DTC No." in the DTC chart. DTC chart of ABS:

Fig 1: DTC Chart ABS

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Drive the vehicle at the vehicle speed of 31 mph (50 km h) and keep depressing the brake pedal strongly for approximately 3 seconds.
2. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
3. Clear the DTC (see DTC CHECK CLEAR  ).

HINT:

In some cases, the hand-held tester cannot be used when ABS warning light remains on.

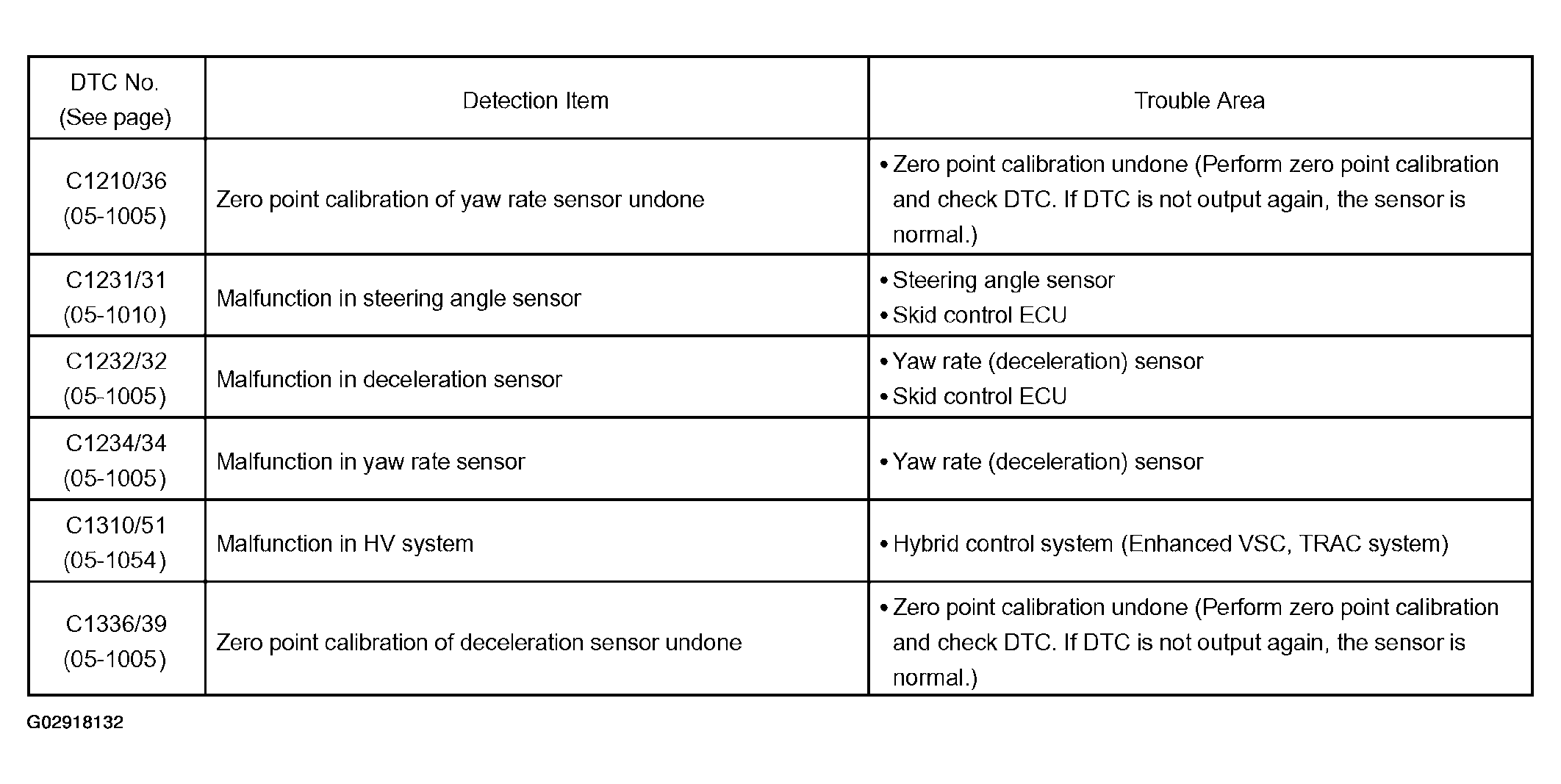

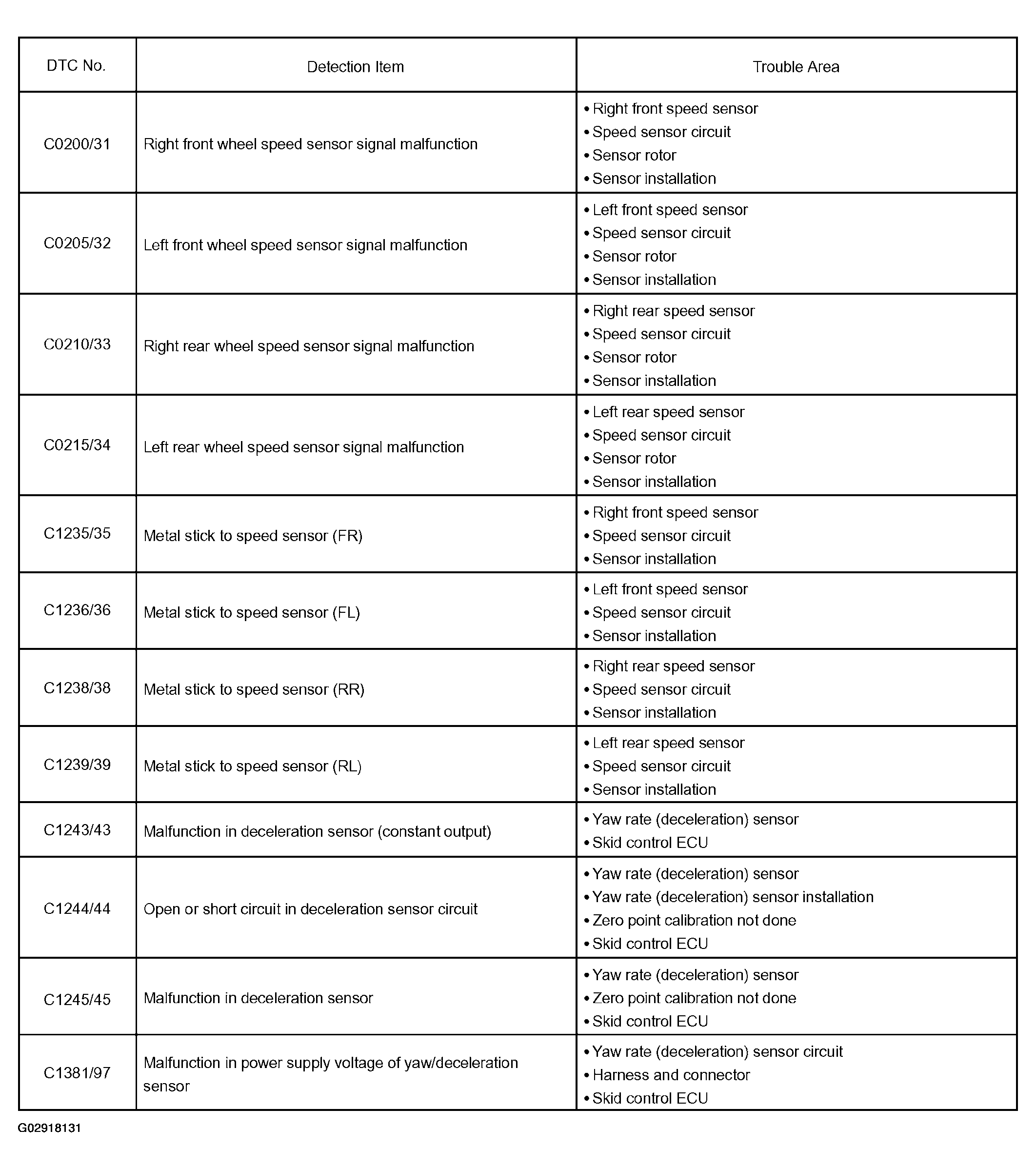

DTC chart of Enhanced VSC:

Fig 2: Enhanced VSC DTC Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

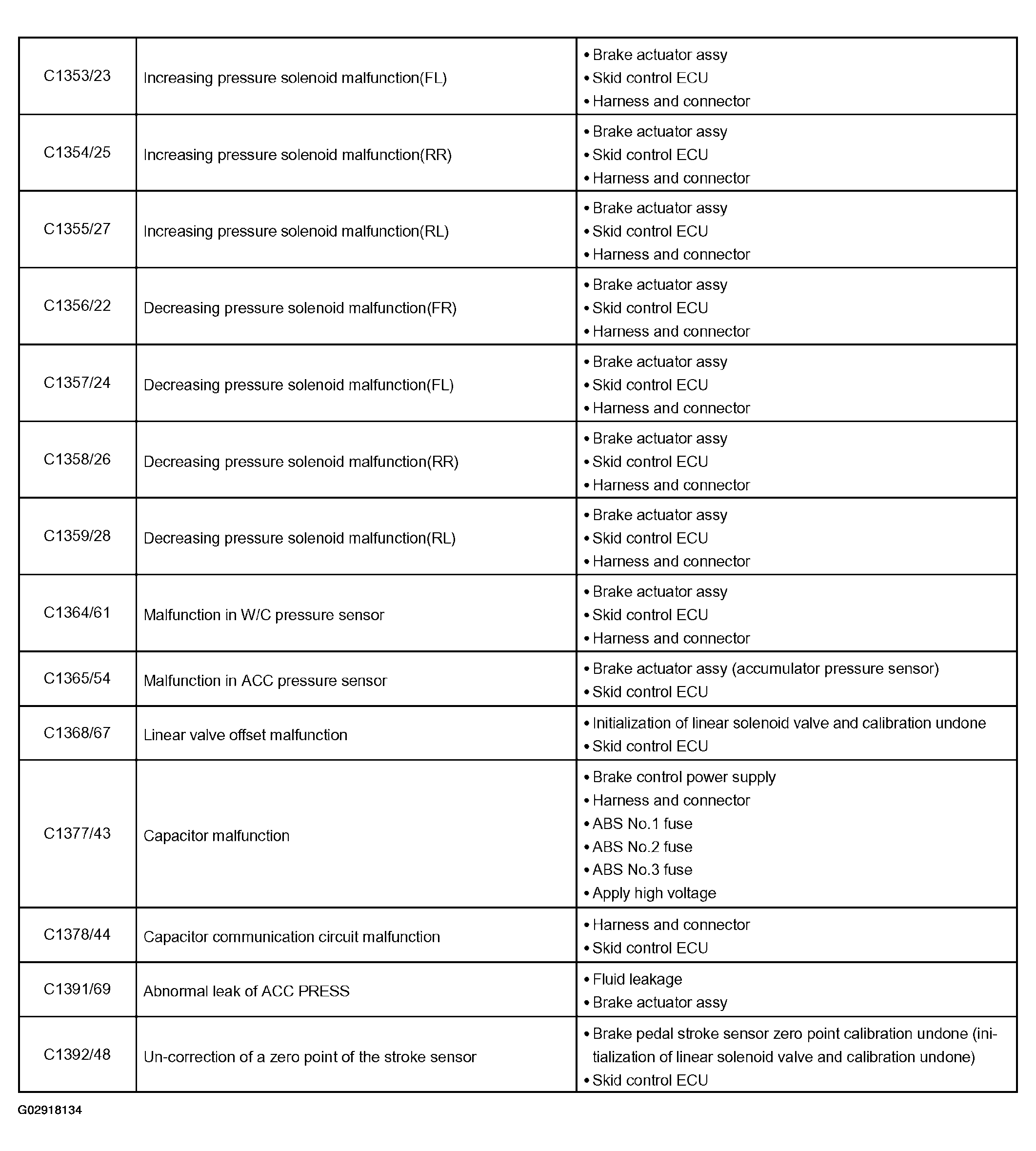

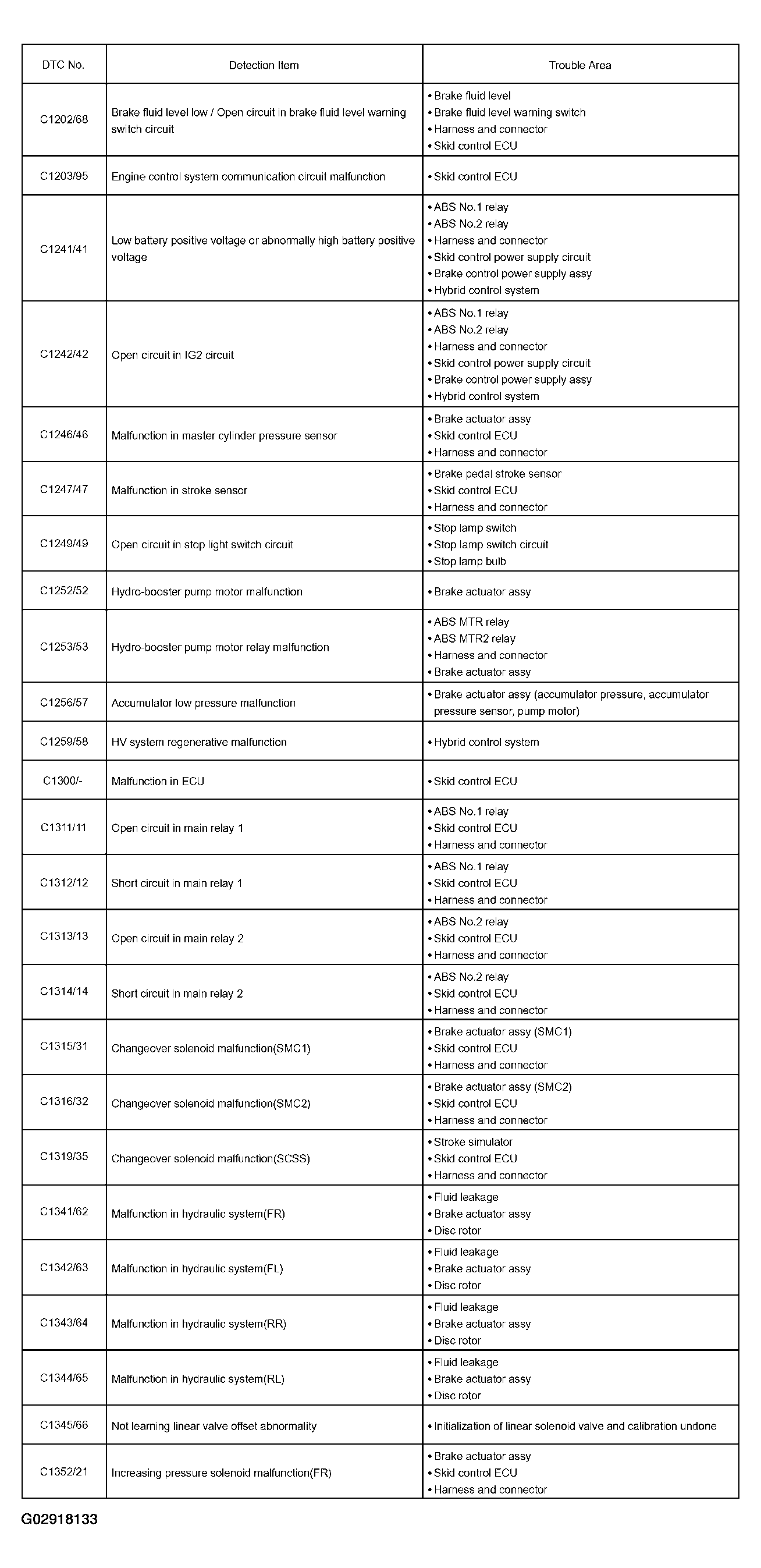

DTC chart of ECB:

Fig 3: DTC Chart Of ECB (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: DTC Chart Of ECB (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
