Push Button Start System - Diagnosis: Location

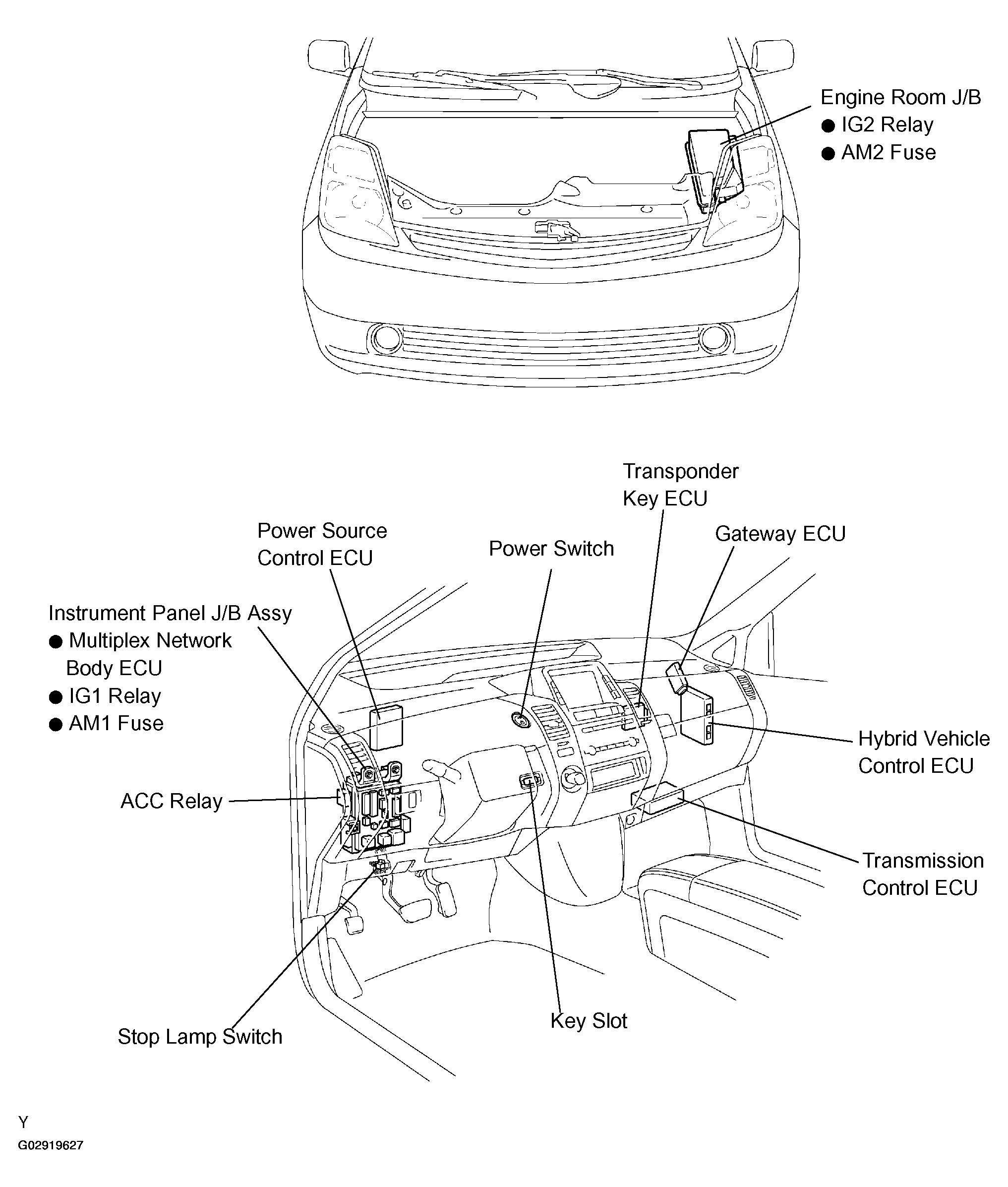

Fig 1: Location Pushbutton Start System Components
G02919627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
