DTC P0110: Intake Air Temperature Circuit, DTC P0112: Intake Air Temperature Circuit Low Input, DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

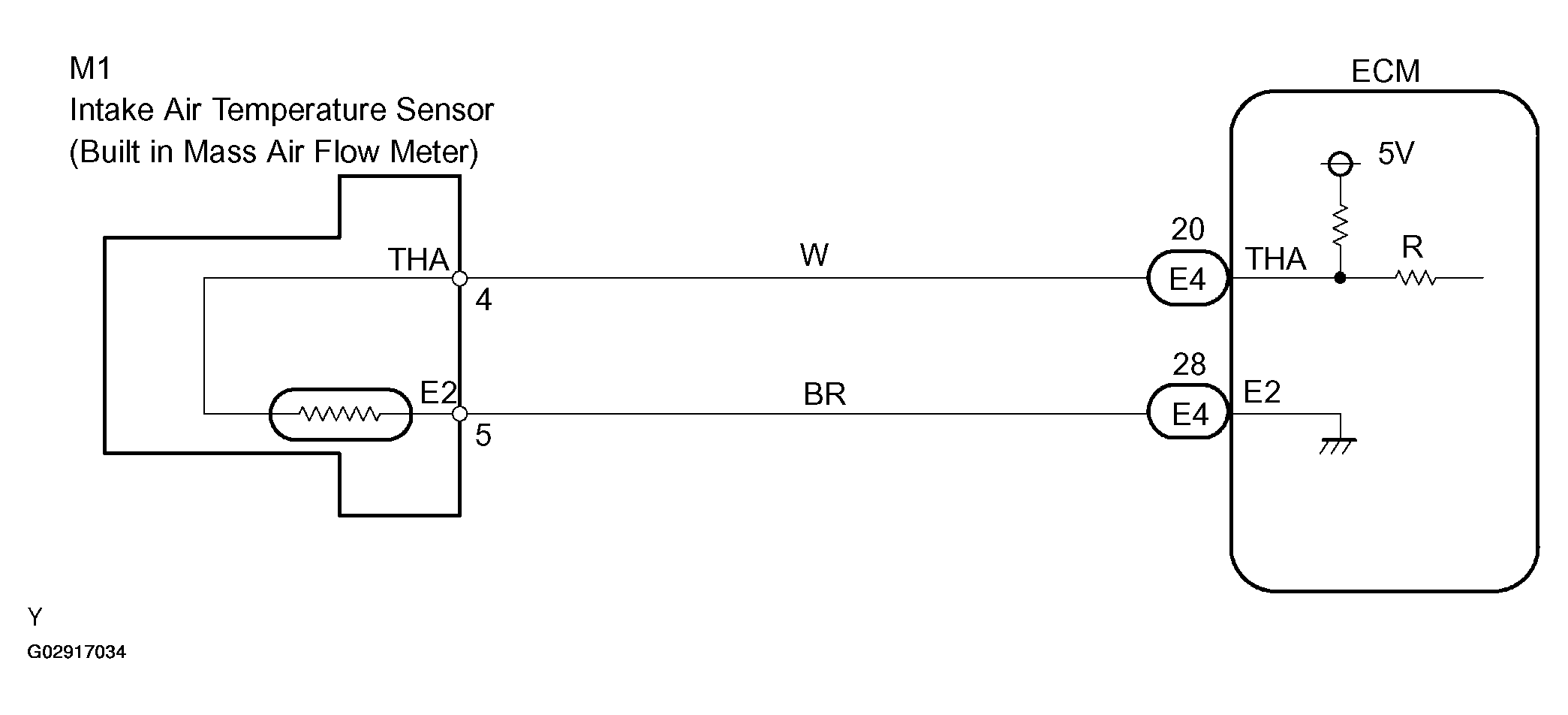

Fig 1: WIRING DIAGRAM - INTAKE AIR TEMPERATURE CIRCUIT
G02917034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
