Engine Control System (SFI) - Diagnosis
>>
DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy

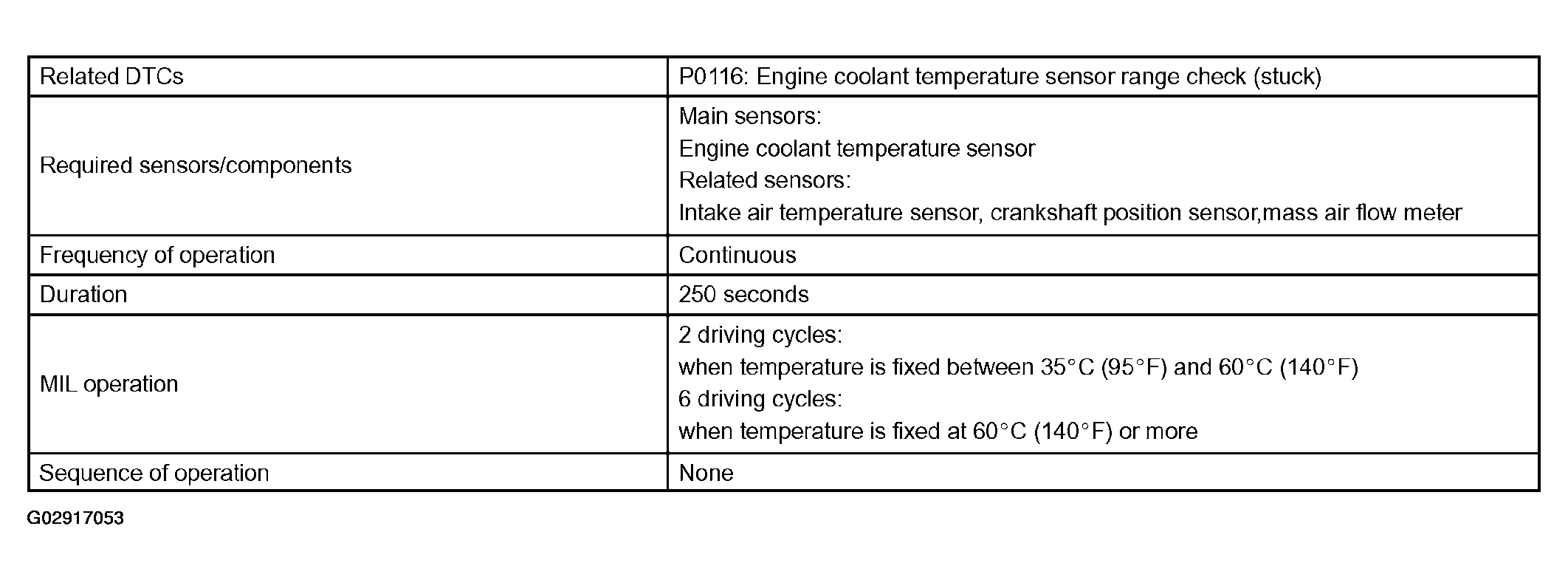

Fig 1: Monitor Starter Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
