Confirmation Driving Pattern For Readiness Monitor

PURPOSE (See )

HINT:

Performing this confirmation pattern will activate the catalyst monitoring by the ECM. This is very useful for verifying the completion of repairs.

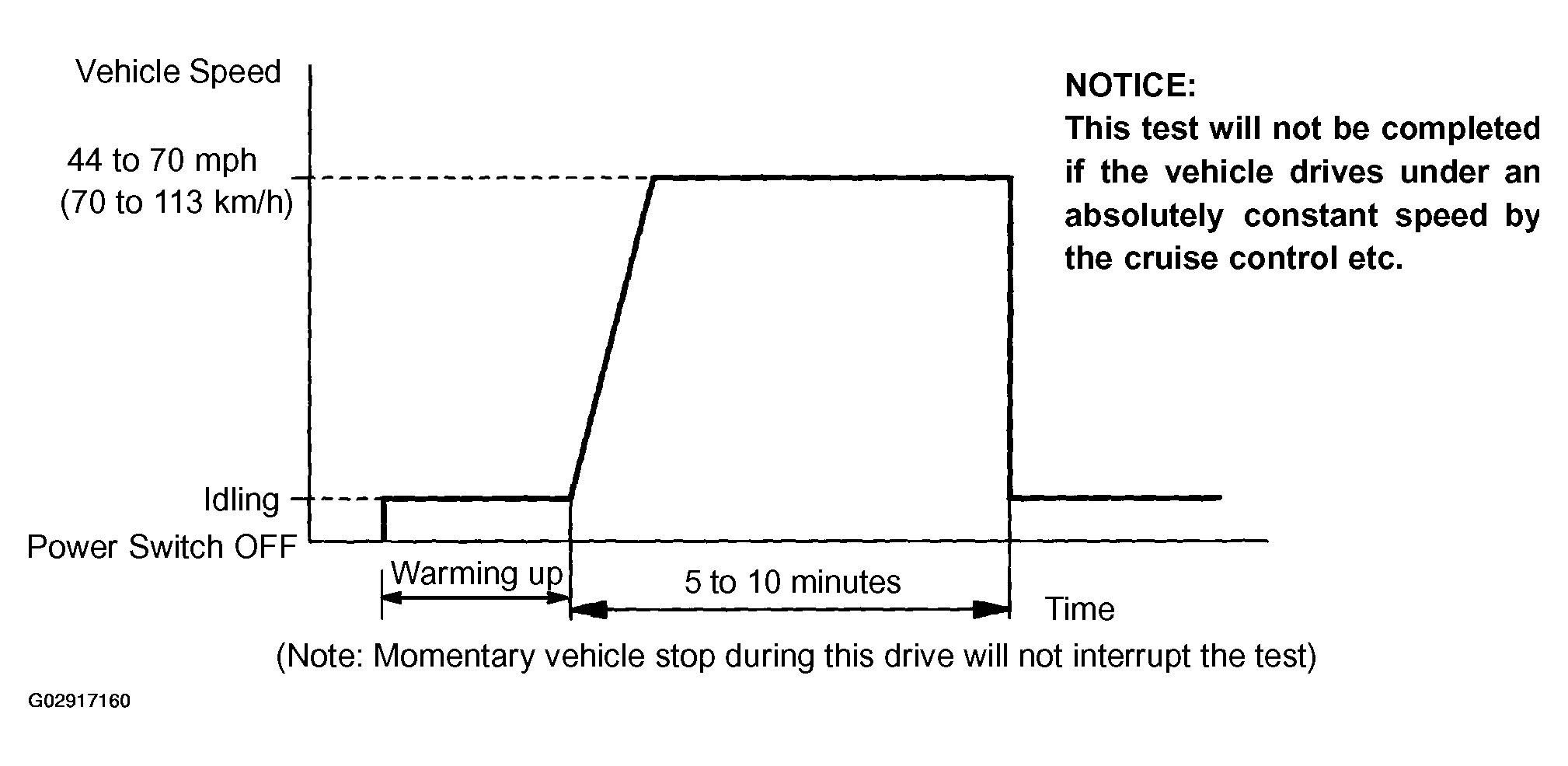

Fig 1: Driving Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Clear the DTCs.
2. Connect the hand-held tester to the DLC3.
3. Select the item: DIAGNOSIS / CARB OBD II / READINESS TESTS. Check that CAT EVAL is INCMPL (incomplete).
4. Drive the vehicle according to the confirmation driving pattern. Note the state of the Readiness Tests. They will change to COMPL (complete) as the CAT evaluation monitors operate.
5. Select the item: DIAGNOSIS / ENHANCED OBD II / DTC INFO / PENDING CODES. Check if any DTC (any pending code) is set.

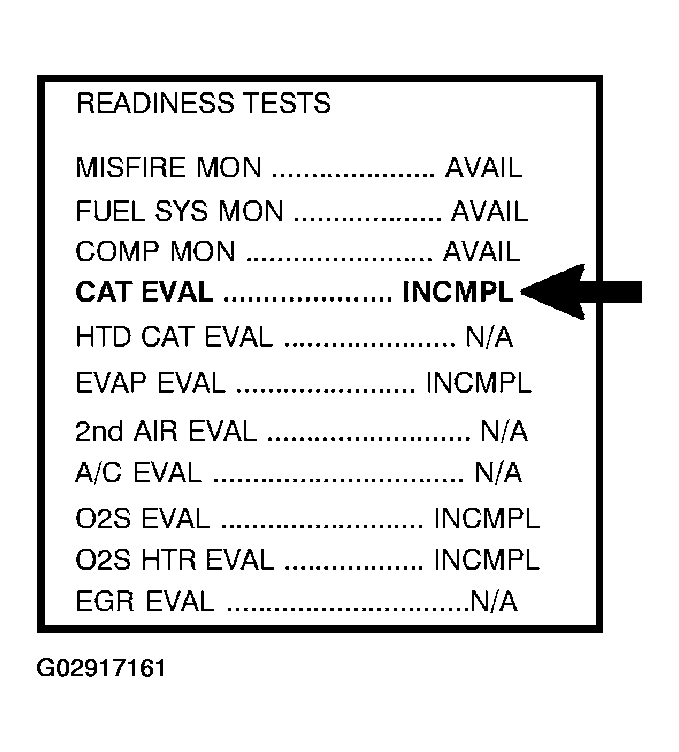

   Fig 2: Readiness Test Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the READINESS CODE of CAT EVAL was INCMPL and any DTC (includes pending codes) was not set, extend the driving time.

   NOTE: If you do not have the hand-held tester, perform again the same confirmation driving pattern after turning OFF the power switch upon finishing the first confirmation driving pattern.
