Circuit Description

Refer to DTC P1120 on DTC P1120 COOLANT FLOW CONTROL VALVE POSITION SENSOR CIRCUIT, DTC P1122 COOLANT FLOW CONTROL VALVE POSITION SENSOR CIRCUIT LOW, DTC P1123 COOLANT FLOW CONTROL VALVE POSITION SENSOR CIRCUIT HIGH  .

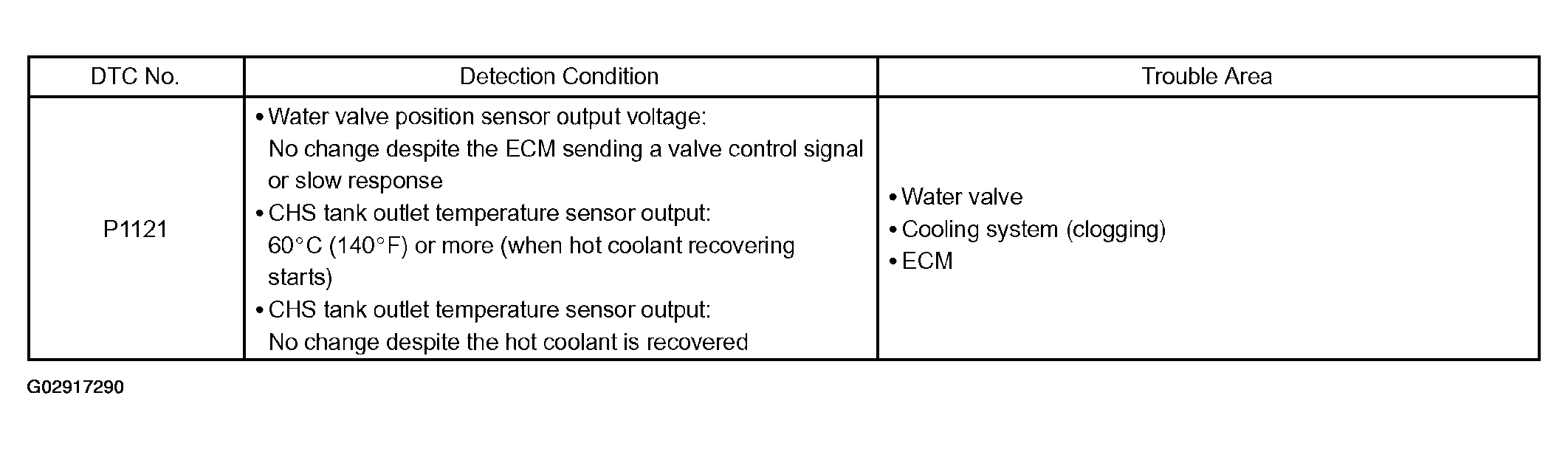

Fig 1: DTC P1121 Coolant Flow Control Valve Position Sensor Circuit Description DTC Table
G02917290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
