Data List/Active Test

DATA LIST
HINT:

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading DATA LIST early in troubleshooting is one way to shorten labor time.

NOTE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
1. Turn the power switch ON (READY) and warm up the engine.
2. Turn the power switch OFF.
3. Connect the hand-held tester to the DLC3.
4. Turn the power switch ON (IG).
5. Turn the hand-held tester ON.
6. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST.
7. According to the display on the tester, read items in DATA LIST.

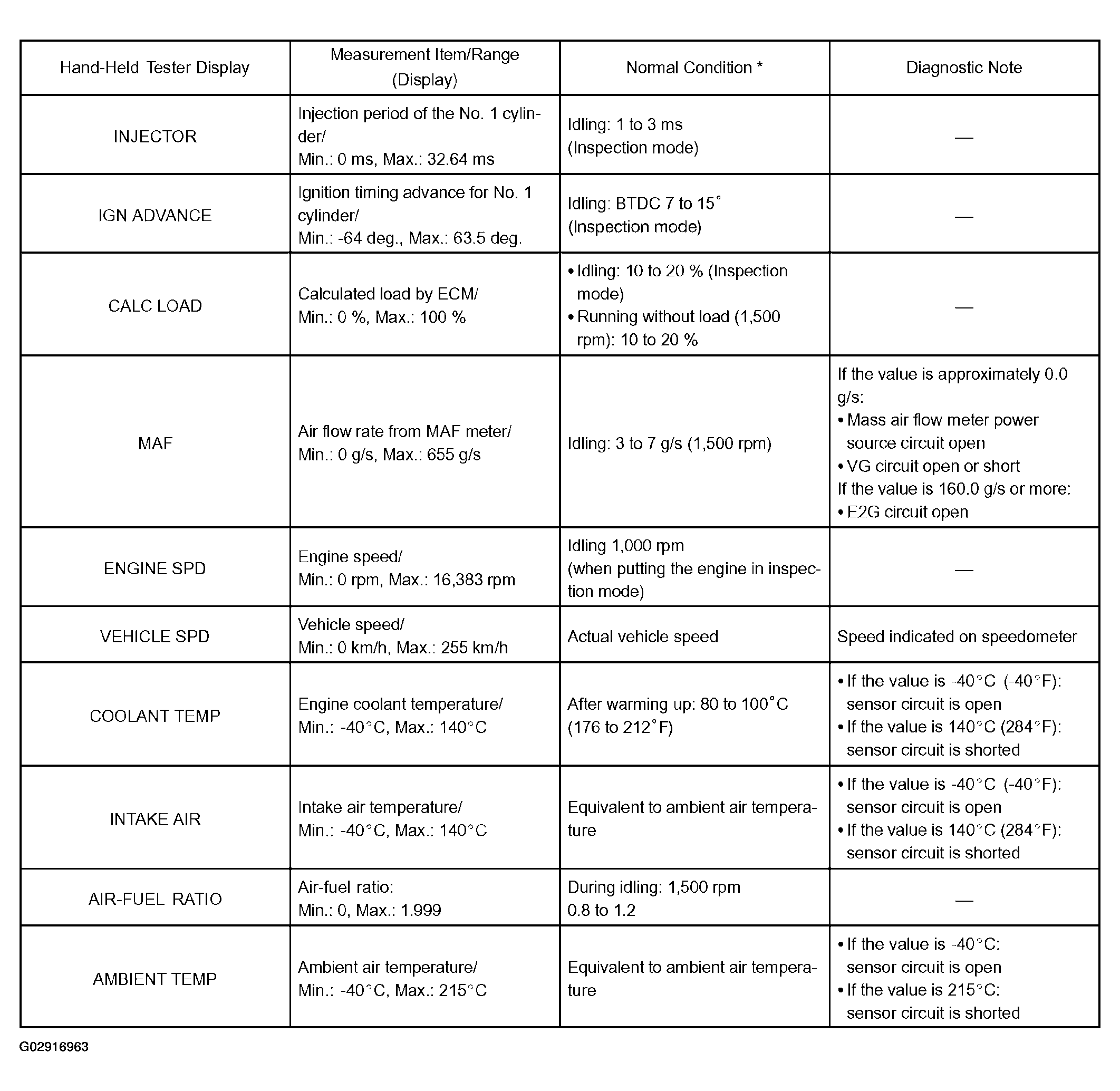

Fig 1: Hand Held Tester Display Data List Table (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

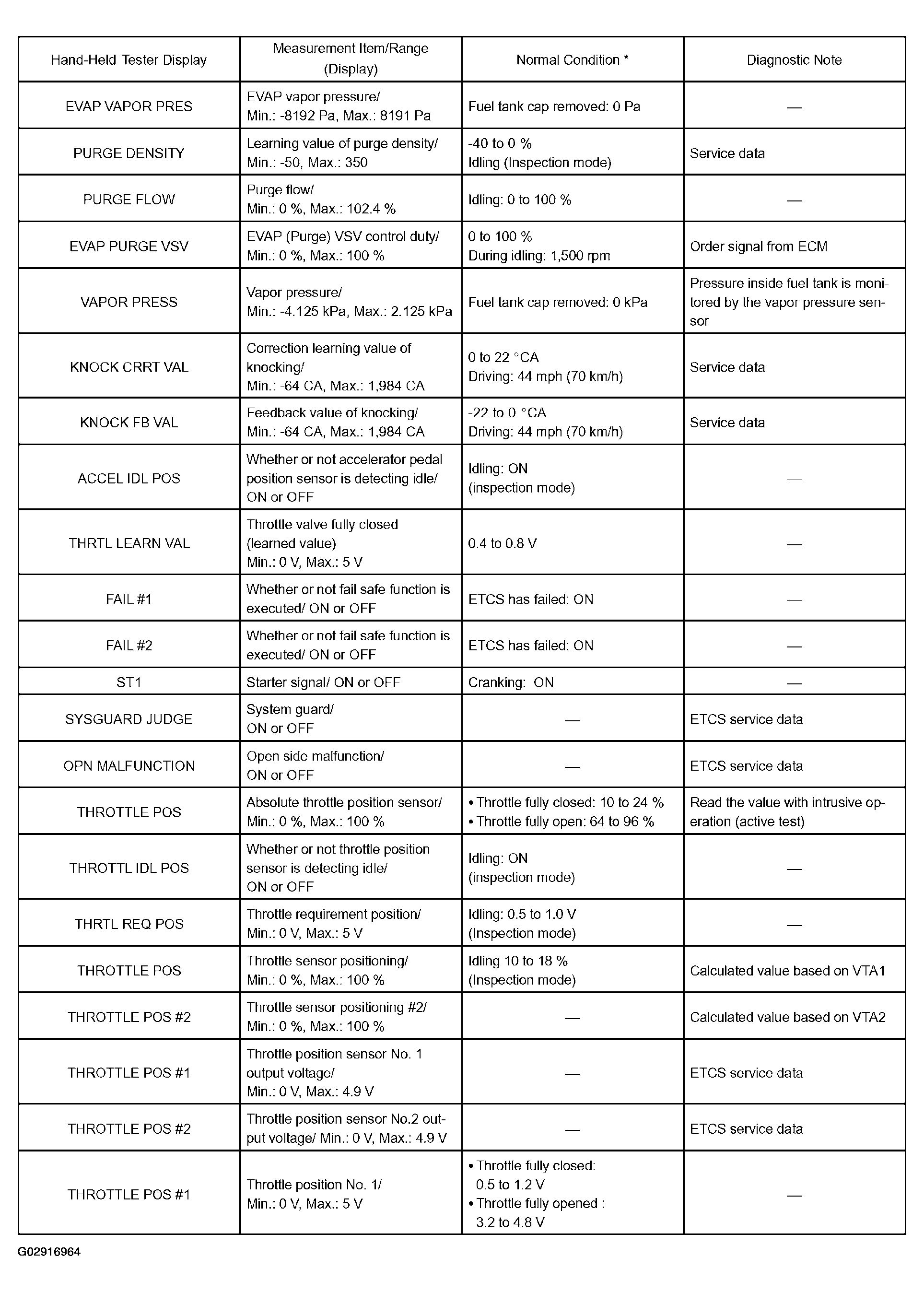

Fig 2: Hand Held Tester Display Data List Table (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

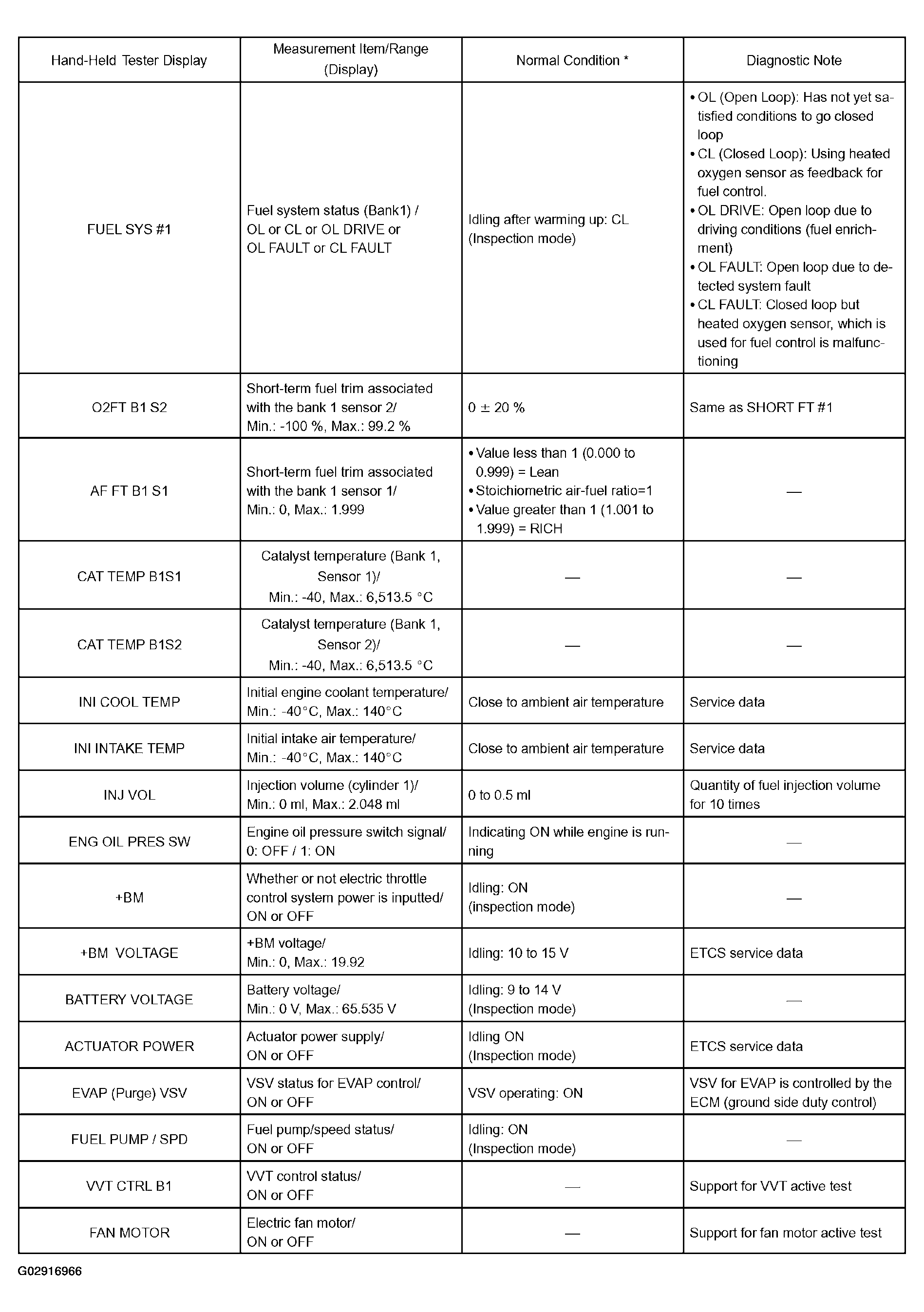

Fig 3: Hand Held Tester Display Data List Table (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

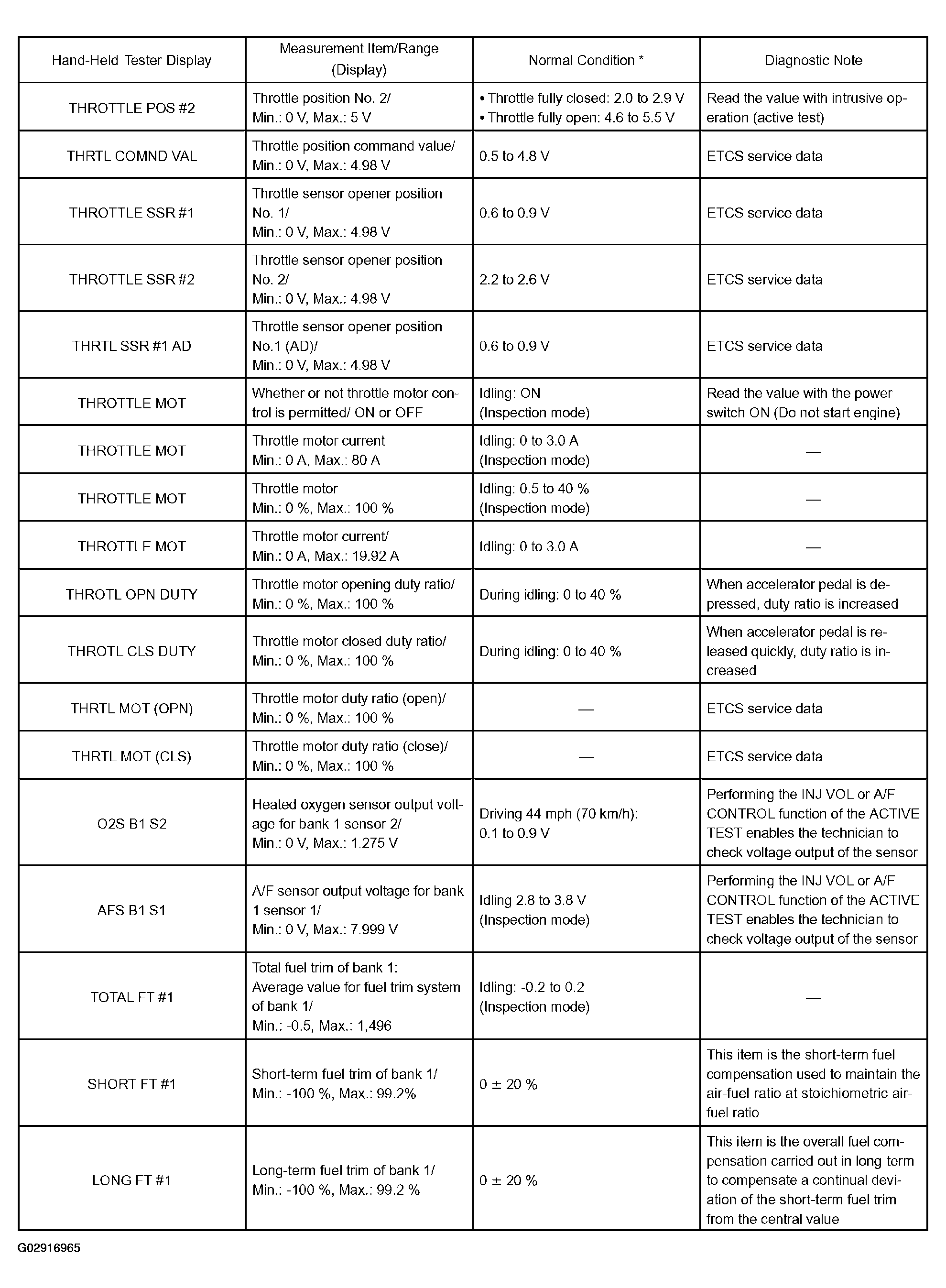

Fig 4: Hand Held Tester Display Data List Table (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

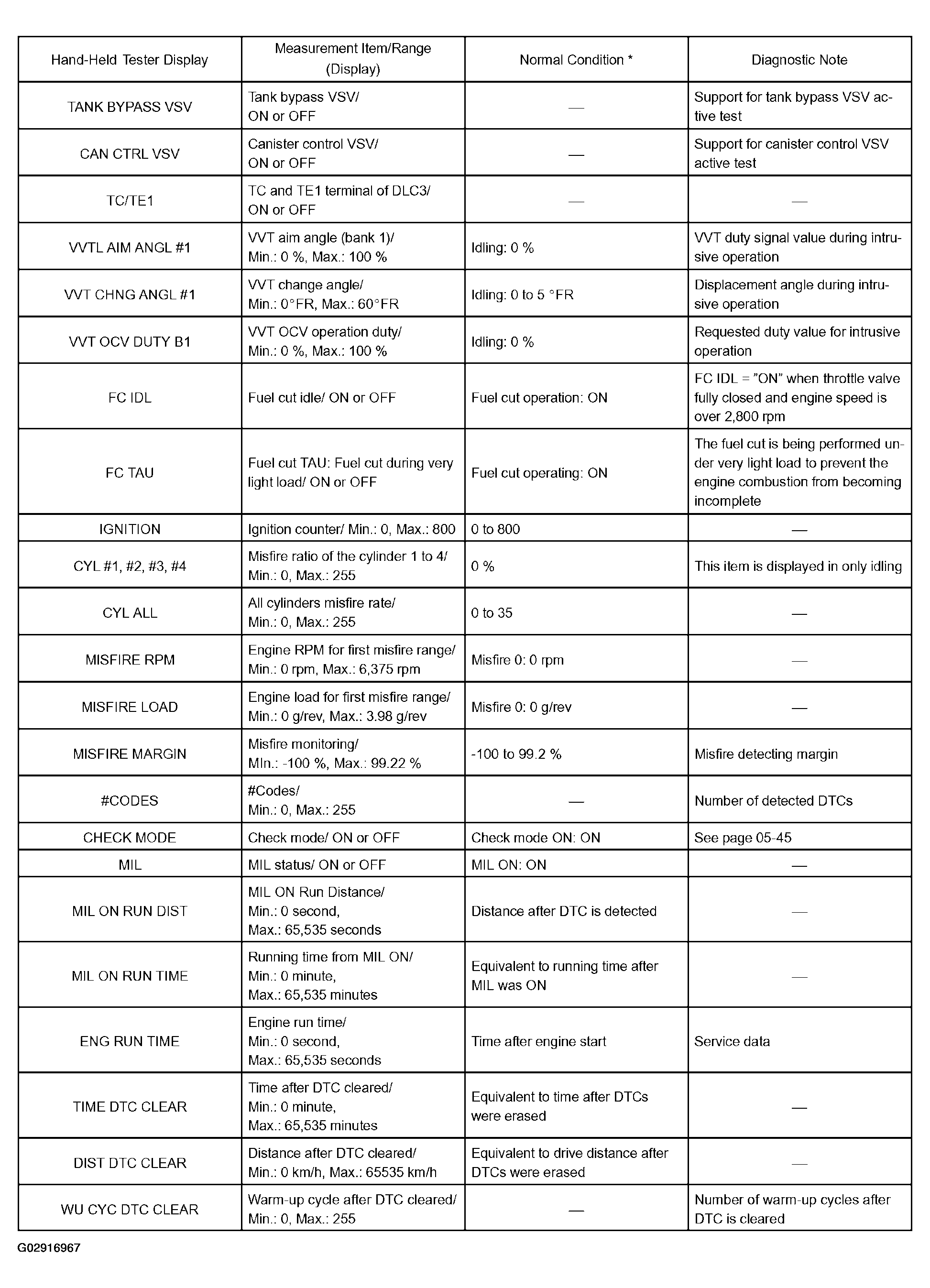

Fig 5: Hand Held Tester Display Data List Table (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

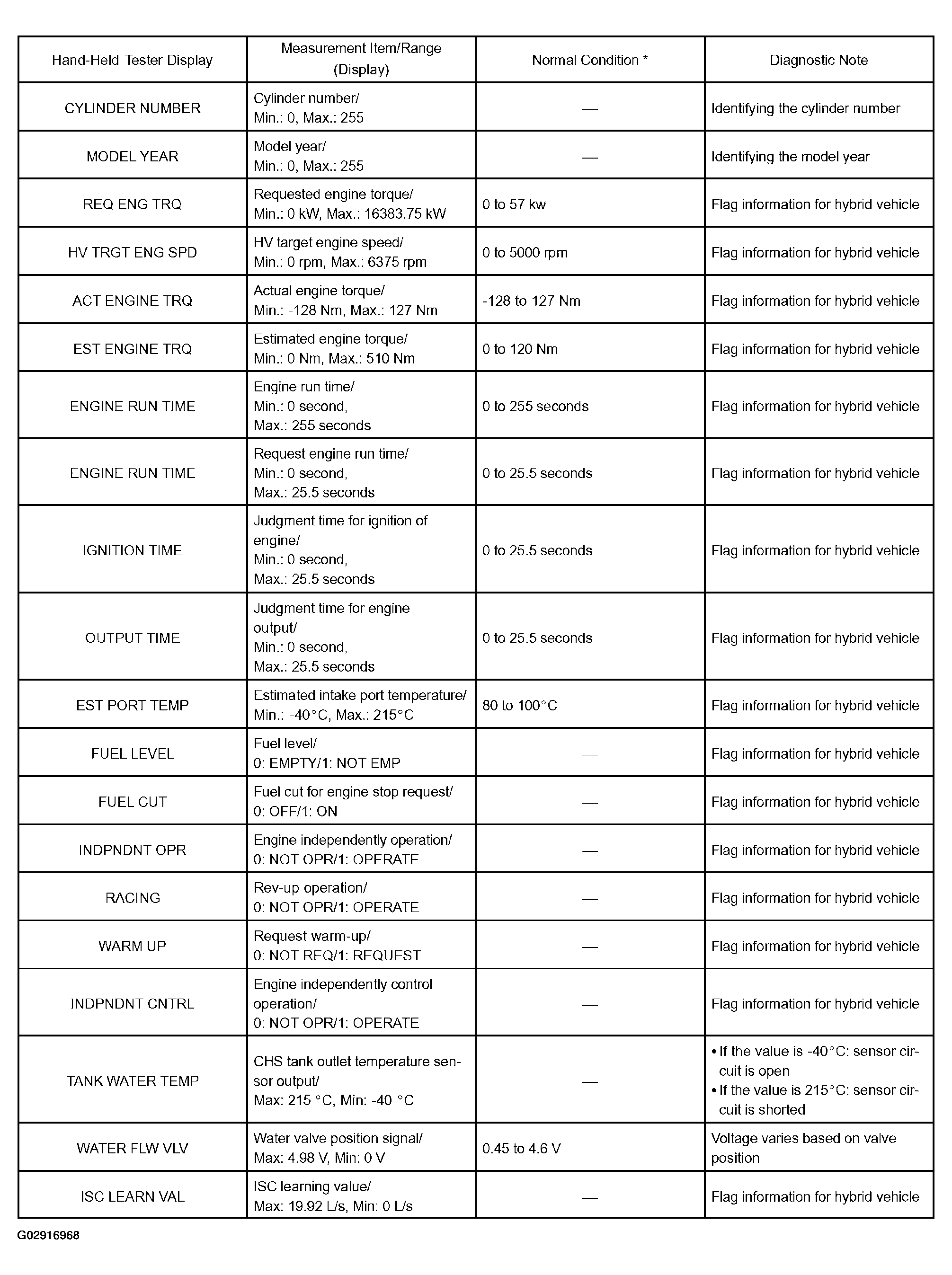

Fig 6: Hand Held Tester Display Data List Table (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*: If no condition is specifically stated for "Idling", it means the transaxle position is in the N or P, the A/C switch is OFF and all accessory switches are OFF.
ACTIVE TEST
HINT:

Performing ACTIVE TEST using the hand-held tester or the OBD II scan tool allows the relay, VSV, actuator and so on to operate without parts removal. Performing ACTIVE TEST as a first step of troubleshooting is one method to shorten diagnostic time.

It is possible to display DATA LIST during ACTIVE TEST.
1. Turn the power switch ON (READY) and warm up the engine.
2. Turn the power switch OFF.
3. Connect the hand-held tester to the DLC3.
4. Turn the power switch ON (IG).
5. Turn the hand-held tester ON.
6. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST.
7. According to the display on the tester, perform items in ACTIVE TEST.

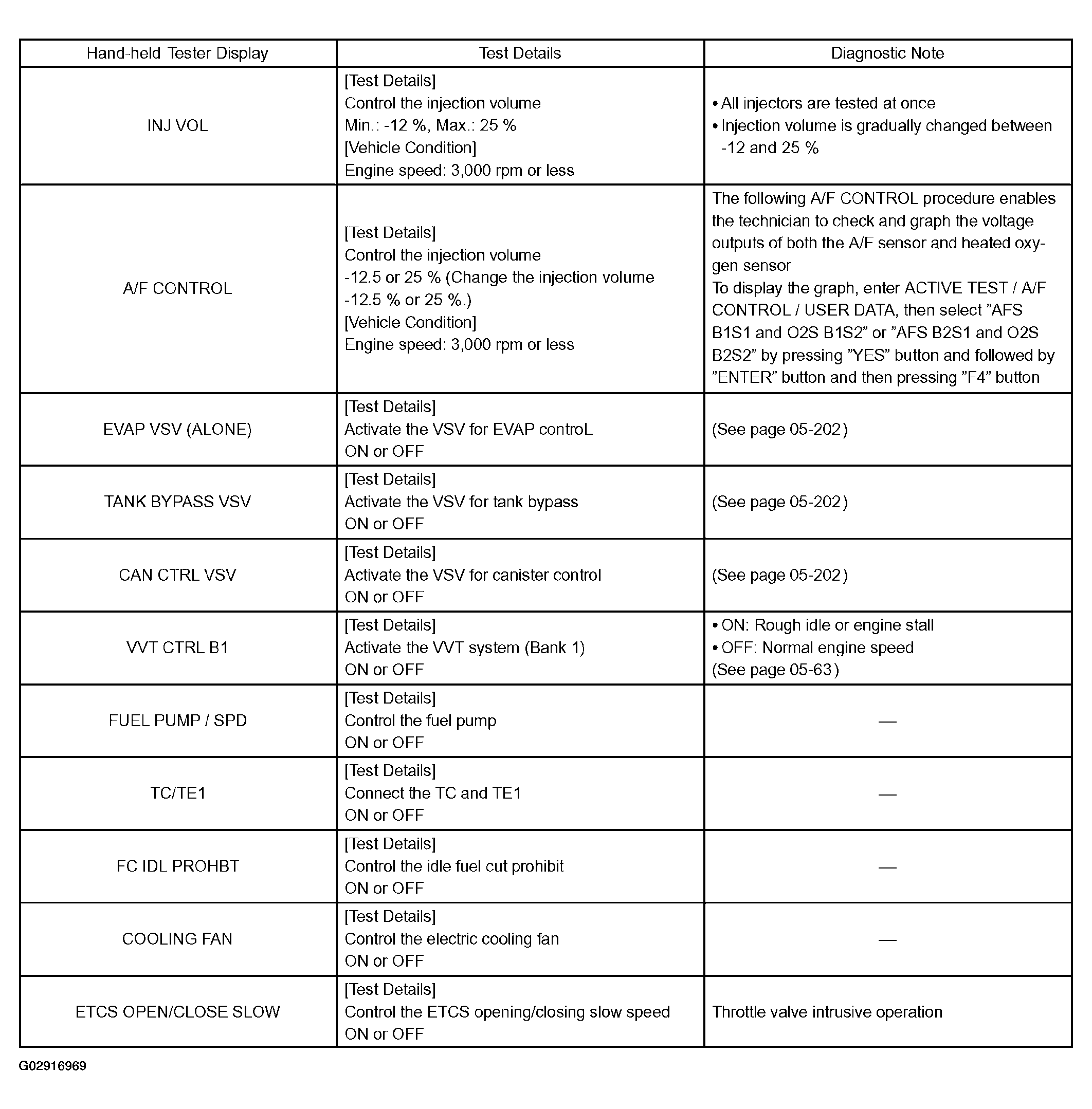

Fig 7: Hand-held Tester Display Active Test Table. (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

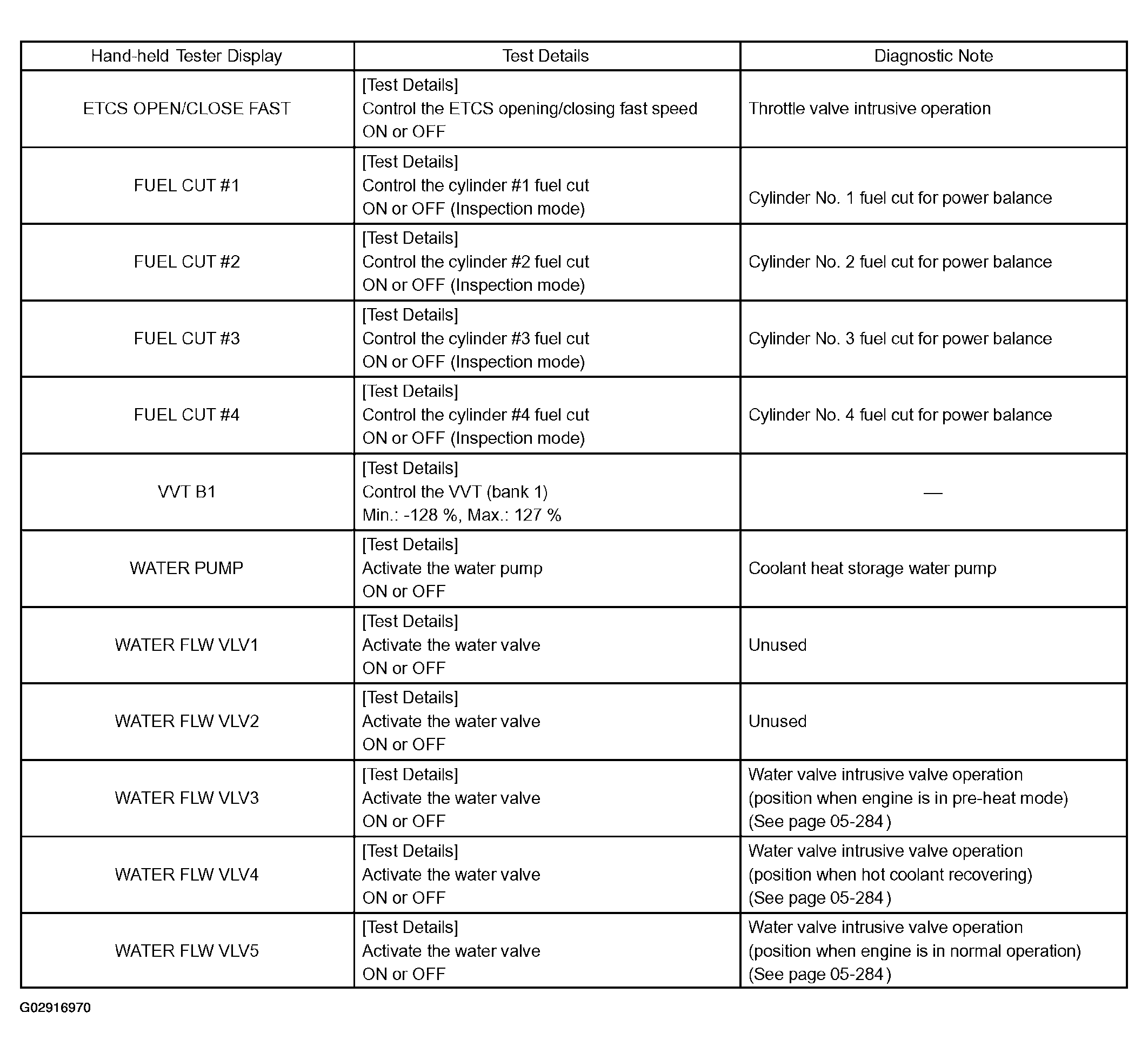

Fig 8: Hand Held Tester Display Active Test Table. (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
