Fail-Safe Chart

If any of the following codes are recorded, the ECM enters fail-safe mode.

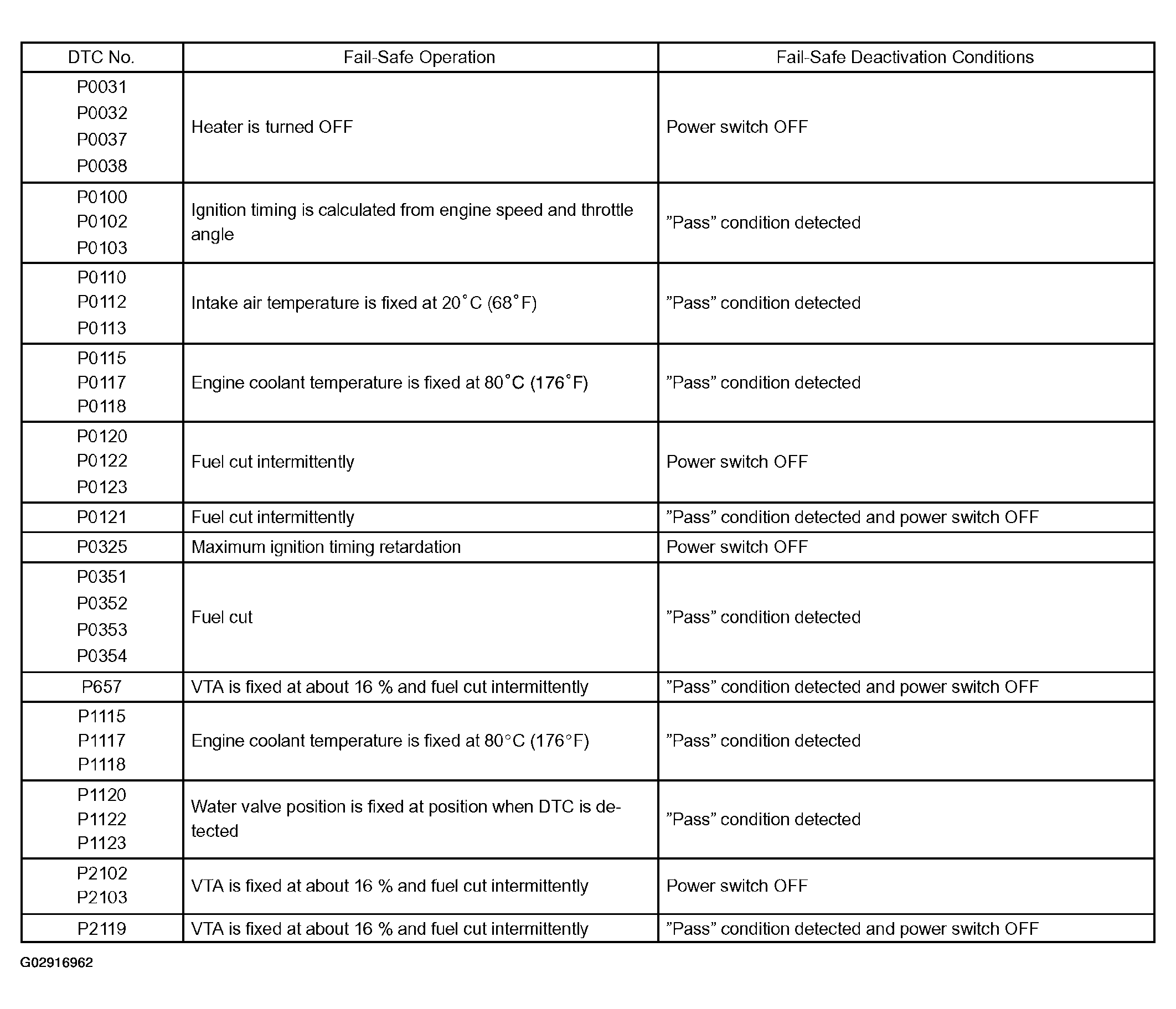

Fig 1: SFI System Fail Safe Chart
G02916962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
