System Diagram: Notes

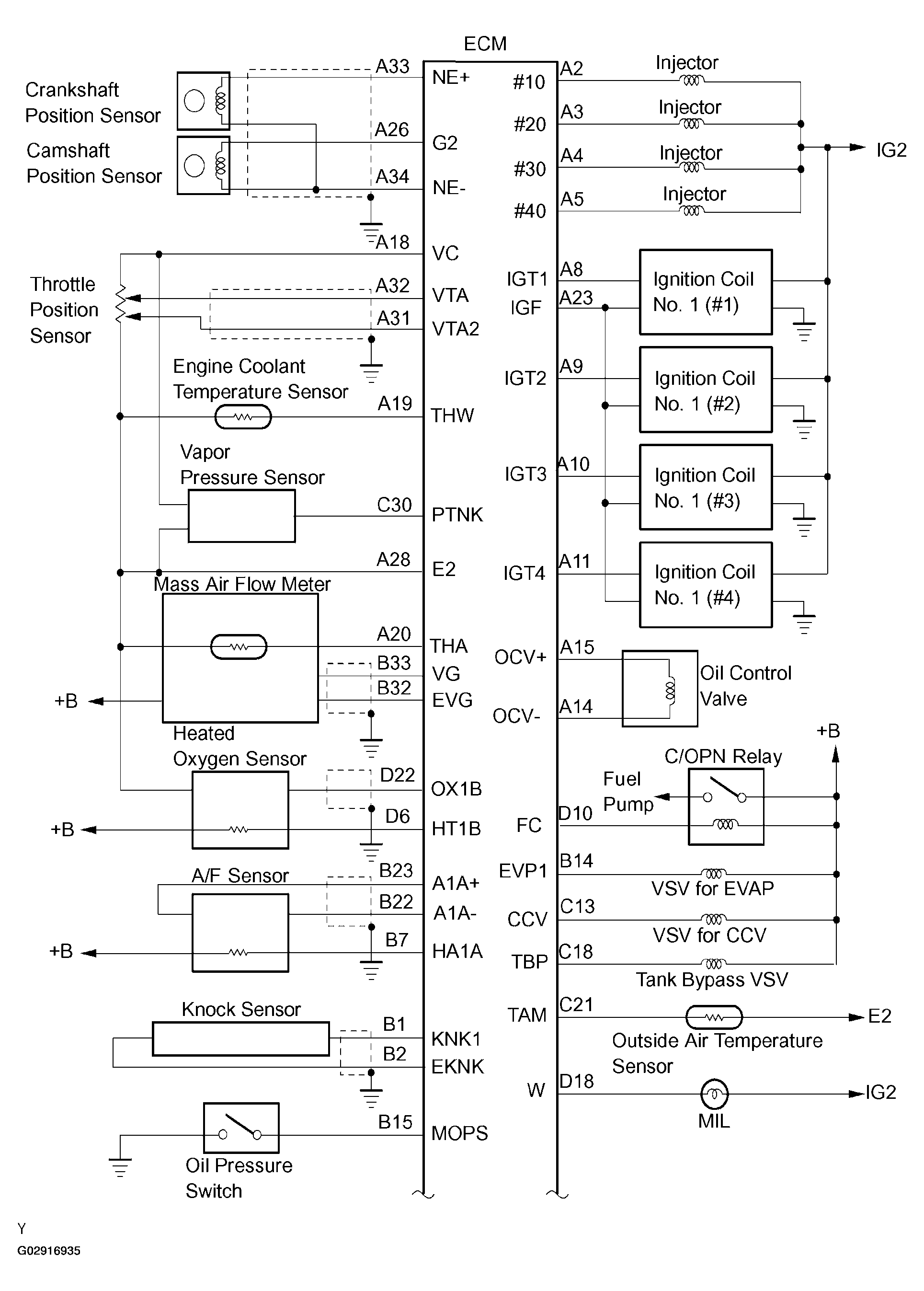

Fig 1: SFI System Wiring Diagram (1 Of 2)
G02916935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

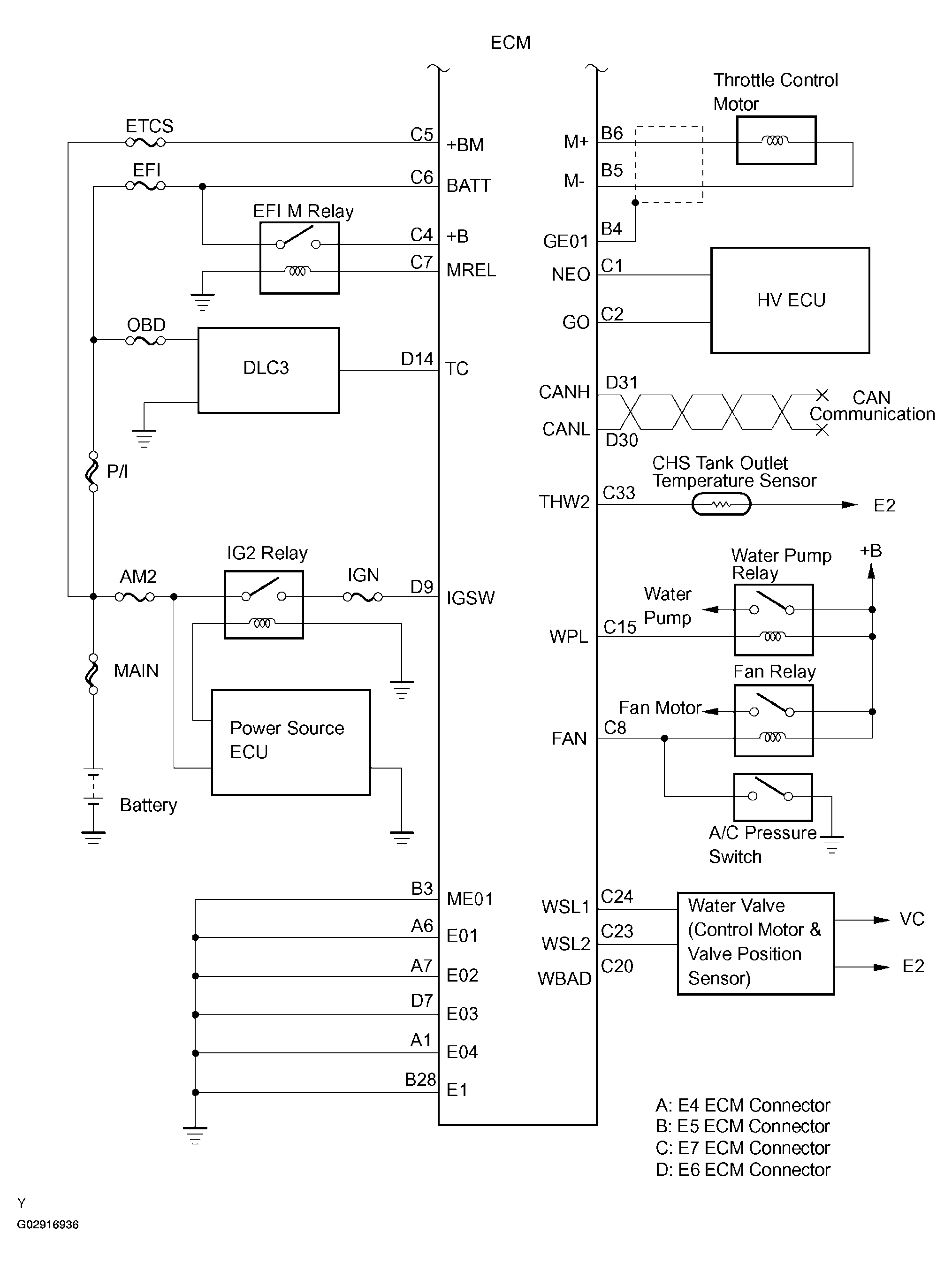

Fig 2: SFI System Wiring Diagram (2 Of 2)
G02916936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
