Differential Drive Pinion: Overhaul

1. Uncalk the nut.

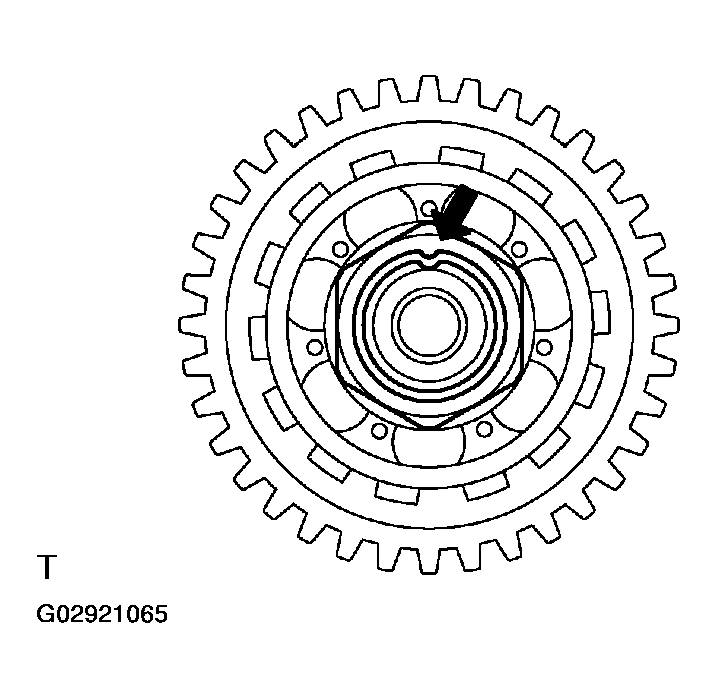

   Fig 1: Uncalking Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Set the differential drive pinion in a vise and remove the nut using a deep socket wrench.

   HINT:

   Set the vise as shown in the illustration.

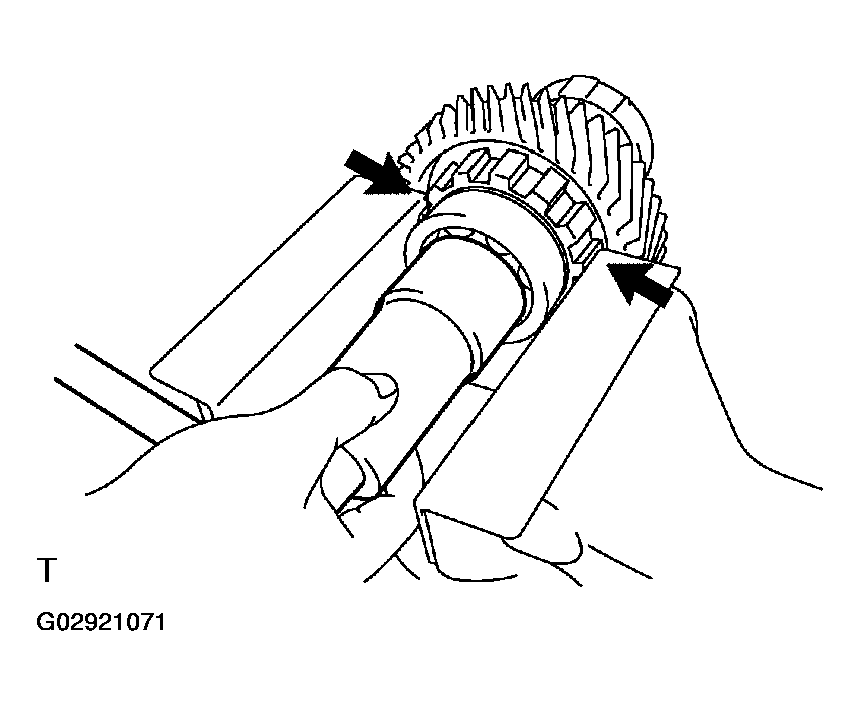

   Fig 2: Setting Vise For Differential Drive Pinion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, remove the bearing from the differential driver pinion.
   1. SST 09527-10011, 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)

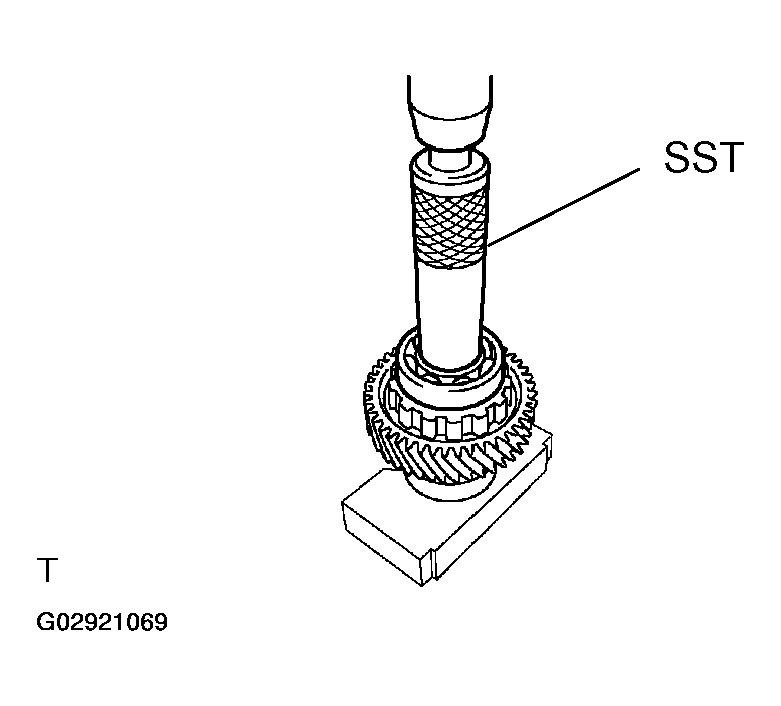

   Fig 3: Removing Bearing From Differential Driver Pinion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST and a press, remove the bearing from the differential drive pinion.
   1. SST 09527-10011, 09950-00020, 09950-60010 (09951-00360), 09950-70010 (09951-07100)

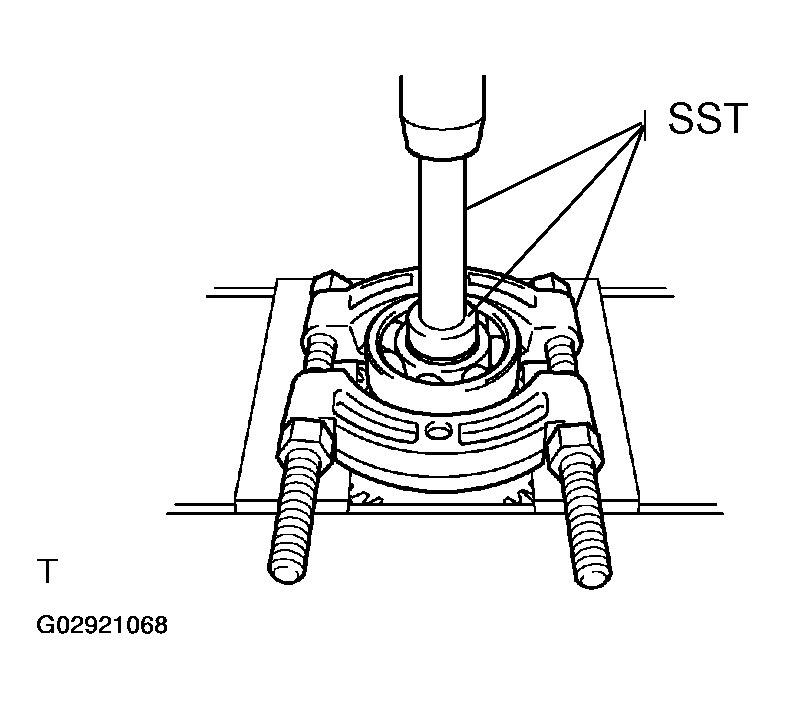

Fig 4: Removing Bearing From Differential Drive Pinion

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the bearing for abnormal wear or color change.

HINT:

Replace the bearing with a new one if abnormal wear or color change is observed.

1. Using SST and a press, install the bearing into the differential drive pinion.
   1. SST 09608-06041

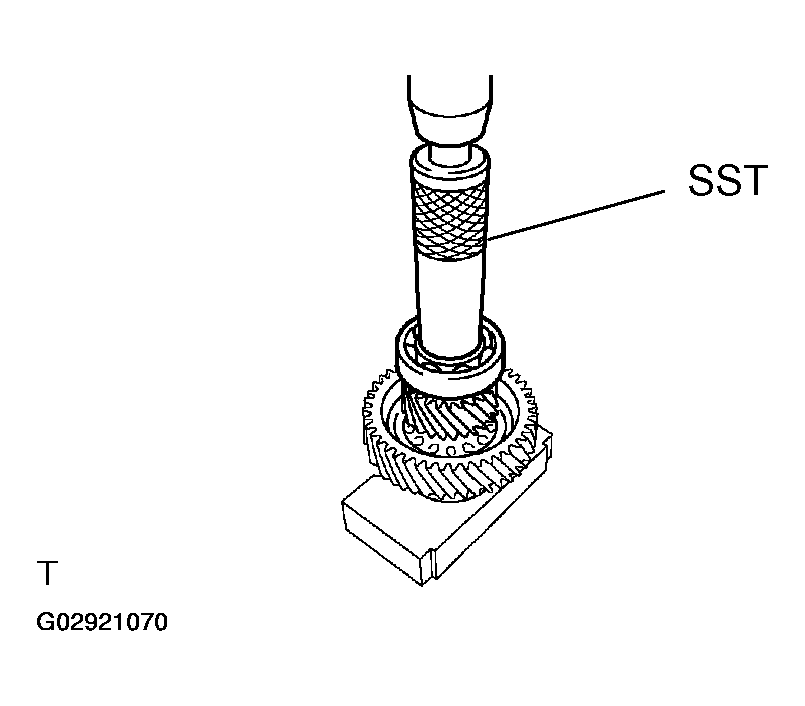

   Fig 5: Installing Bearing Into Differential Drive Pinion (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, install the bearing into the differential drive pinion.
   1. SST 09608-06041, 09950-60010 (09951-00370)

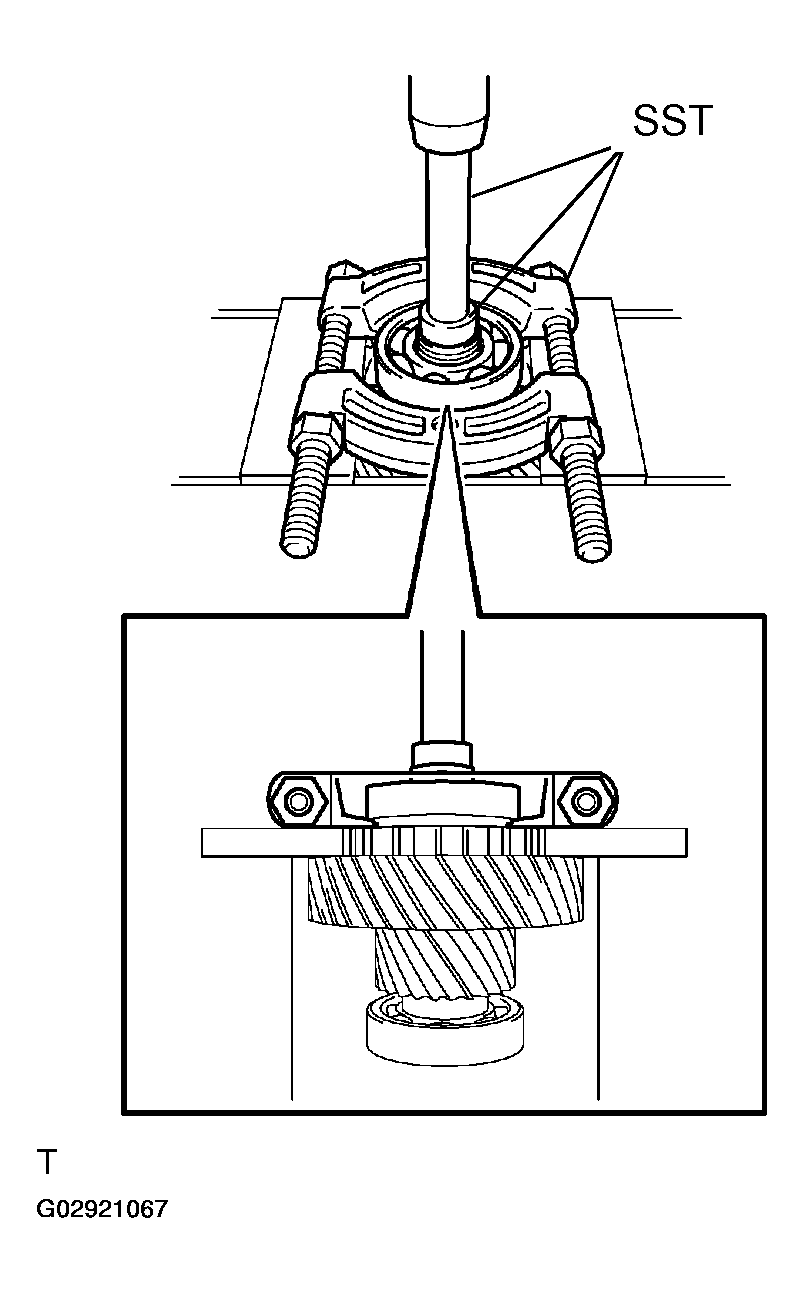

   Fig 6: Installing Bearing Into Differential Drive Pinion (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Set the differential drive pinion in a vise and tighten the nut using a deep socket wrench.
   1. Torque: 280 N.m (2,860 kgf.cm, 207 ft.lbf)

   HINT:

   Set the vise as shown in the illustration.

   Fig 7: Setting Vise For Differential Drive Pinion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Stake the nut.

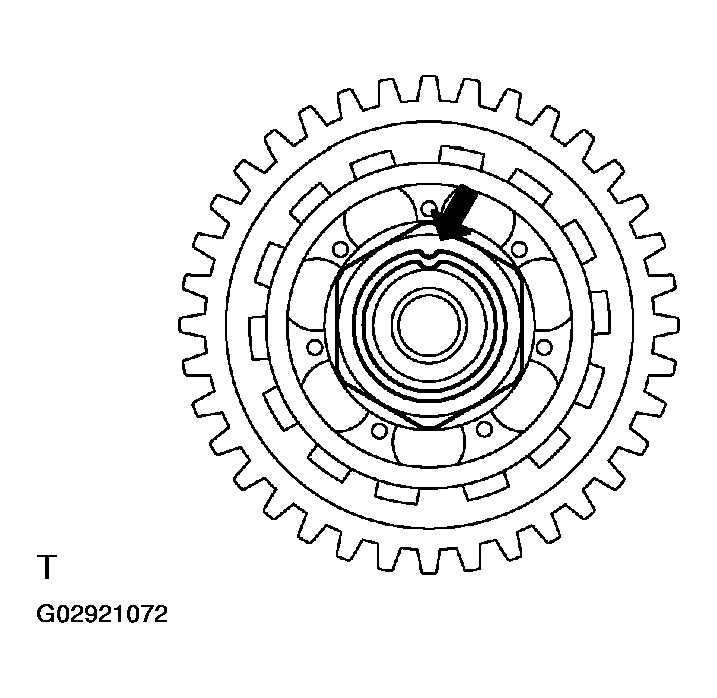

Fig 8: Staking The Nut

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
