Oil Pump Drive Shaft: Replacement

REMOVE FRONT WHEEL LH
REMOVE ENGINE UNDER COVER LH
DRAIN TRANSAXLE OIL (SEE ON-VEHICLE INSPECTION )

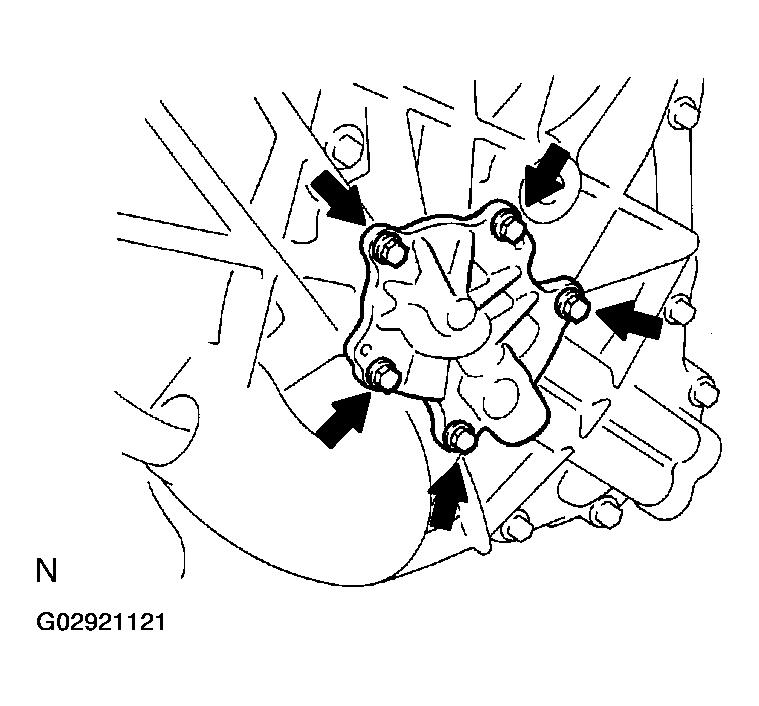

REMOVE TRANSMISSION OIL PUMP COVER SUB-ASSY
1. Remove the 5 bolts and oil pump cover.

  Fig 1: Locating Oil Pump Cover Bolts For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

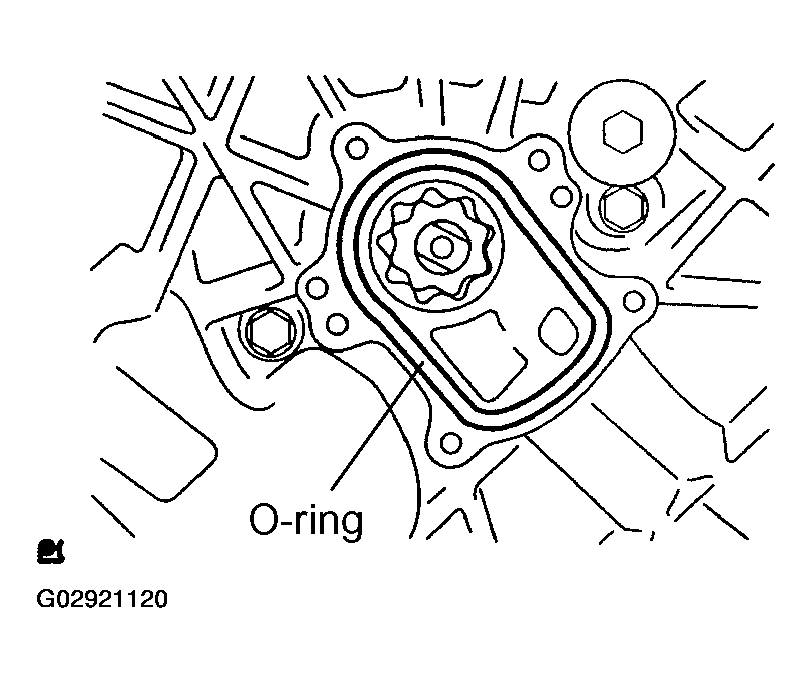

2. Remove the O-ring.
Fig 2: Locating O-Ring For Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

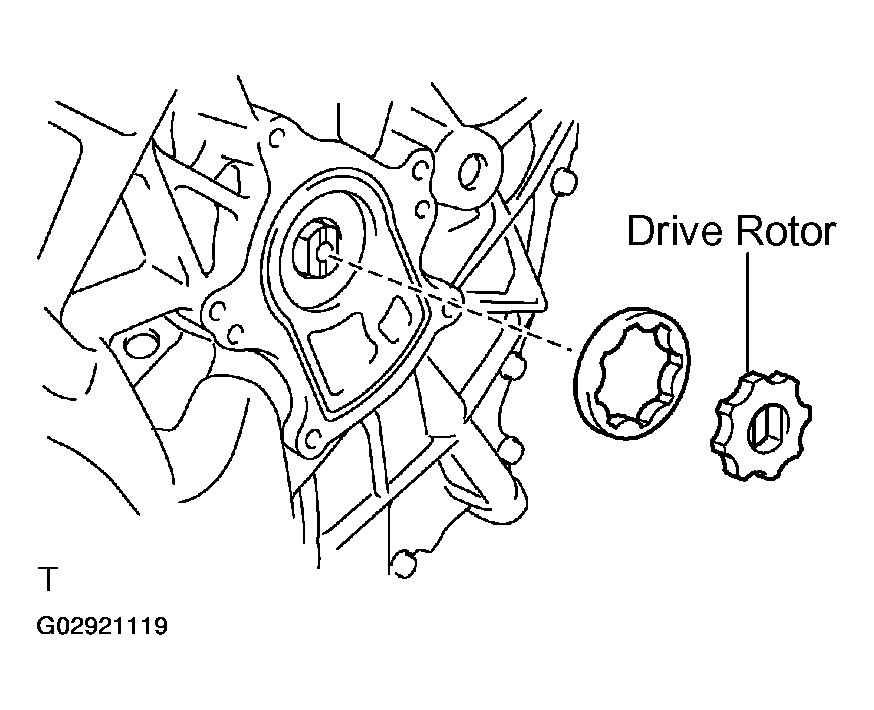

REMOVE TRANSAXLE OIL PUMP DRIVE ROTOR
1. Remove the transaxle oil pump driver rotor from the hybrid vehicle transaxle.
Fig 3: Removing Transaxle Oil Pump Driver Rotor From Hybrid Vehicle Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

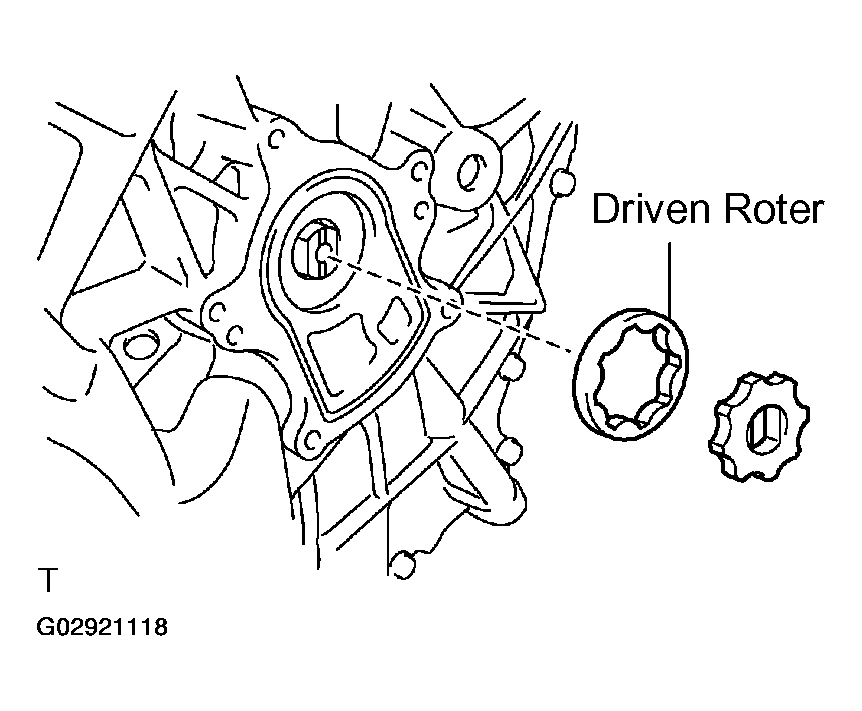

REMOVE OIL PUMP DRIVEN ROTOR
1. Remove the oil pump driven rotor from the hybrid vehicle transaxle.
Fig 4: Removing Oil Pump Driven Rotor From Hybrid Vehicle Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

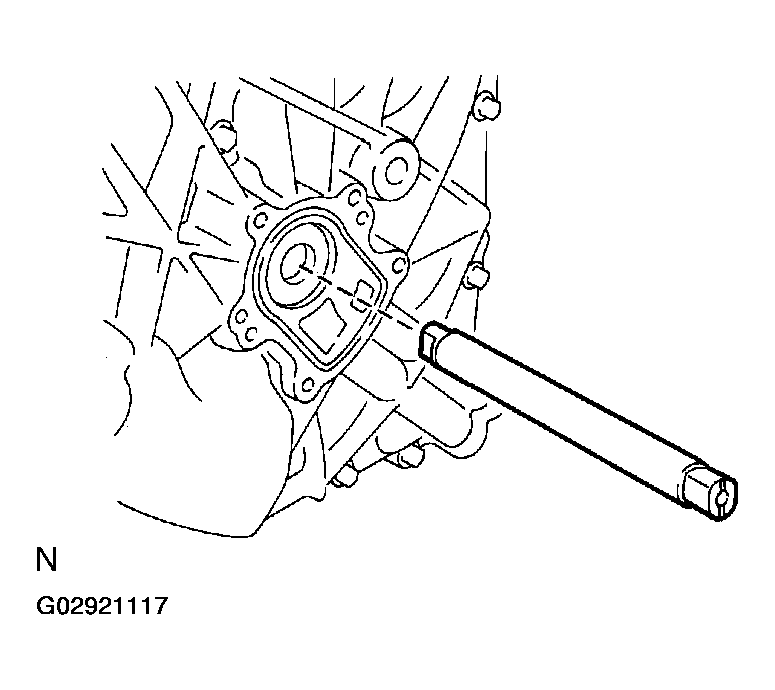

REMOVE OIL PUMP DRIVE SHAFT
1. Remove the oil pump drive shaft from the hybrid vehicle transaxle.
Fig 5: Removing Oil Pump Drive Shaft From Hybrid Vehicle Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

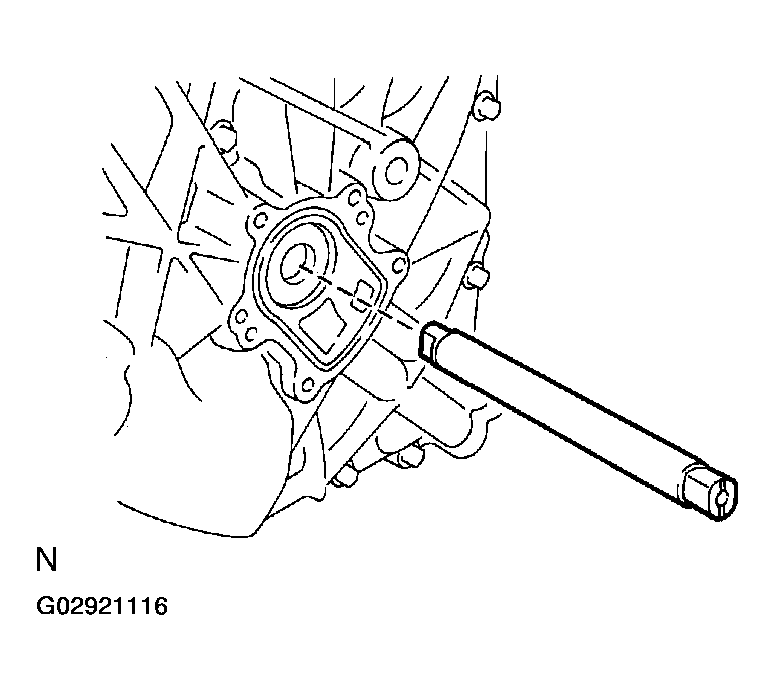

INSTALL OIL PUMP DRIVE SHAFT
1. Apply ATF WS to the oil pump drive shaft and install to the hybrid vehicle transaxle.
HINT:

Use genuine ATF WS.

Fig 6: Installing Oil Pump Drive Shaft Into Hybrid Vehicle Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP DRIVEN ROTOR
1. Apply ATF WS to the oil pump driven rotor and install to the hybrid vehicle transaxle.
HINT:

Use genuine ATF WS.

Fig 7: Installing Oil Pump Driven Rotor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSAXLE OIL PUMP DRIVE ROTOR
1. Apply ATF WS to the oil pump drive rotor and install to the hybrid vehicle transaxle.
HINT:

Use genuine ATF WS.

Fig 8: Installing Transaxle Oil Pump Drive Rotor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION OIL PUMP COVER SUB-ASSY
1. Install a new O-ring to the hybrid transaxle.
  NOTE: Do not twist the O-ring when installing it.

  Fig 9: Locating New O-Ring For Installation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply liquid sealant 1344 to the first 2 or 3 threads of the bolt end.
  NOTE: Clean and degrease the bolts and bolt holes.

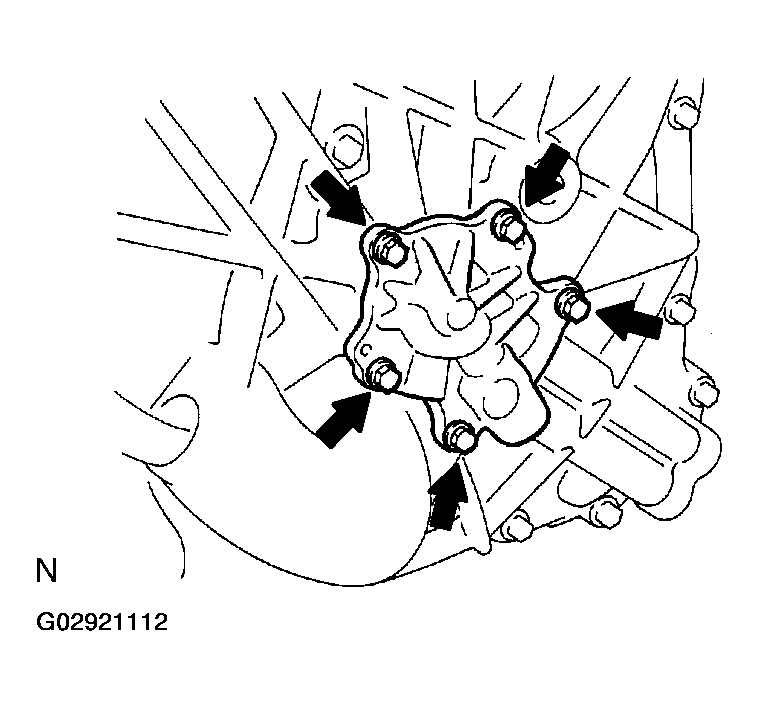

3. Install the oil pump cover with the 5 bolts.
  1. Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
Fig 10: Locating Oil Pump Cover Bolts For Installation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL LH
ADD TRANSAXLE OIL
Fluid type: AUTO FLUID WS

Capacity: 3.8 liters (4.0 US qts, 3.3 lmp. qts)
INSPECT TRANSAXLE OIL (SEE ON-VEHICLE INSPECTION )
INSTALL ENGINE UNDER COVER LH
