Data List

DATA LIST

HINT: Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without parts removal. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

a. Warm up the engine.
b. Turn the ignition switch OFF.
c. Connect the OBD II scan tool or hand-held tester to the DLC3.
d. Turn the ignition switch ON.
e. Turn ON the OBD II scan tool or the hand-held tester.
f. When using the hand-held tester:
Enter the following menus: "DIAGNOSIS/ENHANCED OBD II/DATA LIST".

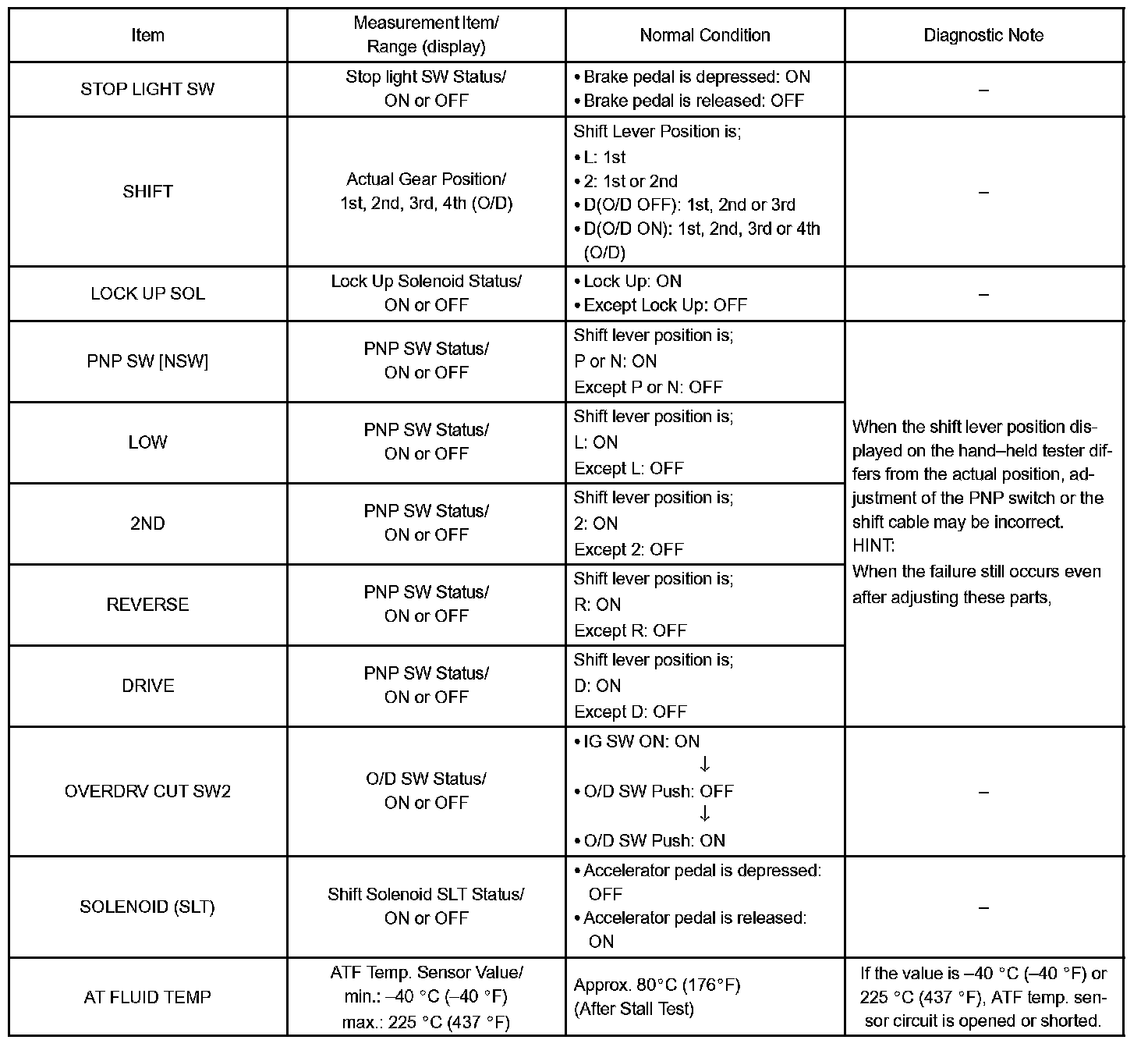

g. According to the display on tester, read the "DATA LIST".
