DTC P2118: Throttle Actuator Control Motor Current Range/Performance: Wiring Diagram

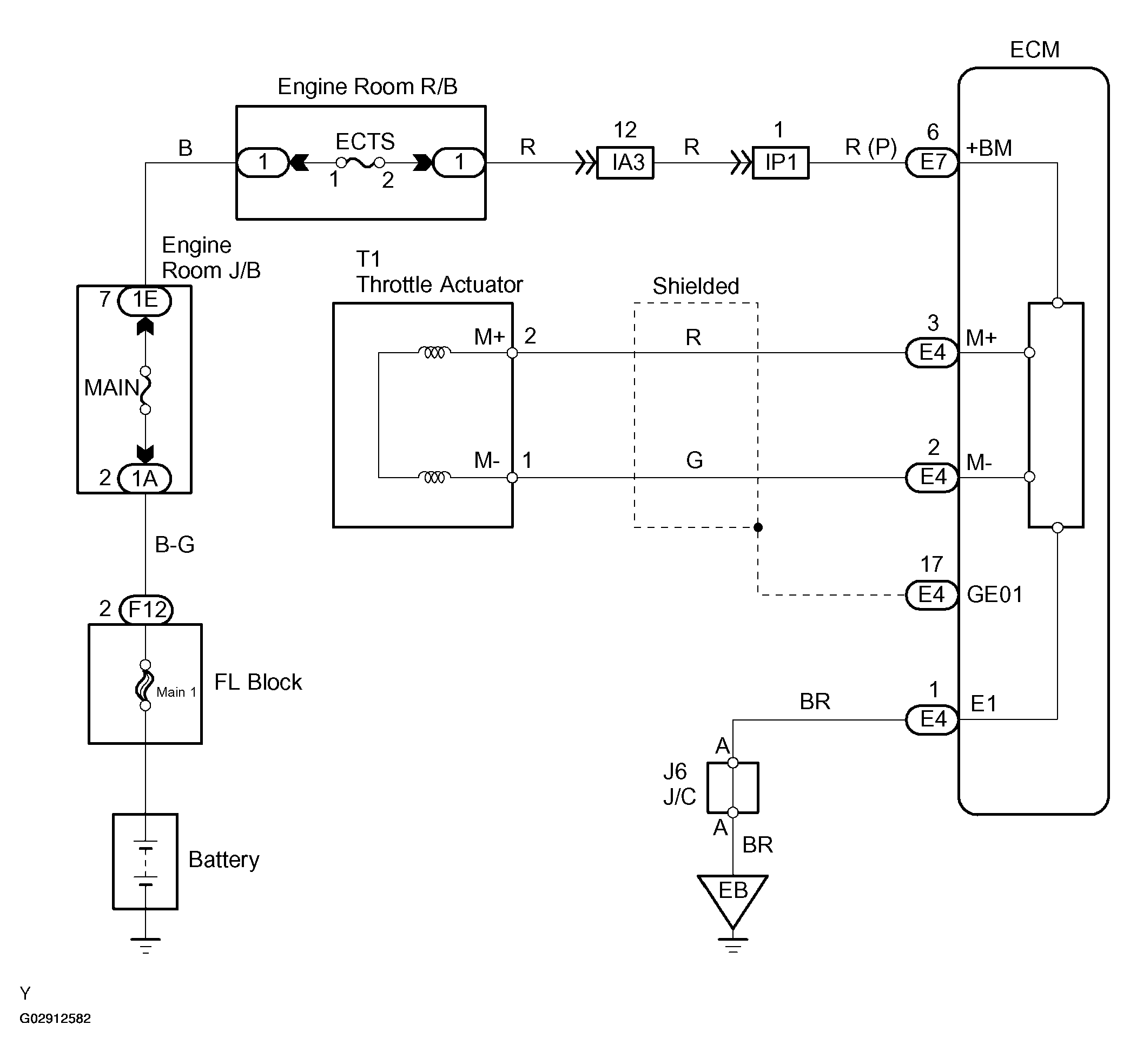

Fig 1: Throttle Actuator Wiring Diagram
G02912582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
