Circuit Description

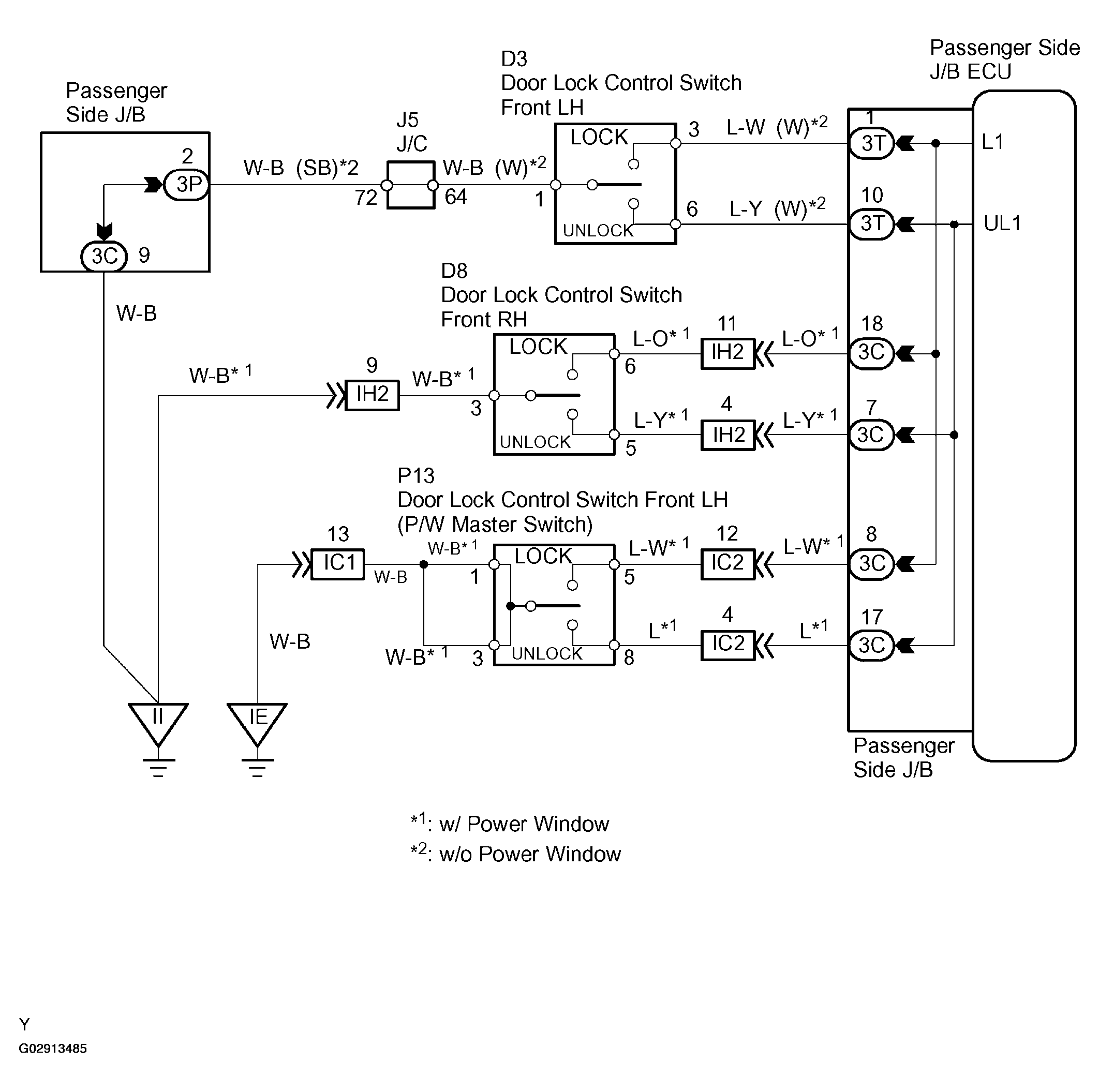

When the door lock control switch is turned to the lock position, terminal LOCK of the switch is grounded. When the switch is turned to the unlock position, terminal UNLOCK is grounded (see Figure).
When the door lock control switch is turned to the lock position, terminal LOCK of the switch is grounded. When the switch is turned to the unlock position, terminal UNLOCK is grounded (see Figure).
