Parts Layout And Schematic Drawing: Drawing

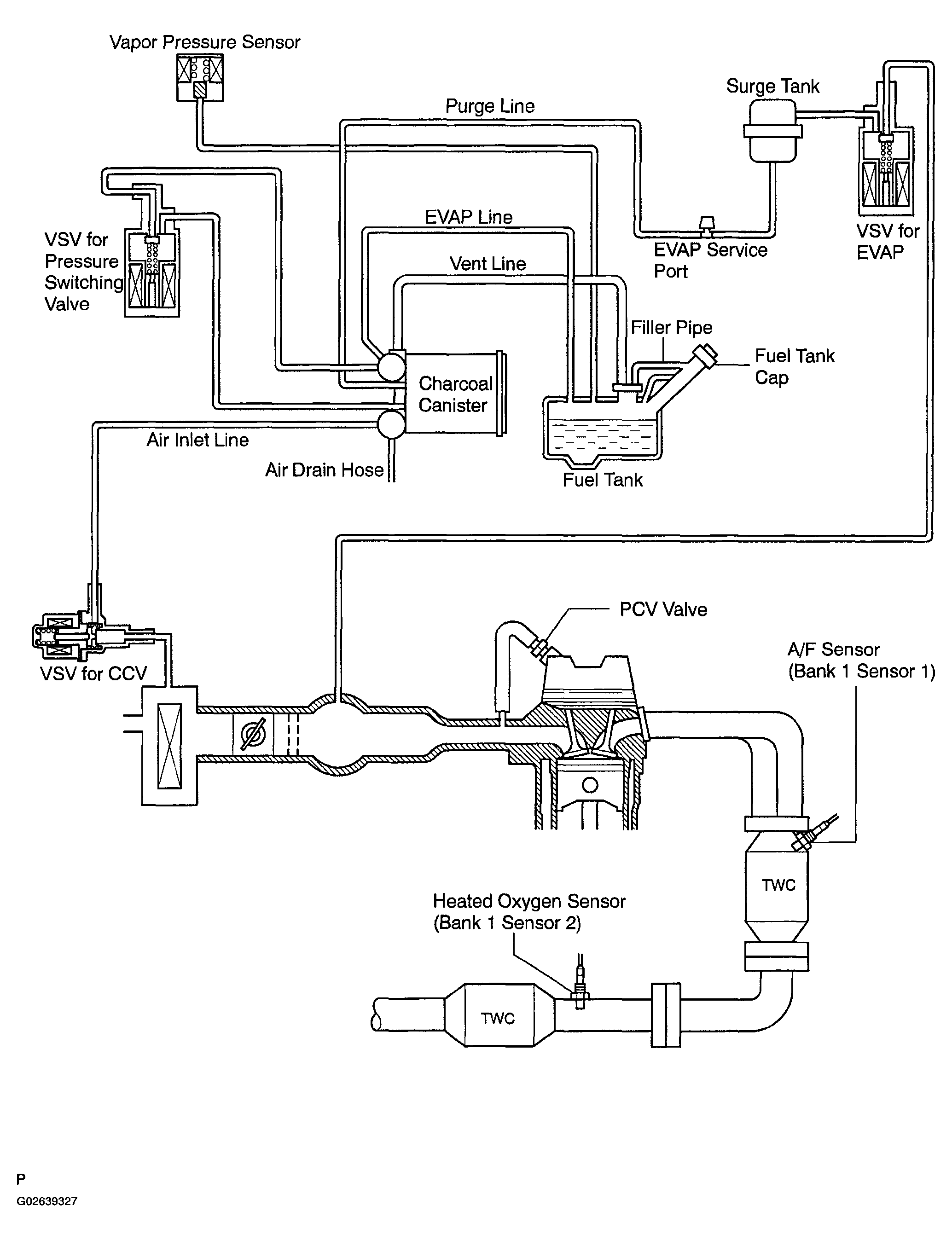

Fig 1: Emission Control System Drawing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
