Circuit Description

Refer to CIRCUIT DESCRIPTION  under DTC P0115: ENGINE COOLANT TEMPERATURE CIRCUIT, DTC P0117: ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT, DTC P0118: ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT.

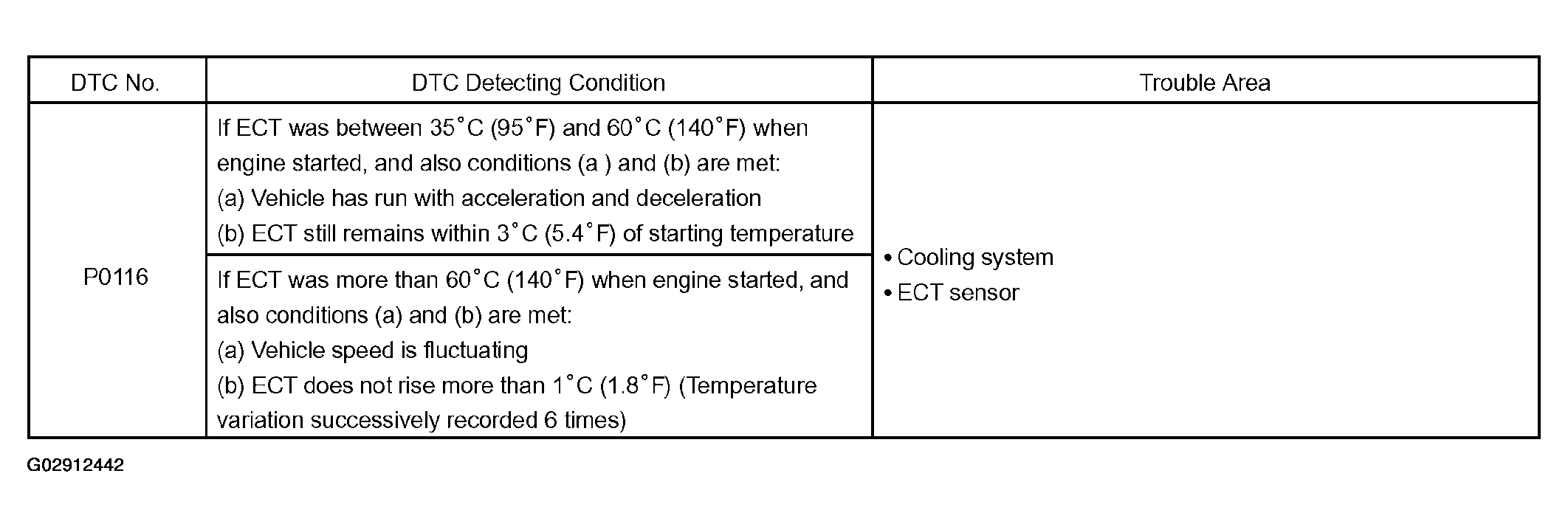

Fig 1: DTC (P0116) Diagnosis Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
