Circuit Description
The P/T squib (RH) circuit consists of the airbag sensor assembly and the front seat outer belt assembly RH (seat belt pretensioner RH).
The circuit instructs the SRS to deploy when deployment conditions are met.

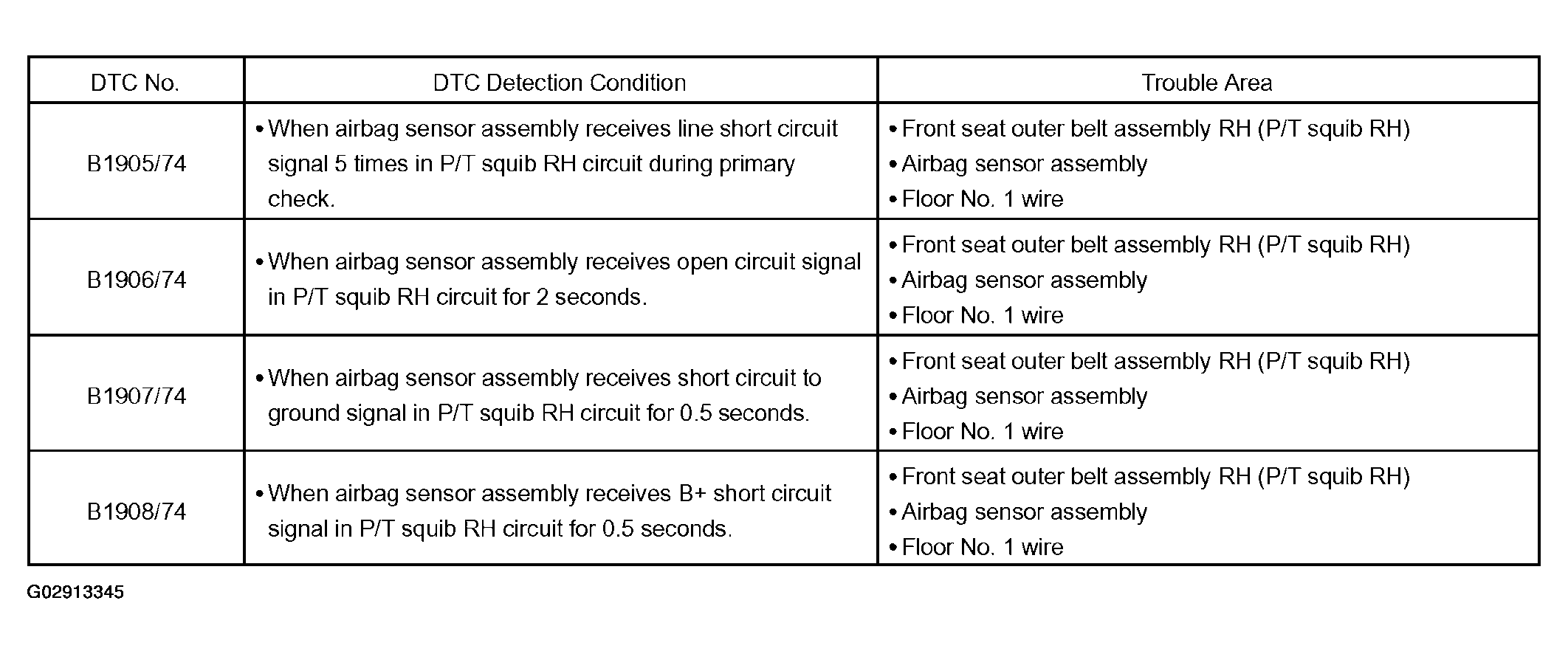

These DTCs are recorded when a malfunction is detected in the P/T squib RH circuit.
