DTC B1905/74: Short in P/T Squib (RH) Circuit, DTC B1906/74 Open in P/T Squib (RH) Circuit, DTC B1907/74 Short in P/T Squib (RH) Circuit (to Ground), DTC B1908/74 Short in P/T Squib (RH) Circuit (to B+): Wiring Diagram

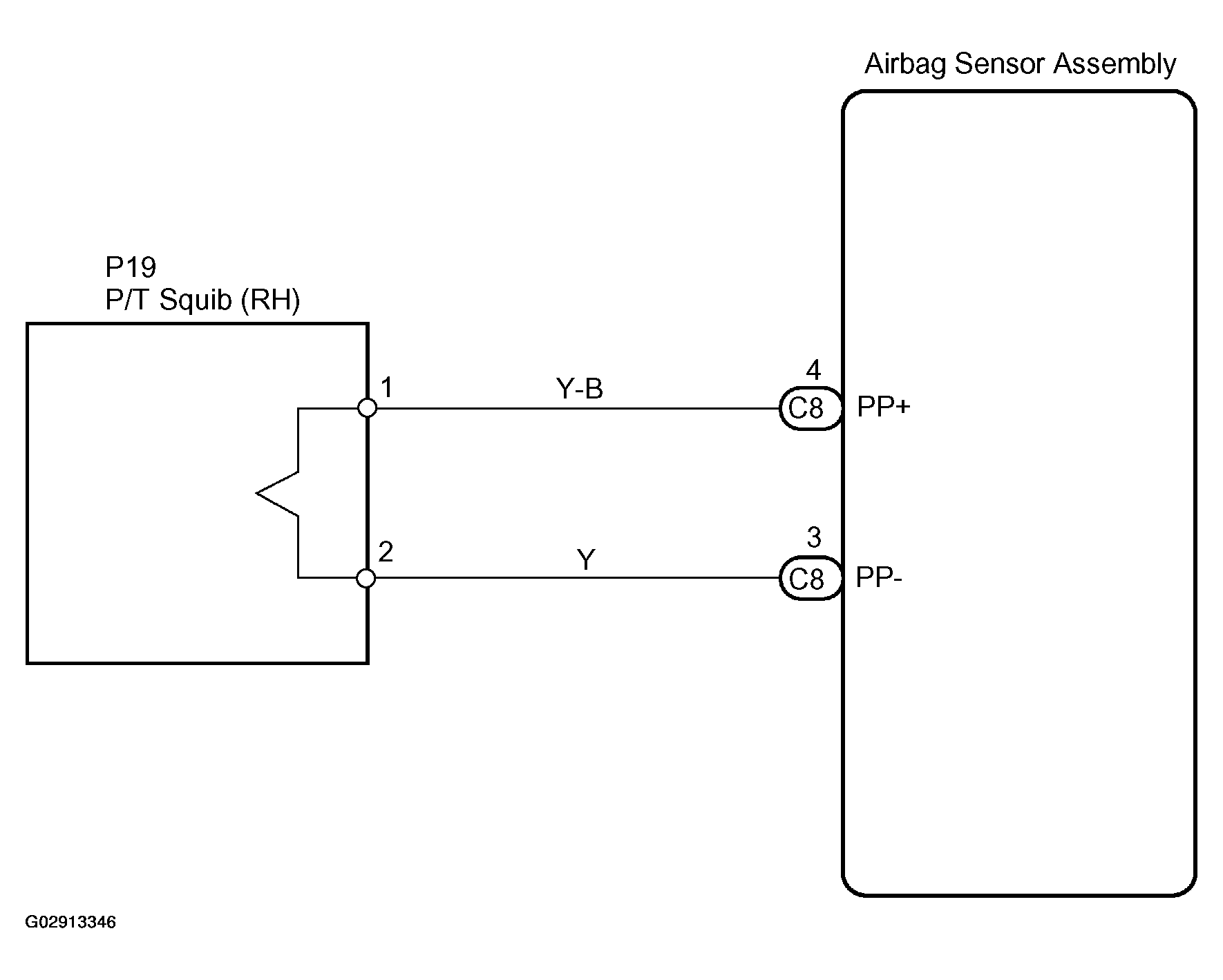

Fig 1: Wiring Diagram - P/T Squib (RH) Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
