COMBINATION METER (Warning Lights):

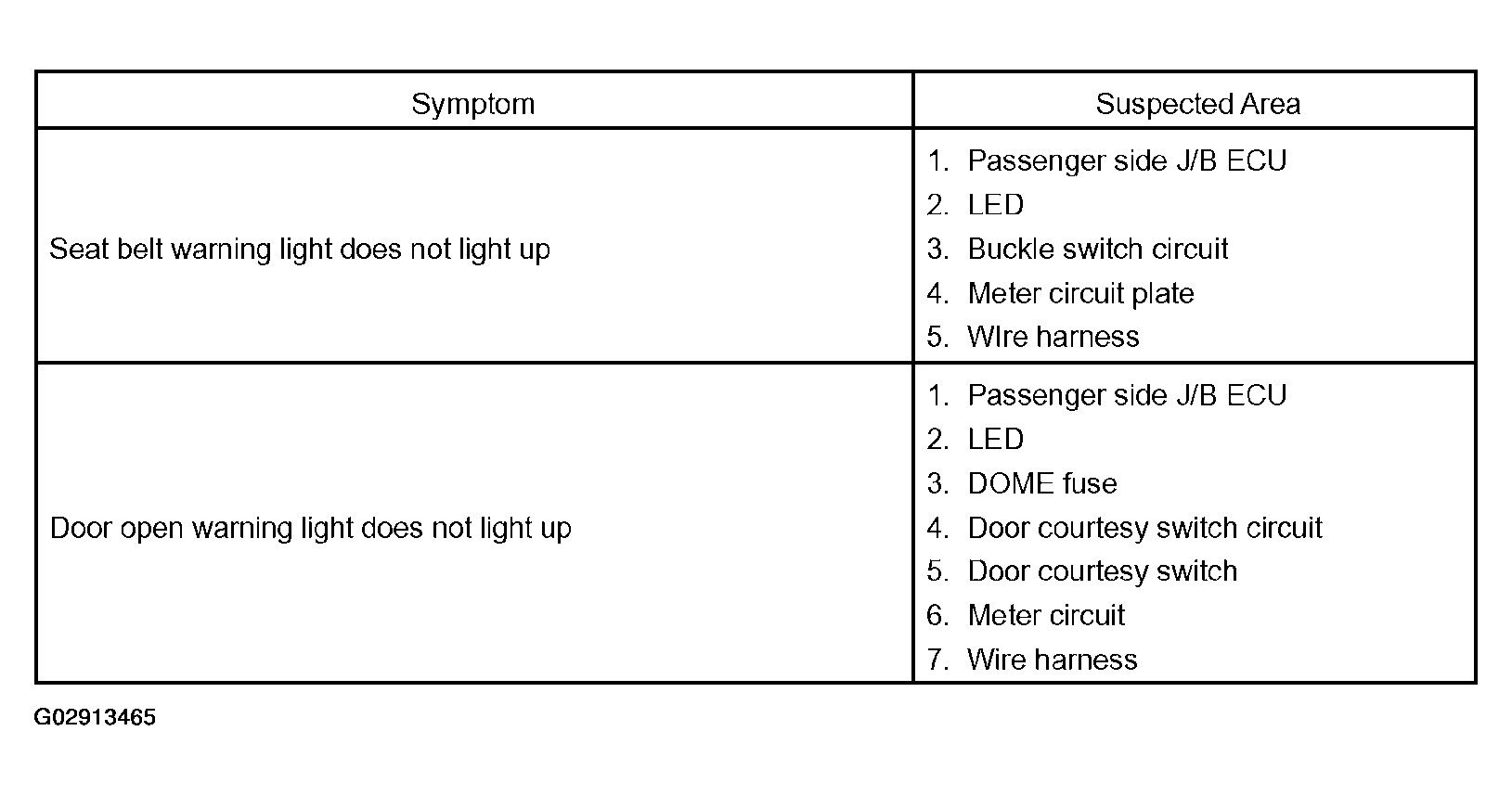

Fig 1: Problem Symptom Table - Combination Meter (Warning Lights)
G02913465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
