Front Door: Components

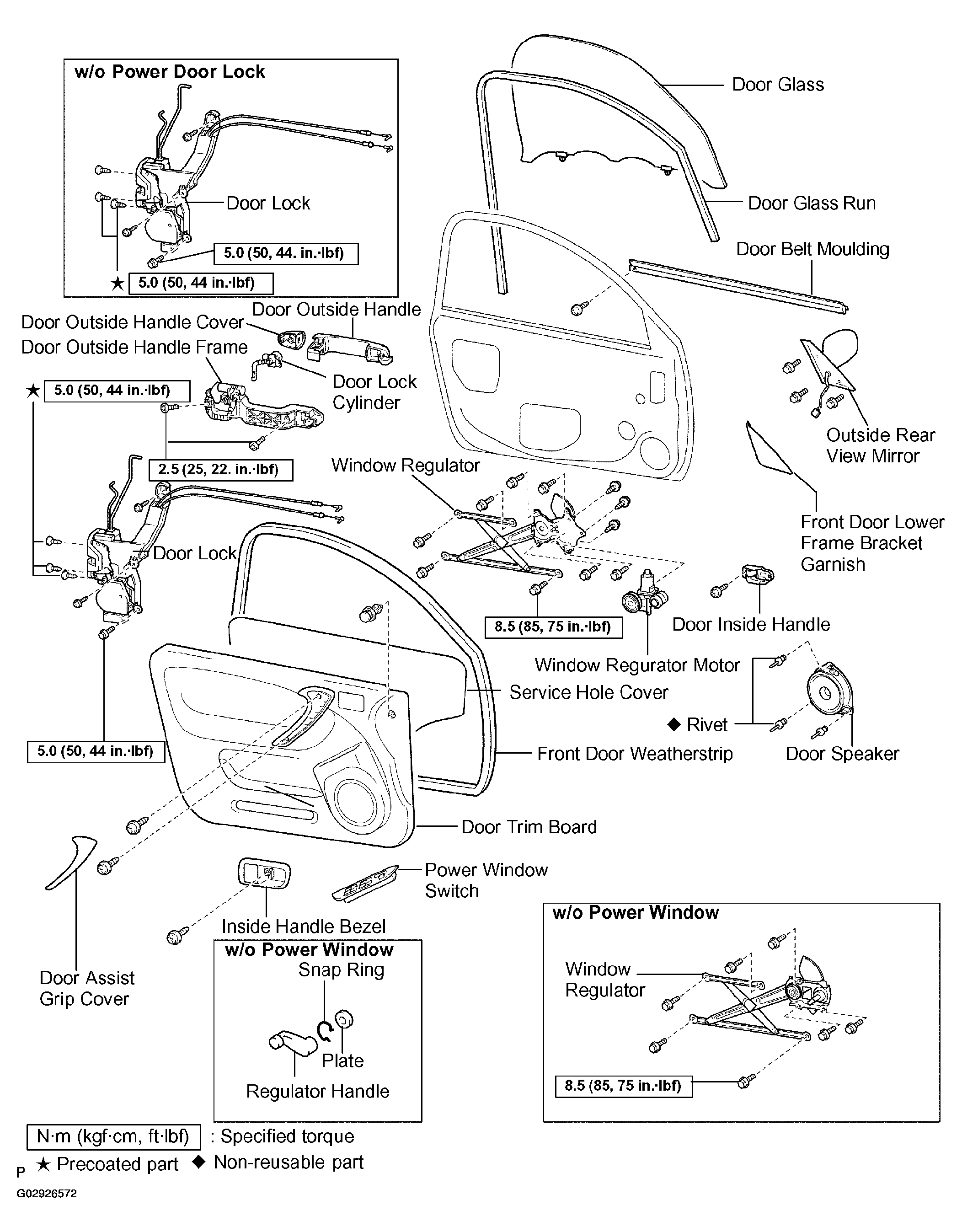

Fig 1: Exploded View Of Front Door
G02926572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
