Rear Door: Adjustment

ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
Adjust the door by loosening the body side hinge bolts.

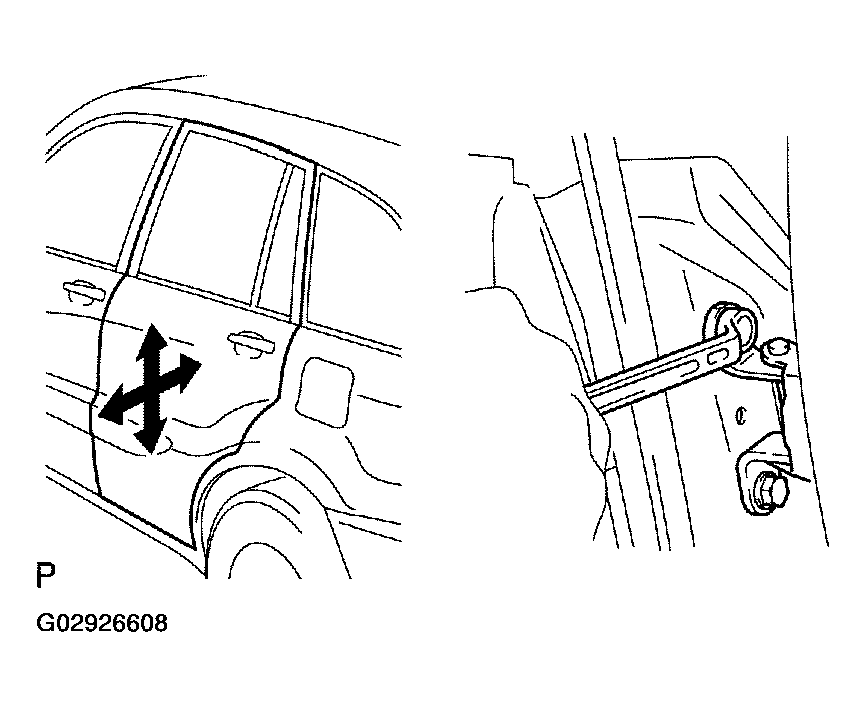

Fig 1: Adjusting Door Forward/Rearward & Vertically By Loosening Body Side Hinge Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)
ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Loosen the door side hinge bolts to adjust.

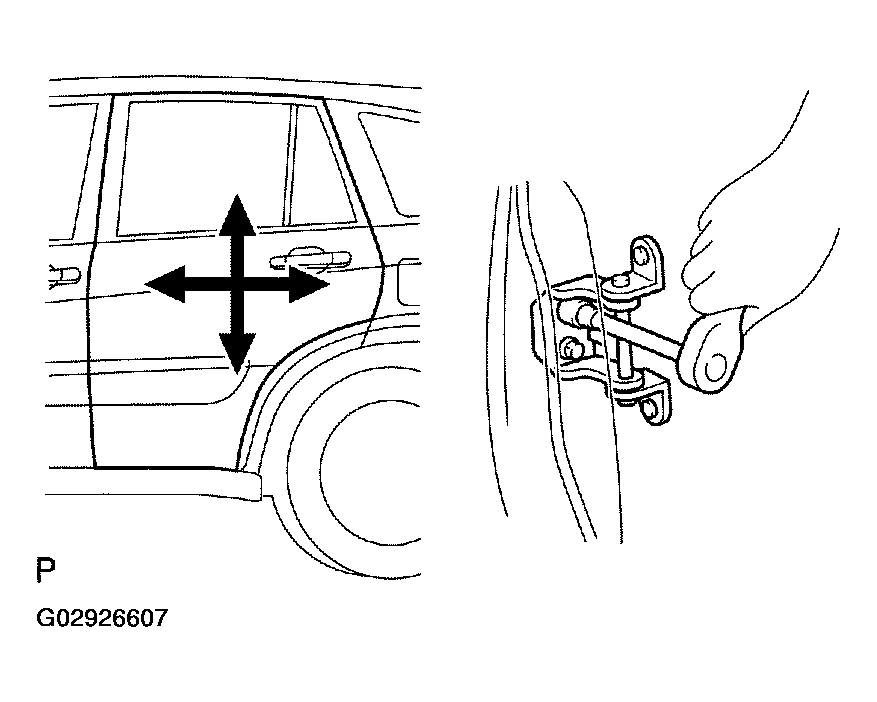

Fig 2: Adjusting Door Left/Right & Vertically By Loosening Door Side Hinge Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Substitute the standard bolt for the centering bolt (See ADJUSTMENT ).

Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)
ADJUST DOOR LOCK STRIKER
1. Check that the door fits and door lock linkages are adjusted correctly.
2. Loosen the striker mounting screws to adjust.
  Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
3. Using a plastic hammer, tap the striker to adjust it.

  Fig 3: Adjusting Door Lock Striker Using Plastic Hammer
