Shift Lever And Control Cable: Components

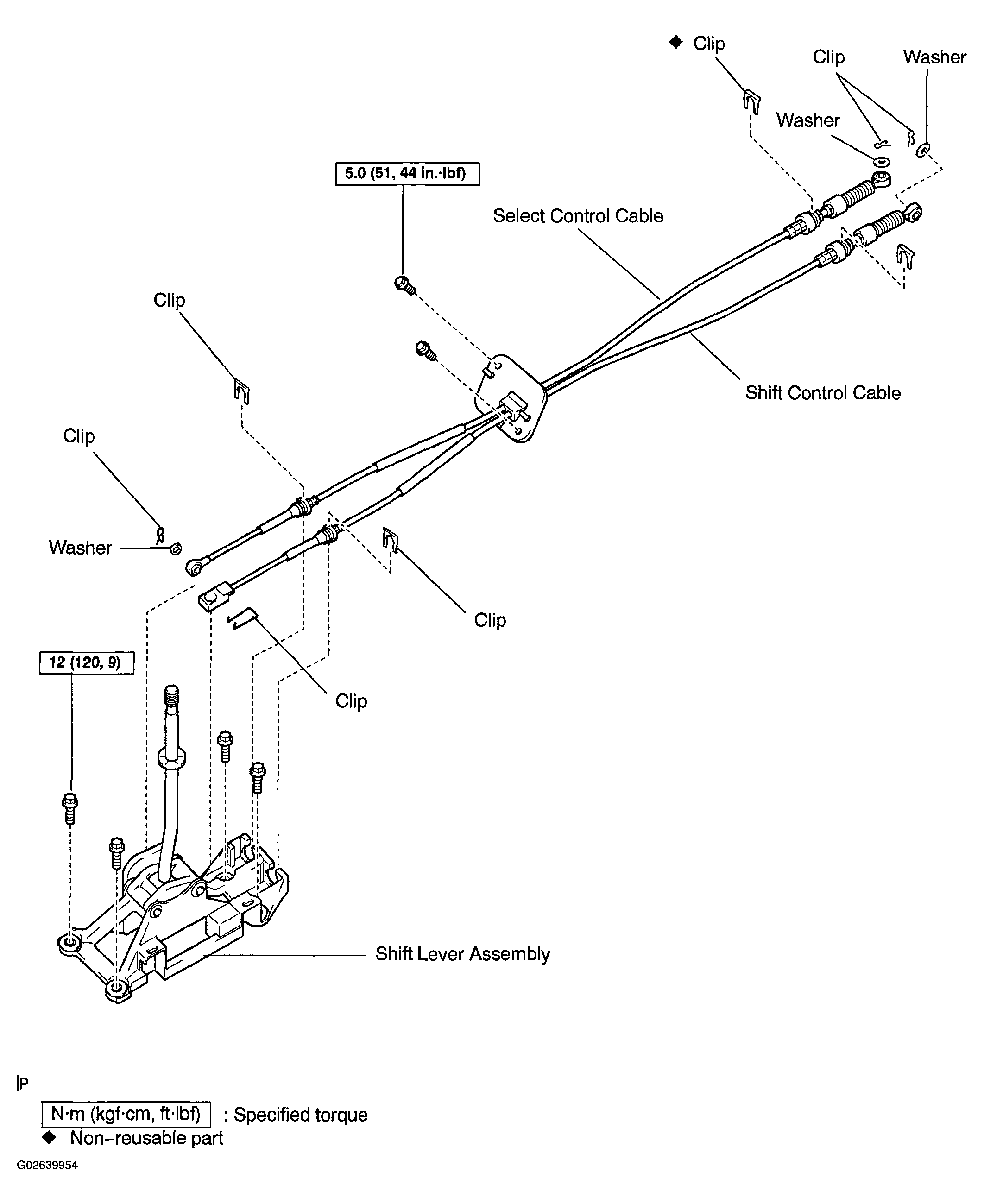

Fig 1: Exploded View Of Shift Lever And Control Cable (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Shift Lever And Control Cable (2 Of 2)
